Description

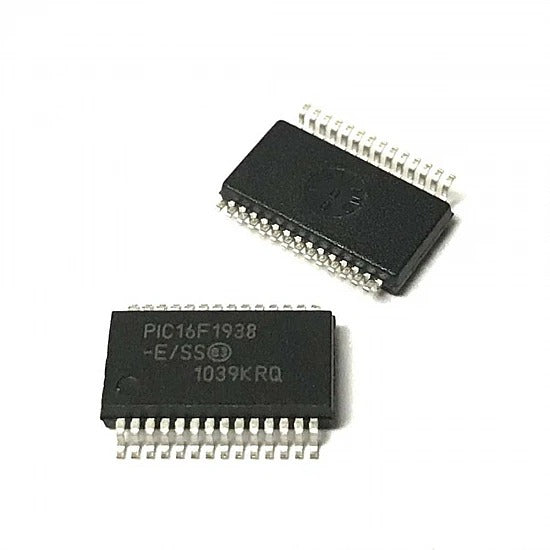

A genuine Microchip PIC16F1938 8-bit microcontroller, part of the enhanced mid-range PIC16 family, housed in a 28-pin SSOP (Shrink Small Outline Package). Features onboard Flash memory, EEPROM, and a rich peripheral set suited for general-purpose embedded control applications.

Key Features:

• Core: 8-bit PIC microcontroller (Enhanced Mid-Range Core)
• Package: 28-pin SSOP
• Marking: PIC16F1938-E/SS, Lot Code 1608V2A
• Flash Program Memory: Onboard (typically up to 28KB on this family)
• Data EEPROM: Onboard non-volatile memory
• Peripherals: Multiple I/O ports, ADC, comparators, timers, PWM, USART, I2C/SPI (MSSP)
• Operating Voltage Range: Wide voltage range typical of PIC16F19xx series (1.8V–5.5V)
• Temperature Grade: "-E" suffix = Extended temperature range (-40°C to +125°C)

Ideal For:

• General-purpose embedded control systems
• Sensor interfacing and data acquisition
• Motor control applications
• Consumer electronics
• Industrial automation
• Educational/hobbyist microcontroller projects

Package Includes:

• 1 x Microchip PIC16F1938-E/SS Microcontroller (SSOP-28)
