Description

A 20A, 650V Silicon Carbide (SiC) Schottky power diode housed in a rugged TO-247 (3-pin) package. SiC Schottky diodes offer major advantages over standard silicon diodes — including zero reverse recovery current, temperature-independent switching behavior, and high-frequency capability — making them ideal for high-efficiency power conversion designs.

Key Features:

• Forward Current (I_F): 20A
• Reverse Voltage (V_RRM): 650V
• Zero reverse recovery current — no switching losses from reverse recovery
• Positive temperature coefficient — easy to parallel for higher current designs
• High-temperature operation — typically rated up to 175°C junction temperature
• Unipolar device — purely capacitive turn-off behavior, no forward recovery
• Package: Through-hole TO-247 (3-pin)

Ideal For:

• Power Factor Correction (PFC) circuits
• Solar/PV inverters
• Uninterruptible Power Supplies (UPS)
• Motor drives
• EV and battery chargers
• High-frequency switch-mode power supplies (SMPS)

Package Includes:

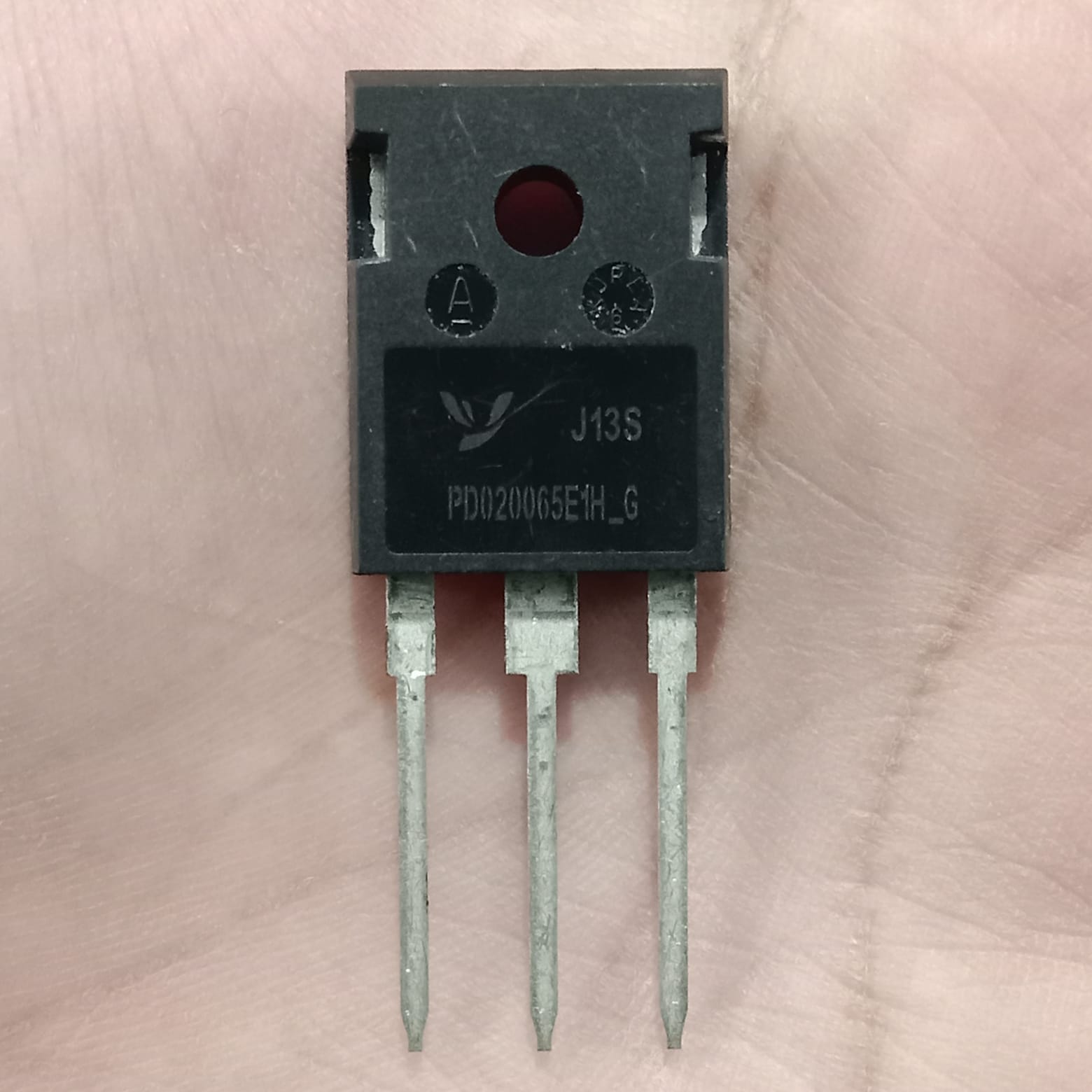

• 1 x PD020065E1H_G SiC Schottky Diode (TO-247)
