Part 2 Arduino Basics Kit For It Lab Punjab Government Eproc.punjab.gov.pk

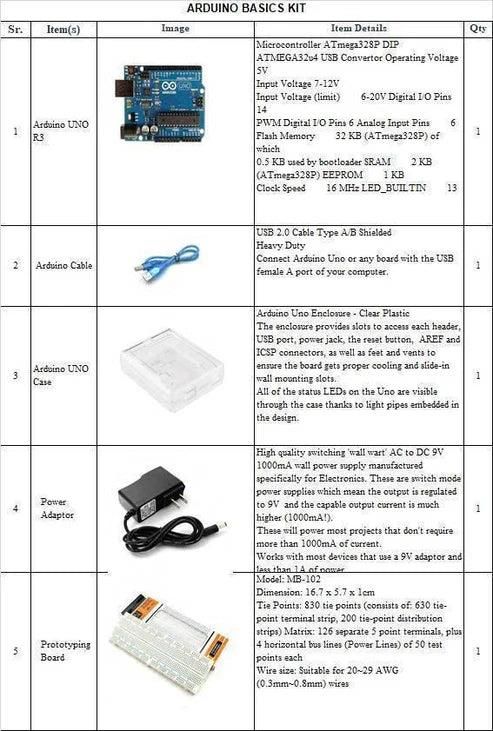

Here is a complete list of part 1 and part 2

============================================================

1. Arduino UNO R3

============================================================

Microcontroller ATmega328P DIP.

• ATMEGA32u4 USB Convertor

• Operating Voltage 5V

• Input Voltage 7-12V (limit 6-20V)

• Digital I/O Pins 14

• PWM Pins 6

• Analog Input Pins 6

• Flash 32KB (0.5KB bootloader)

• SRAM 2KB

• EEPROM 1KB

• Clock 16MHz

• LED_BUILTIN 13

============================================================

2. Arduino Cable

============================================================

USB 2.0 Cable Type A/B, Shielded, Heavy Duty. Connects Arduino Uno or any board to the USB female A port of your computer.

============================================================

3. Arduino UNO Case

============================================================

Arduino Uno Enclosure - Clear Plastic.

• Slots for each header, USB port, power jack, reset button, AREF and ICSP connectors; feet, vents and slide-in wall mounting slots

• Status LEDs visible via embedded light pipes

============================================================

4. Power Adaptor

============================================================

Switching 'wall wart' AC to DC 9V 1000mA wall power supply.

• Switch mode, regulated 9V output, up to 1000mA

• Powers most projects needing <1A; works with most devices using a 9V adaptor

============================================================

5. Prototyping Board

============================================================

Model: MB-102.

• Dimension: 16.7 x 5.7 x 1cm

• 830 tie points (630 terminal strip + 200 distribution strips)

• Matrix: 126 separate 5-point terminals + 4 horizontal bus lines of 50 points each

• Wire size: 20~29 AWG (0.3-0.8mm)

============================================================

6. LED Red 5mm

============================================================

5mm Diffused.

• 1.8-2.2VDC forward drop

• Max current 20mA

• Suggested current 16-18mA

• Luminous Intensity 150-200 mcd

============================================================

7. LED Green 5mm

============================================================

5mm Diffused.

• 1.8-2.2VDC forward drop

• Max current 20mA

• Suggested current 16-18mA

• Luminous Intensity 150-200 mcd

============================================================

8. LED Blue 5mm

============================================================

5mm Diffused.

• 1.8-2.2VDC forward drop

• Max current 20mA

• Suggested current 16-18mA

• Luminous Intensity 150-200 mcd

============================================================

9. Resistor 220R (10 Pcs Pack)

============================================================

220 Ohm Resistance, 10pcs pack.

• 1/4 Watt PTH

• Thick leads

• Tolerance: +/-5 ohms

============================================================

10. Resistor 1K (10 Pcs Pack)

============================================================

1 kilo Ohm Resistance, 10pcs pack.

• 1/4 Watt PTH

• Thick leads

• Tolerance: +/-5 ohms

============================================================

11. Resistor 10K (10 Pcs Pack)

============================================================

10 kilo Ohm Resistance, 10pcs pack.

• 1/4 Watt PTH

• Thick leads

• Tolerance: +/-5 ohms

============================================================

12. Jumper Wire: Male to Male Bundle 65 Pcs

============================================================

65 Pcs Pack.

• Lengths: 25cm x4, 20cm x4, 15cm x8, 10cm x49

• 0.1" male header contacts both ends, 2.54mm spacing

============================================================

13. Jumper Wire: Male to Female Strip 10 Pcs

============================================================

10 Pcs Pack.

• Length: 20cm

• 0.1" female header one end, male other end

• 2.54mm spacing

============================================================

14. Potentiometer 50k

============================================================

1x Rotary Potentiometer 50k Ohm, Logarithmic.

• 1x Mounting Nut, 1x Washer

• Taper: Linear/audio

• Tolerance +/-20%

• Power: Linear 0.2W

• Max Operating Voltage Linear 200V / Audio 150V

• Operating Temp -10 to +50C

============================================================

15. Active Buzzer

============================================================

Rated Voltage 6V DC.

• Operating 4-8V DC

• Rated current <30mA

• Sound: Continuous Beep

• Resonant Frequency ~2300 Hz

• Sealed package, breadboard and perf-board friendly

============================================================

16. 74HC595N

============================================================

8-Bit Serial-In, Parallel-Out Shift Register.

• Operating Voltage 2-6V

• High-current 3-state outputs, drives up to 15 LSTTL loads

• Low power 80uA max ICC

• tpd ~14ns

• +/-6mA output drive at 5V

• Direct clear

============================================================

17. IR Receiver Module

============================================================

KY-022 Infrared receiver module.

• Remote control distance >8m

• Infrared wavelength 940nm

• Crystal frequency 455KHz

• Carrier frequency 38KHz

• Encoding: NEC

• Size 86 x 40 x 6mm

• Power CR2025/1600mAH

============================================================

18. Flame Sensor

============================================================

A flame sensor module is an electronic device designed to detect the presence of fire or light sources. It uses an infrared (IR) photodiode to detect wavelengths in the 760 nm to 1100 nm range.

============================================================

19. Tilt Switch Module

============================================================

KY-017 Mercury switch sensor.

• A tilt switch that can turn on and off depending on the tilt position

• The switch is mercury

• It can be used as a tilt or vibration sensor

============================================================

20. LDR 5mm

============================================================

Light Dependant Resistor, Diameter 5mm, 2 pins.

• PCB Through Hole

• Max Operating Temp +80C (approx)

• Dark resistance 1-20M ohm

• Voltage 100V peak

• Current 5mA

• Operating temp -25C to +75C

============================================================

21. Button Switch with Cap

============================================================

With Button Cap.

• Dimensions 12mm

• Rating 50mA @ 12VDC

• Operating Force 160+/-50 gms

• Travel 0.35mm +/-0.1

• Contact Resistance 100 mOhms

• Life 200,000 cycles

• Insulation Resistance 100M ohms min

• Dielectric Strength 250VAC

• RoHS compliant

============================================================

22. 1X IR Remote Control

============================================================

Remote control distance >8m.

• Infrared wavelength 940nm

• Crystal 455KHz

• IR carrier 38KHz

• Encoding NEC (uPD6122, user code 00FF)

• Size 86 x 40 x 6mm

• Power CR2025/160mAH

• Button life >200,000 presses

============================================================

23. Four Digital Tube Common Anode

============================================================

4-digit 7-segment display, red. One decimal point per digit.

• controllable apostrophe and colon. Forward voltage 2.1VDC, max forward current 20mA. 16 through-hole pins. Overall 40.18 x 12.8mm

• digit height 10mm

============================================================

24. One Digital Tube Common Anode

============================================================

1-digit 7-segment display, red.

• One decimal point per digit; controllable apostrophe and colon

• Forward voltage 2.1VDC, max forward current 20mA

• 8 pin

============================================================

25. 5V Stepper Motor with ULN2003 Driver Module

============================================================

28BYJ-48 with ULN2003 Driver Module.

• 64 steps per rotation (5.625 deg/step)

• Diameter 28mm, Length 274mm

• Shaft 5mm dia x 8mm

• Mounting hole distance 32mm c-c, hole dia 4mm

============================================================

26. Servo MG90S

============================================================

Metal gear.

• Max Rotation 0-180 deg

• Weight 13.4g

• Dimension 22.8 x 12.2 x 28.5mm

• Stall torque 1.8kg/cm (4.8V), 2.2kg/cm (6.6V)

• Speed 0.10s/60deg (4.8V)

• Operating 4.8V, temp 0-55C

• Wire 25cm, JR plug

• Includes 3 arms + 3 screws

============================================================

27. LCD1602 IIC I2C

============================================================

16x2 Blue, Backlight.

• Soldered I2C breakout module

• STN Negative Blue, white characters

• I2C-Bus interface (up to 8 devices on same bus with different address)

• Supply 5V

• Adjustable contrast

• Size 80 x 36 x 20mm

============================================================

28. DHT11 Temperature & Humidity Sensor

============================================================

KY-015.

• Operating 3.5-5.5V

• Operating current 0.3mA (measuring), 60uA (standby)

• Serial data output

• Temp range 0-50C, Humidity 20-90%

• Resolution 16-bit each

• Accuracy +/-1C and +/-1%

============================================================

29. Water Level Measurement Module

============================================================

Water sensor brick for detecting rainfall, water level and liquid leakage. Comprises an electronic brick connector, a 1M resistor and several lines of bare conducting wires.

============================================================

30. RFID Module MFRC-522

============================================================

RFID Card Inductive Module with Key Chain. Current 13-26mA @ 3.3V.

• idle 10-13mA

• sleep <80uA

• peak <30mA. Frequency 13.56MHz. Cards: S50, S70, UltraLight, Pro, Desfire. Size 40 x 60mm. Op temp -20 to 80C. Data rate max 10Mbit/s. Includes module, blank S50 card, S50 keychain card, straight pin row

============================================================

31. Sound Module

============================================================

KY-037 High Sensitivity microphone sound sensor module.

• 3mm mounting screw hole

• 5V DC supply

• Analog output, threshold-level digital output

• High sensitive microphone

• Power indicator and comparator output LEDs

============================================================

32. Single Channel Relay Module

============================================================

5V Relay interface board.

• High-current relay AC250V 10A / DC30V 10A

• Standard interface controllable directly by Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic

• On-board LED indicator

============================================================

33. RTC Module

============================================================

DS1302 RTC.

• PCB 42 x 24 x 12mm (max), green, 4 holes ~3.1mm dia

• CR2032 battery 3V 260mAh (non-rechargeable)

• Crystal 32.768KHz, 6pF

• 8-pin DIP chip in IC block for easy replacement

• Operating voltage 3.3V/5V

• Operating temp 0-70C

• Do not reverse VCC/GND

============================================================

34. 4x4 Matrix Keyboard

============================================================

4x4 Keypad with 16 push buttons arranged as 4x4. High quality PCB with on-board 16 push buttons.

============================================================

35. RGB Three Color Module

============================================================

KY-016 5mm RGB crystal LED.

• Full-colour plug-in LED via R, G, B pins; PWM voltage input adjusts the three primary colours for full colour mixing

• Trichromatic limiting resistors prevent burnout

• Working voltage 5V

• Common cathode driver

============================================================

36. Power Supply Module MB-102

============================================================

Breadboard Power Supply Module.

• Outputs 5V and 3.3V

• Fits standard breadboards

• Input 6.5-12V DC or 5V USB

• Output 3.3V/5V switchable

• Max output current <700mA

• On/off switch, independent rail control, 2x4 header, USB connector, barrel connector, selection jumpers

============================================================

37. DC Motor with Fan / Wires

============================================================

Standard DC Motor with soldered connectors.

• Operating temp -10 to +60C

• Rated 6.0VDC

• Rated load 10 g.cm

• No-load current 70mA max, speed 9100 rpm

• Loaded current 250mA max, speed 4500 rpm

• Starting torque 20 g.cm

• Stall current 500mA max

• Body 27.5 x 20 x 15mm

• Shaft 8mm x 2mm

• Weight 17.5g

============================================================

38. PIR Sensor

============================================================

HC-SR501 Passive Infra-Red motion sensor.

• Operating voltage DC 4.5-20V

• Quiescent current <50uA

• Output High 3.3V / Low 0V

• Repeatable/non-repeatable trigger

• Delay 5-200s adjustable

• Block time 2.5s default

• Board 32 x 24mm

• Sensing angle <100deg cone

• Op temp -15 to +70C
