⚡ P52 High Voltage 220V AC Float Switch for Industrial Liquid Level Control

The P52 High Voltage 220V AC Float Switch is a heavy-duty liquid level control device designed for reliable operation in industrial and commercial applications. Built to handle high-voltage AC systems, this float switch uses a robust mechanical switching mechanism to accurately detect liquid levels in tanks, sumps, and containers — without the need for external power. 💧

Constructed using durable polypropylene (PP), the P52 offers excellent resistance to corrosion, chemicals, and harsh environments. Its larger float design and strong contact rating make it ideal for controlling pumps, motors, alarms, and other electrical equipment in demanding industrial liquid management systems. 🏭

🔧 Technical Specifications

• Switch Type: Mechanical Float Level Switch
• Rated Voltage: 220V AC
• Maximum Switching Voltage: 220V AC / DC
• Maximum Switching Current: 0.5A
• Maximum Load Current: 1.0A
• Contact Rating: 10W
• Contact Resistance: ≤ 100 mΩ
• Operating Temperature: -10°C to +60°C

✅ Key Features

• ⚡ Designed for high-voltage 220V AC applications
• 🏋️ Heavy-duty float for industrial liquid level control
• 🔌 Mechanical operation — no external power required
• 🔒 High reliability and long service life
• 🧪 Corrosion-resistant polypropylene (PP) construction
• 🎯 Stable and accurate liquid level detection
• 🔄 Suitable for continuous industrial operation

🏭 Applications

• Industrial water tank level control
• Pump and motor automation systems
• Water treatment and effluent systems
• Cooling towers and boilers
• Chemical and process industries
• Overflow and dry-run protection systems

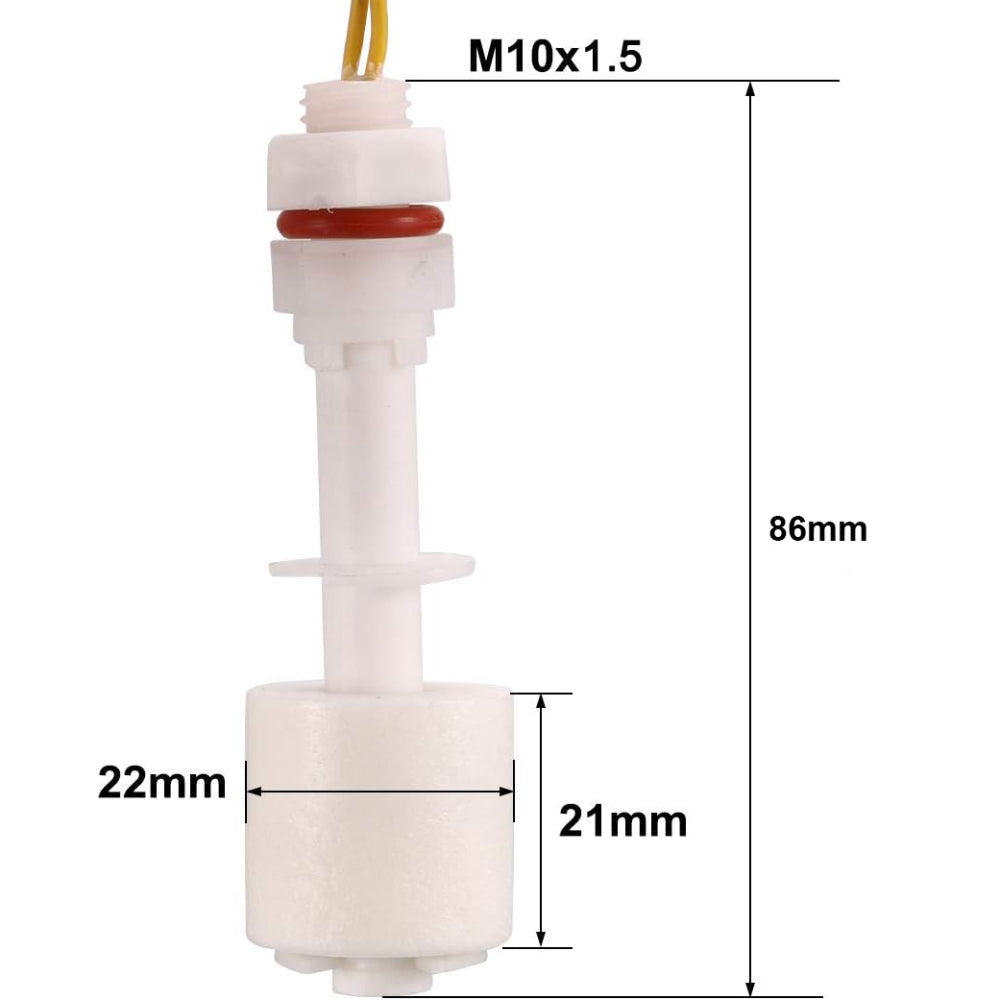

📐 Physical Attributes

• Float Body Material: Polypropylene (PP)
• Float Ball Material: Polypropylene (PP)
• Total Length: 86 mm
• Cable Length: 37 cm
• Weight: 15 g
• Colour: White

📦 Package Includes

• 1 × P52 High Voltage 220V AC Float Switch
