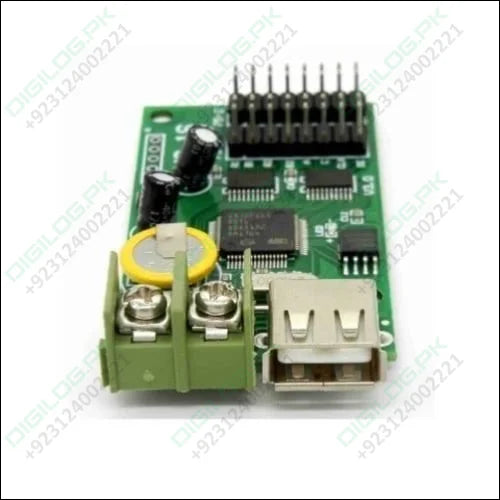

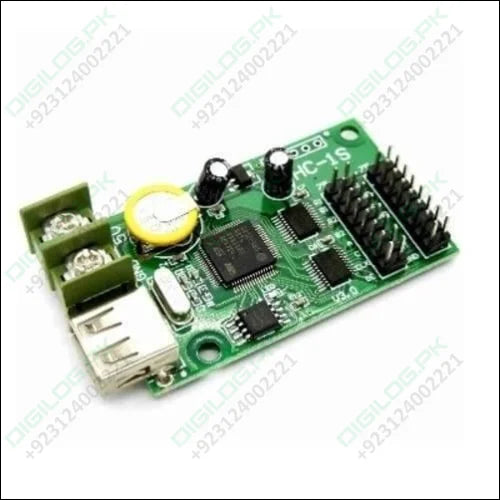

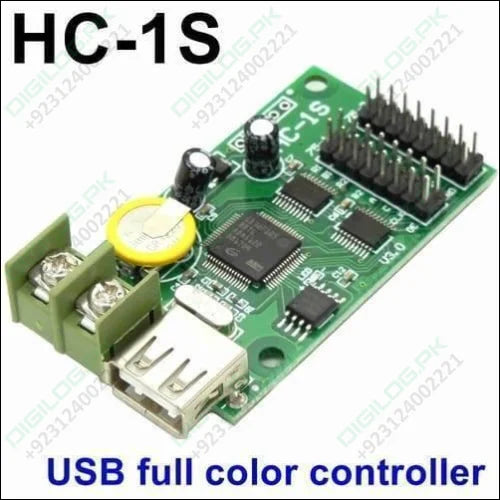

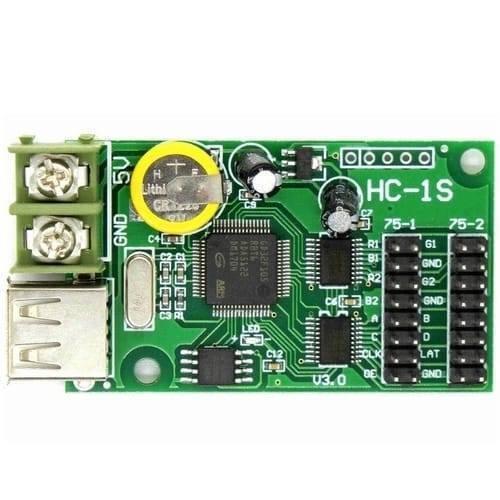

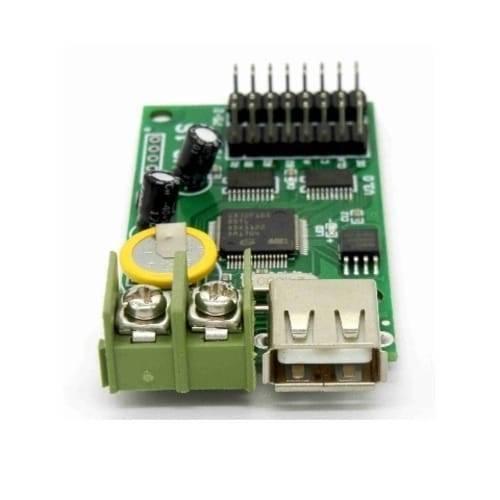

P10 Rgb Controller Hc-1s Full Color Rgb Led Control Card With 2*hub75b Port

P10 Rgb Controller Hc-1s Full Color Rgb Led Control Card With 2*hub75b Port

Regular price Rs 1,900
Regular price Sale price Rs 1,900
Sale Sold out
Shipping calculated at checkout.

SKU:

NOTIFY ME WHEN IN STOCK

P10 Controller is a smart and intelligent card with a U disk update program.U-Disk Controller card can support a variety of special effects in the background, magic frame/ordinary text effects/dynamic text effects, and support full time playing regularly. The HC-1S LED matrix controller cards are for use with LED panels using the HUB-75B signal/pin configuration. LED Display Controller can support P3,p4,p5,p6,p10 etc. full color modules

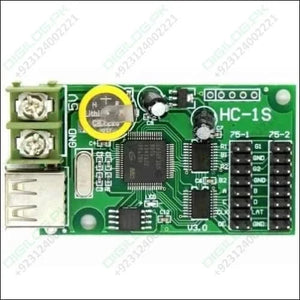

P10 Rgb Controller Hc-1s Full Color Led Control Card

Features Of U disk asynchronous led controller Card HC-1S:

  • U disk update program, U disk set screen parameters, LED display asynchronous control card
  • Full color control pixels:max 832*32,416*64,544*48 pixel
  • Interface: 2xhub75B, through transfer plate, can be transferred to 4*hub40A and 8*hub08 port
  • Grayscale:16 levels
  • Play mode: support taking turns to show an image, support 99 showing effect
  • Time:  digital clock/analog clock/timer/lunar/solar terms
  • Test button: support (used to do the test card)
  • Content support: text/subtitle/picture/animation/time/dial/timing/ SWF and GIF animation
  • With text, images animation effects, choose to use, easy to operate
  • GIF animation smoothly play, dynamic effect, compelling
  • Brightness adjustment: multistage brightness is optional
  • Background effect: support for a variety of special effects in the background
  • magic frame/ordinary text effects/dynamic text effects
  • support full time playing regularly

Specifications Of Full-Color Window LED Display LED Display Card HC-1S :

  1. Working voltage: DC3.8V~DC 5.5V
  2. Temperature Range: -20 degree~80 degree
  3. Power Consumption: <0.5W
  4. Display Function: Animation
  5. Model Number: HC-1S
  6. Pixels: max 832*32,416*64,544*48 pixel
  7. Scan type: Support 1/16,1/8,1/4,1/2,static
  8. Communication: USB-disk
  9. Application:  can support P3,p4,p5,p6,p10,p13.33,p16,p20 etc. full color modules

Package Include:

  • 1x Full color LED Display WIFI Controller HC-1W

Best online shopping website for  Full Color RGB LED Display Control Card HC-1S P10 RGB Controller With 2*hub75b Port in cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Rawalpindi Peshawar and all over Pakistan
