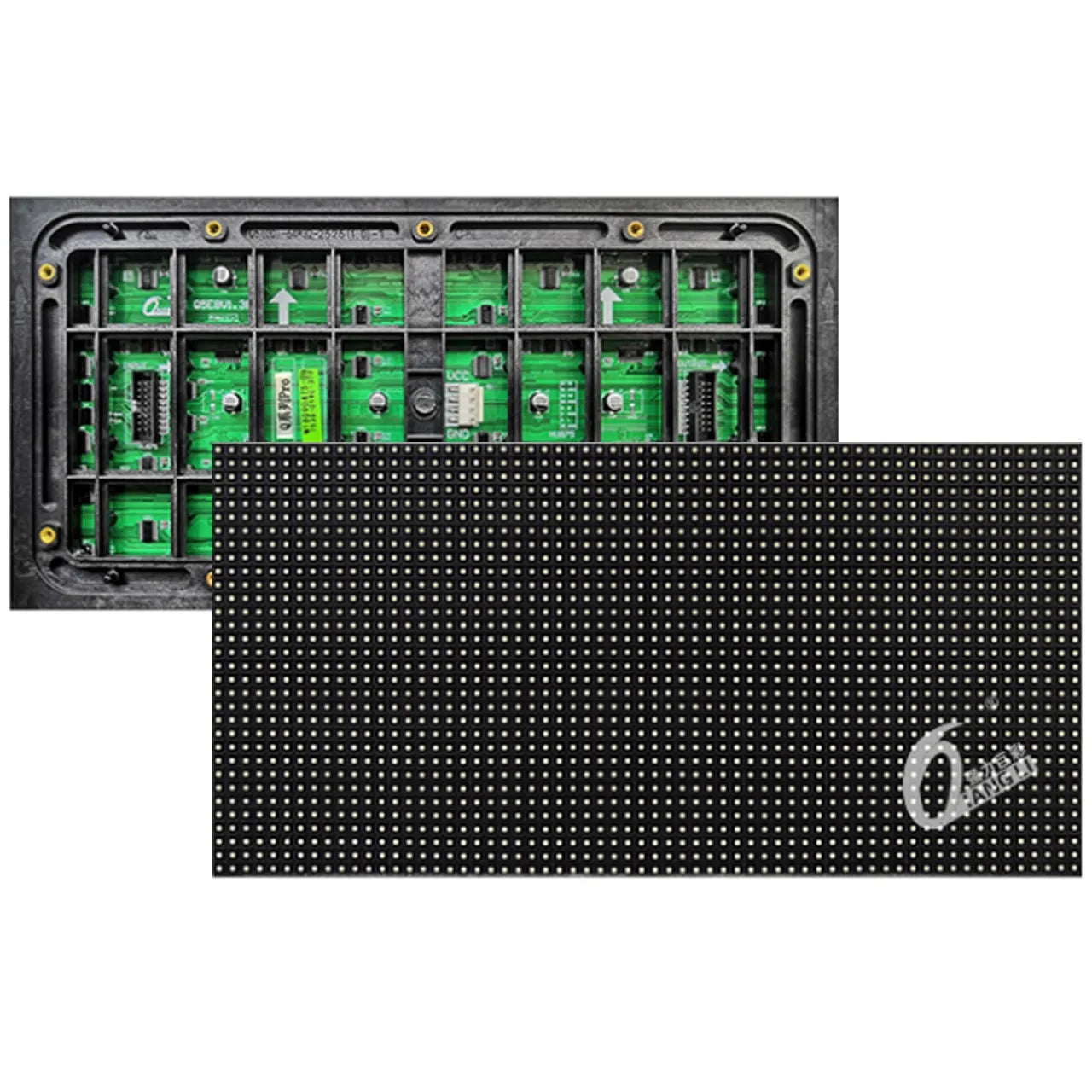

Outdoor P5 LED Display Module

Buy a complete range of single, double, and full-color RGB indoor & outdoor modules/panels to make your own SMD advertising screen with Outdoor P5 LED Display Module, scrolling board, or ticker at a very reasonable price and start your own business. We are the only store in Pakistan providing our customers with a wide range of SMD screens, tickers, and their parts at very reasonable prices. You can buy single and full-color SMD & DIP modules/panels anywhere from Pakistan online or by

Features of Outdoor P5 LED Module

• Pixel Pitch: 5 mm
• Module Size: 320*160 mm
• Resolution: 64*32 dots
• LED: SMD2525
• Brightness: 5000nits
• Max Current: 9.85 A
• Pixel Density: 40,000dots/
• Refresh Rate: 960Hz
• Port: HUB75

1.Outdoor Q8-E is popular outdoor products, we suggest to go with 960*960 outdoor iron cabinet.
2.All outdoor Q-E modules use HUB75
3.Temperature requirement:

• 1)Storage temperature range: -10 C 30 C, over 30 C needs to do cooling treatment.
• 2)Lamp surface temperature (working time): 85C, temperature control equipment is required to be installed when temperature exceeding the standard

4.Metal components of the screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.
5.Its not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

• Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.
• The magnetic installation method cannot guarantee the flatness and the performance of the LED screen.
• Module is likely to deform under extremely cold weather.

6. The module cannot be directly connected to 220V, and the modules positive and negative poles connection must be right.
7.When the display screen is not in use for a long time, it is necessary to reduce the brightness of the whole screen by 50% in advance and play it for 12 hours, and preheat it for dehumidification 12H to avoid damaging the light tube after the LED screen is damped.
8. Before the maintenance of the display, it is necessary to turn off the main power of the screen before the operation.

Overview of a single color and full-color RGB modules

These modules can be used for signage, store, outdoor/indoor advertising, SMD screens, pole signs, digital billboard, and other information displays. These are cost-effective long-lasting and operated by a simple controller with their user-friendly computer and mobile software that can be downloaded freely from our website. Display messages videos and images quickly and efficiently, flashier, scrolling, 3D messages, grab a customers attention on each message, variety of different colors, resolution, sizes, pixel, brands, run different images/videos messages in succession much more.

Advantages of TLT-SMD Screen and Tickers

In this fast-paced world where every company or organization wants to save time and money for their advertisement, our TLT SMD Screens and tickers are the best solution for them. Our advanced digital TLT SMD screens and ticker with the capability of changing videos or messaging ads within no time through your mobile phone or laptop from anywhere using wired or wireless communication depending on the control card function. Our TLT SMD Screens are replacing old-fashioned Pana-flex boards rapidly.

Why & Where

Our large TLT SMD indoor/outdoor SMD screens can be spectacular, particularly at night. When our TLT SMD screens are implemented correctly, they would even become a landmark. The public can see large TLT SMD screens from long distances in all types of lighting conditions. Our TLT SMD Screens are widely used in outdoor/indoor advertising, cultural and recreational activities, stadium and stage background, etc. You can have look at some of our indoor & outdoor screens at the projects tab on our website.

Future of TLT SMD Screens and Tickers

The competition of the advertising on roads will be the competition of customer value, brand value, customer management, and professional quality. Recently internationally famous companies like Coke, PEPSI, Mcdonald, KFC, clothing brands, real states, and many other businesses are promoting their products and services on indoor and outdoor advertising SMD screens just to grab the attention of the customers by taking advantages of the SMD Screen’s vividness and eye-catching capability.

With the rapid growth in LED technology, the cost of our TLT SMD screens and their parts has also declined significantly, which undoubtedly promotes the application of SMD screens for low cost and user-friendly advertising. Our TLT SMD screen rates are negotiated on a case-by-case basis. We usually offer a 15-20% price less than the going market rates, which is achieved without compromise.
