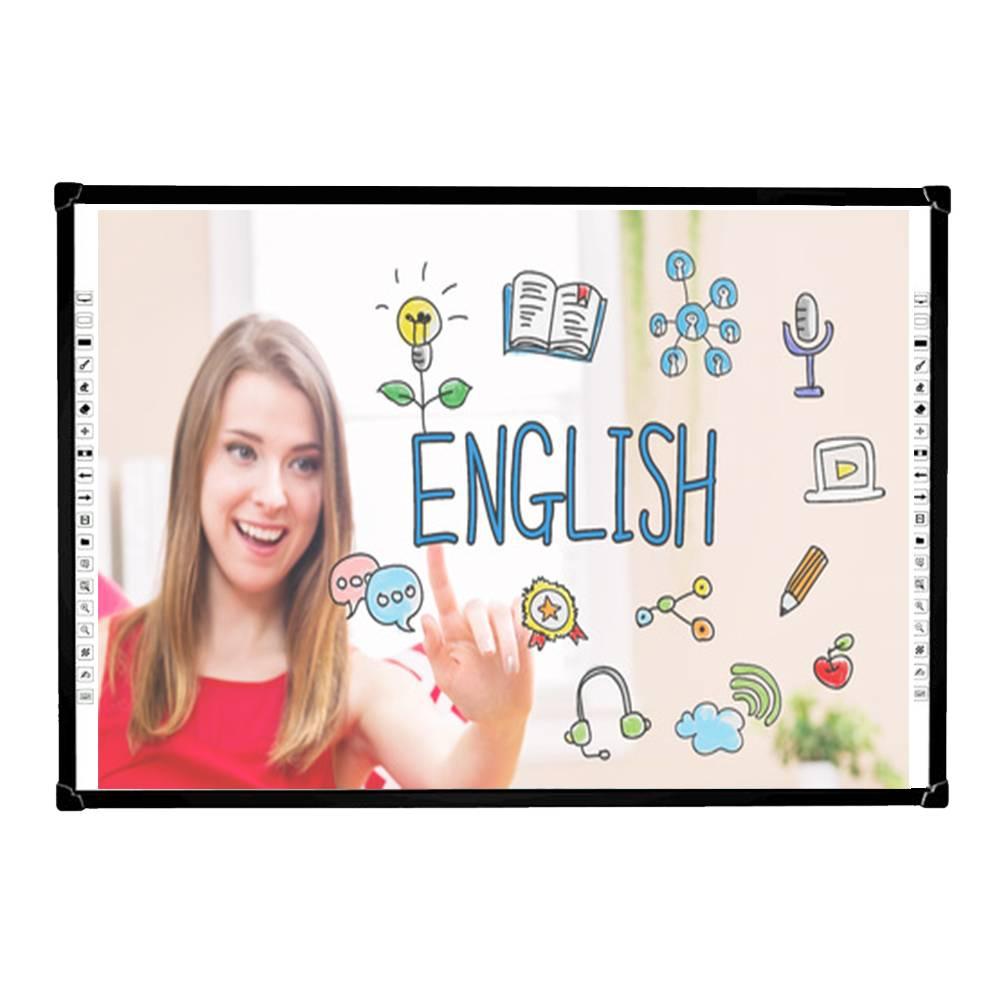

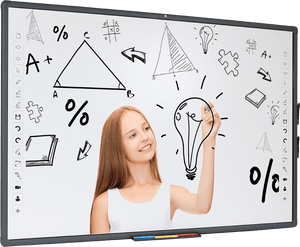

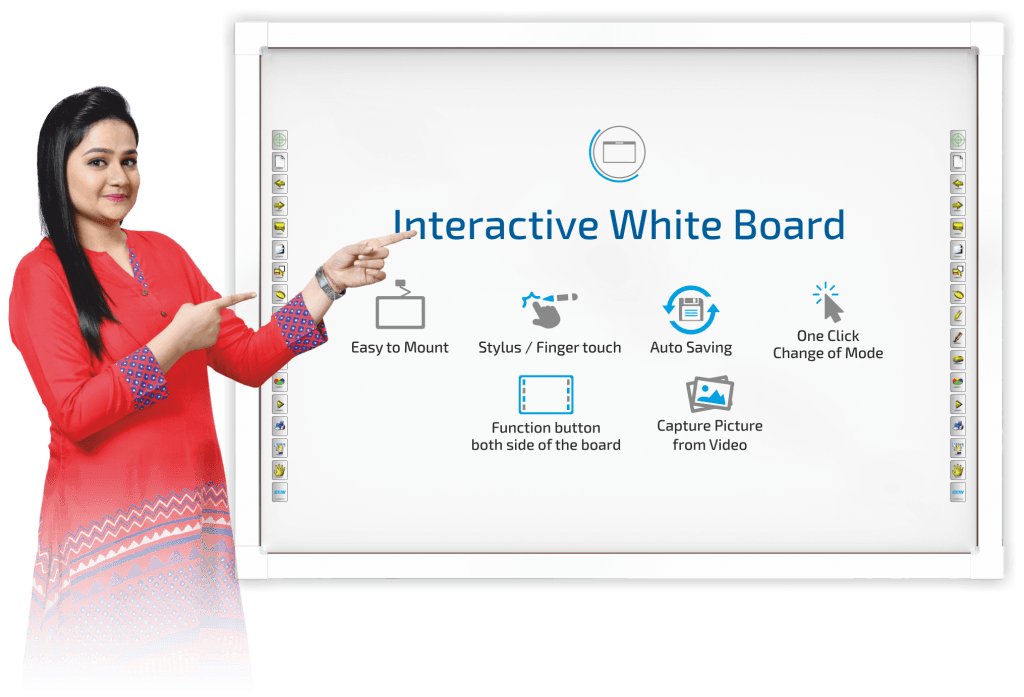

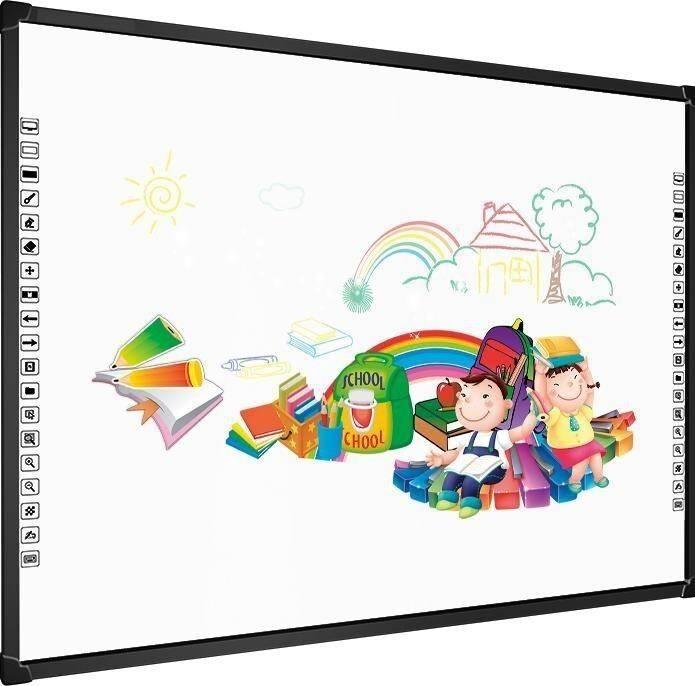

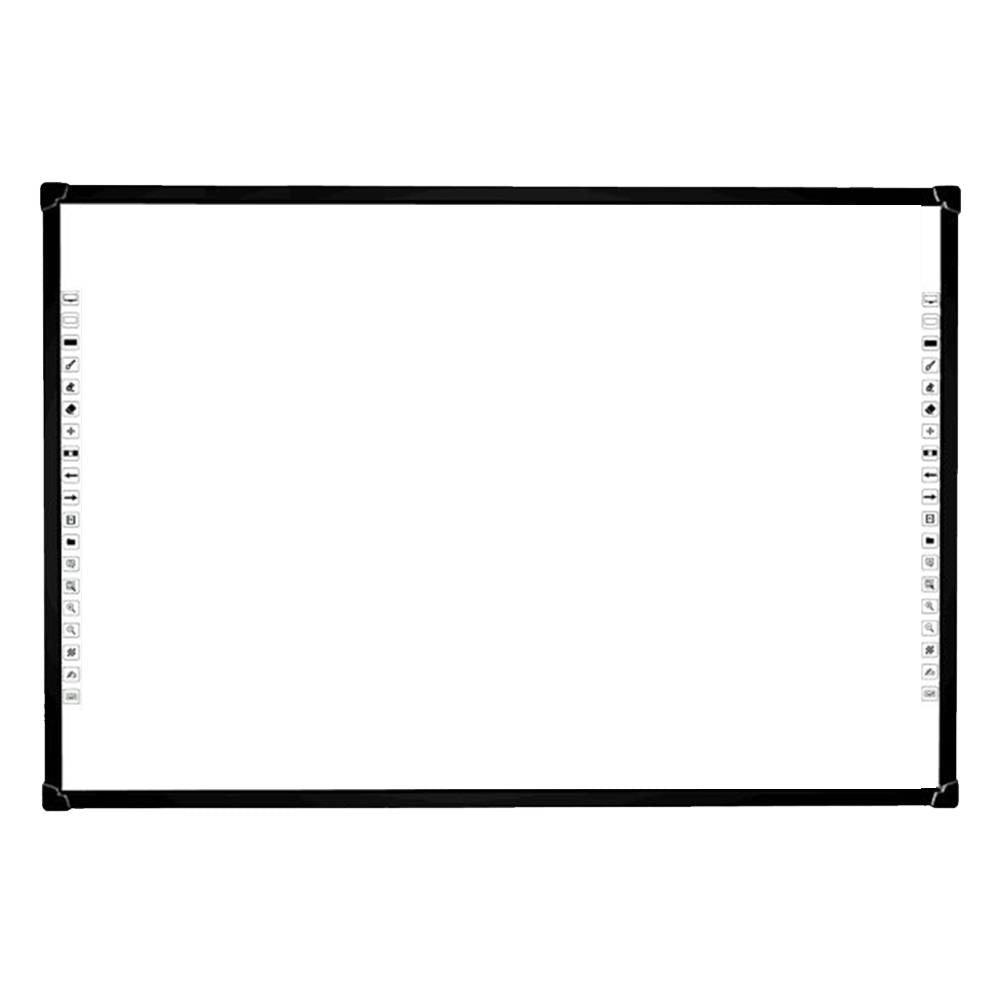

Optiview Interactive Whiteboard Touchable Display 82 Inch Size Working With Projector Opv-wb82 In Pakistan

Optiview Interactive Whiteboard Touchable Display 82 Inch Size Working With Projector Opv-wb82 In Pakistan

Regular price Rs 90,000
Regular price Sale price Rs 90,000
Sale Sold out
Shipping calculated at checkout.

SKU:L10,Th5

NOTIFY ME WHEN IN STOCK

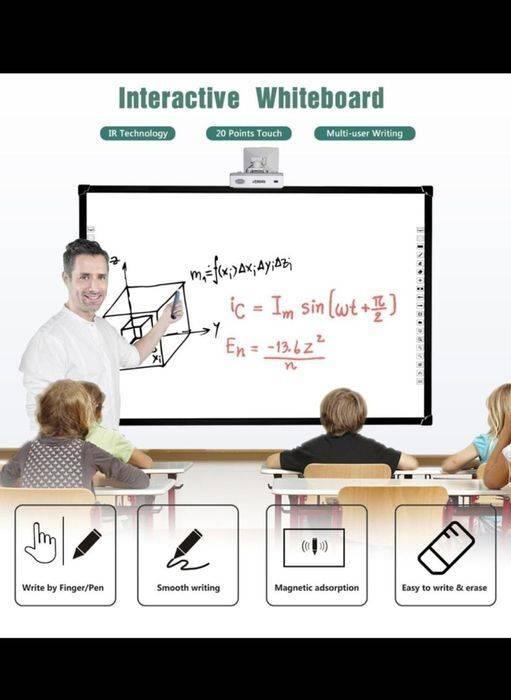

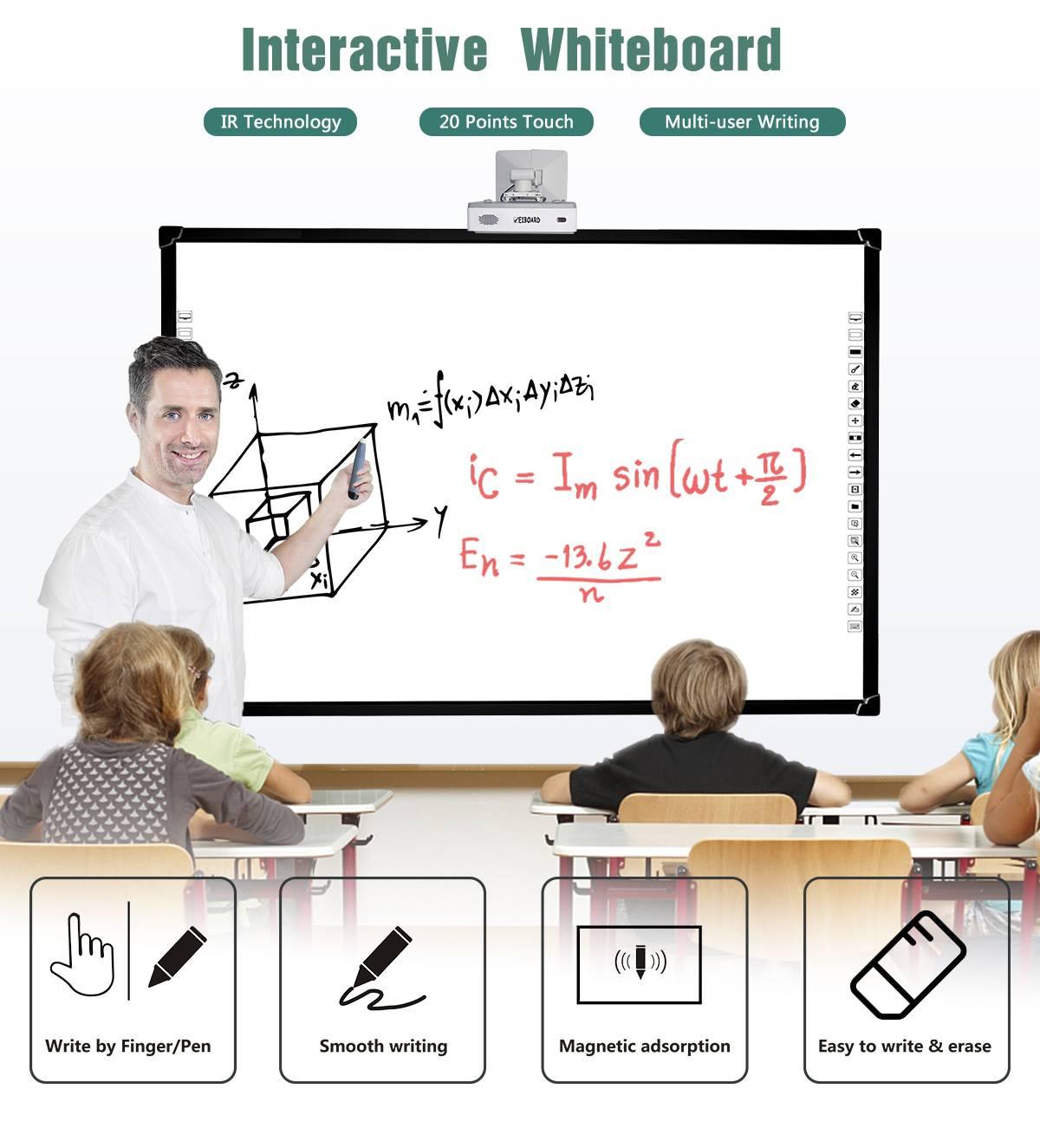

Optiview interactive whiteboard is a large touchable display working with a projector and computer, any projected image in the whiteboard can be operated by pens or fingers directly.

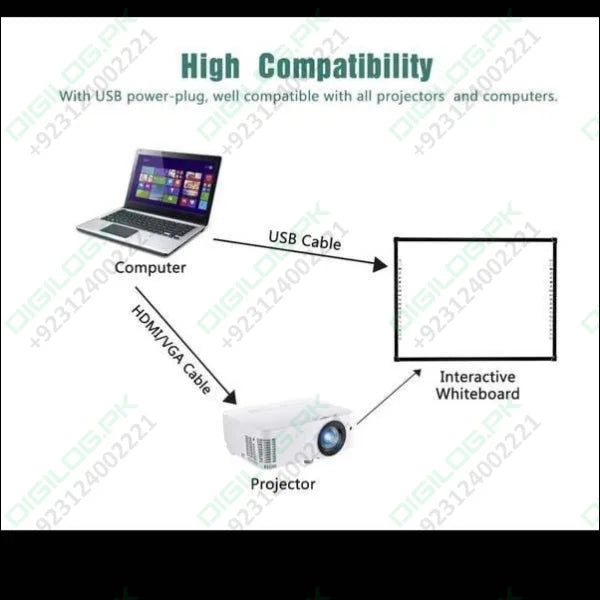

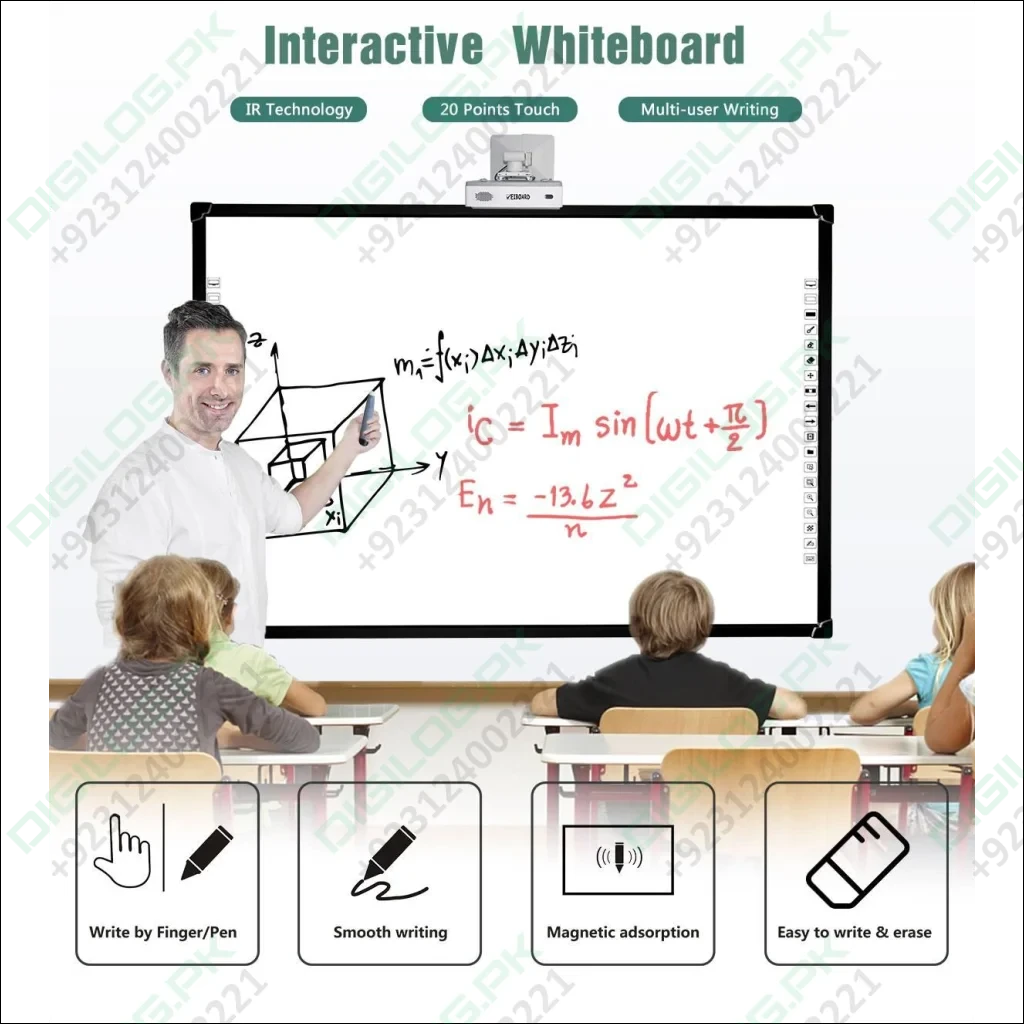

EIBOARD Interactive Whiteboard is large touchable display, working with collaboration of a projector and an external computer connected. In terms of basic solution architecture, Interactive Whiteboard enables the multi-touch function when connected to the external computer and the projector projects the computer screen on the interactive whiteboard. Calibration software is installed to the computer to calibrate the touch function of the interactive whiteboard. In addition, an interactive teaching software is also installed to the computer for interactive teaching. This software facilitates teachers to plan the lesson, general teaching, lesson recording and many more features.

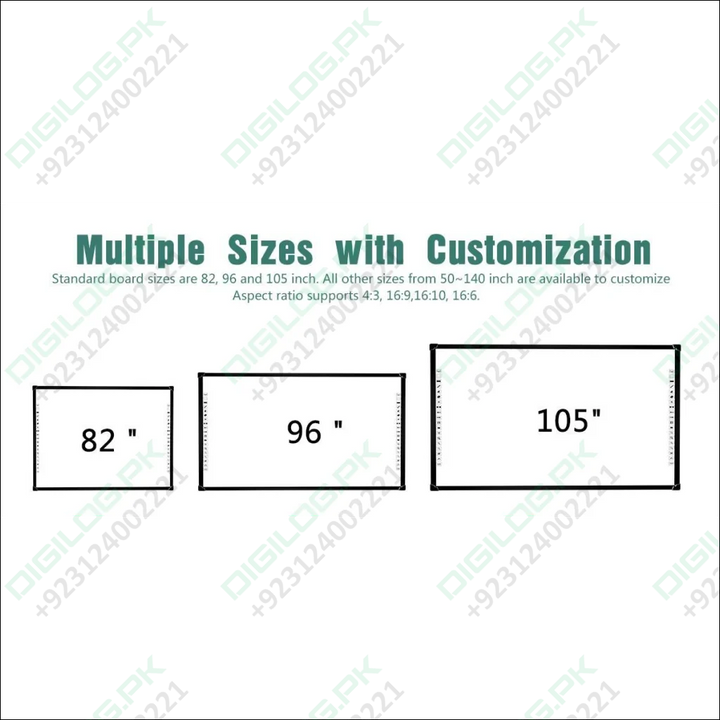

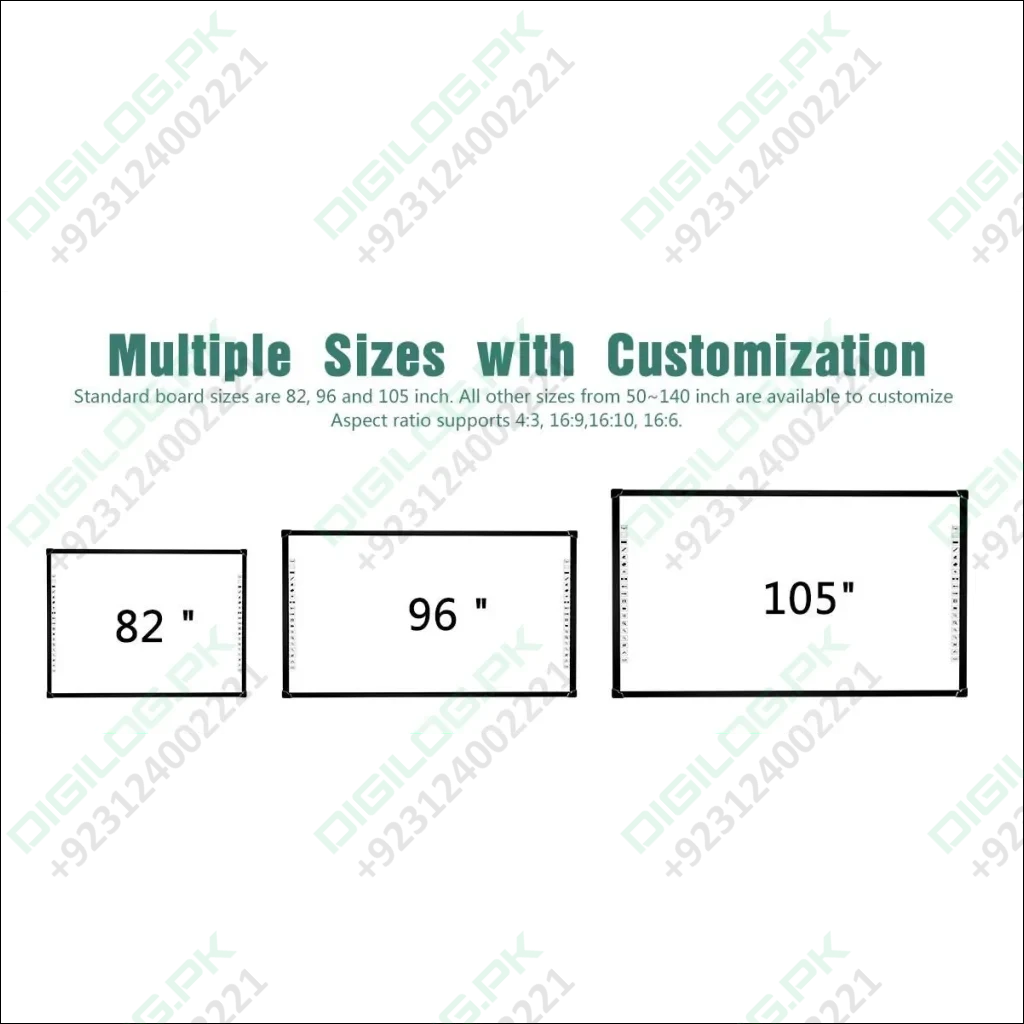

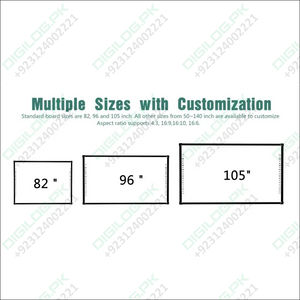

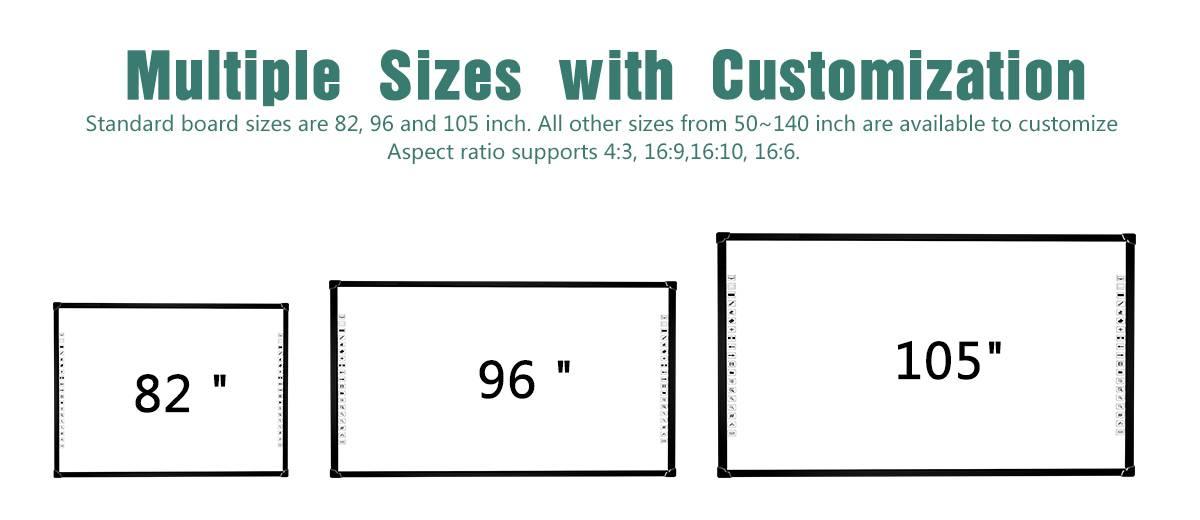

EIBOARD Interactive whiteboards are coming in different sizes, which are 82”, 96” and 105”. In terms of the projector, the interactive whiteboard works with almost any customer projector despite whether the projector is high end or low end.

EIBOARD Interactive whiteboards features as below make the teaching and presentation attractive and more effective.

* Easy Installation and Connection
* Multi-Touch Writing Board with Teaching software included
* Ceramic Surface as optional for dry erasable pens
* Durable Magnetic surface, Resistance to damage
* Multiple Whiteboard size and Aspect Ratio optional
* Shortcut toolbars for Convenient Presentation and Annotation

Technical Parameters

Product Interactive Whiteboard
Specifications Technology Infrared
Input writing by Pen, finger, or any opaque objects
Multi touch 20 points touch
Resolution 32768×32768pixels
Response time <6ms
Cursor speed 200”/ms
Accuracy 0.05mm
View angle Horizontal 178°, vertical 178°
Power consumption ≤1W

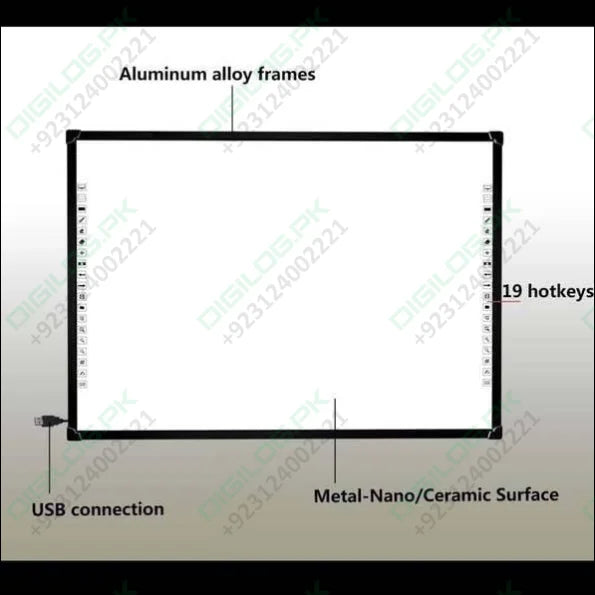

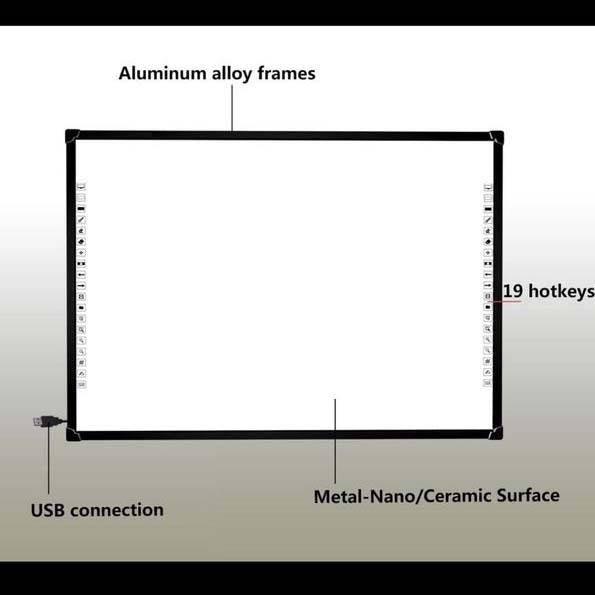

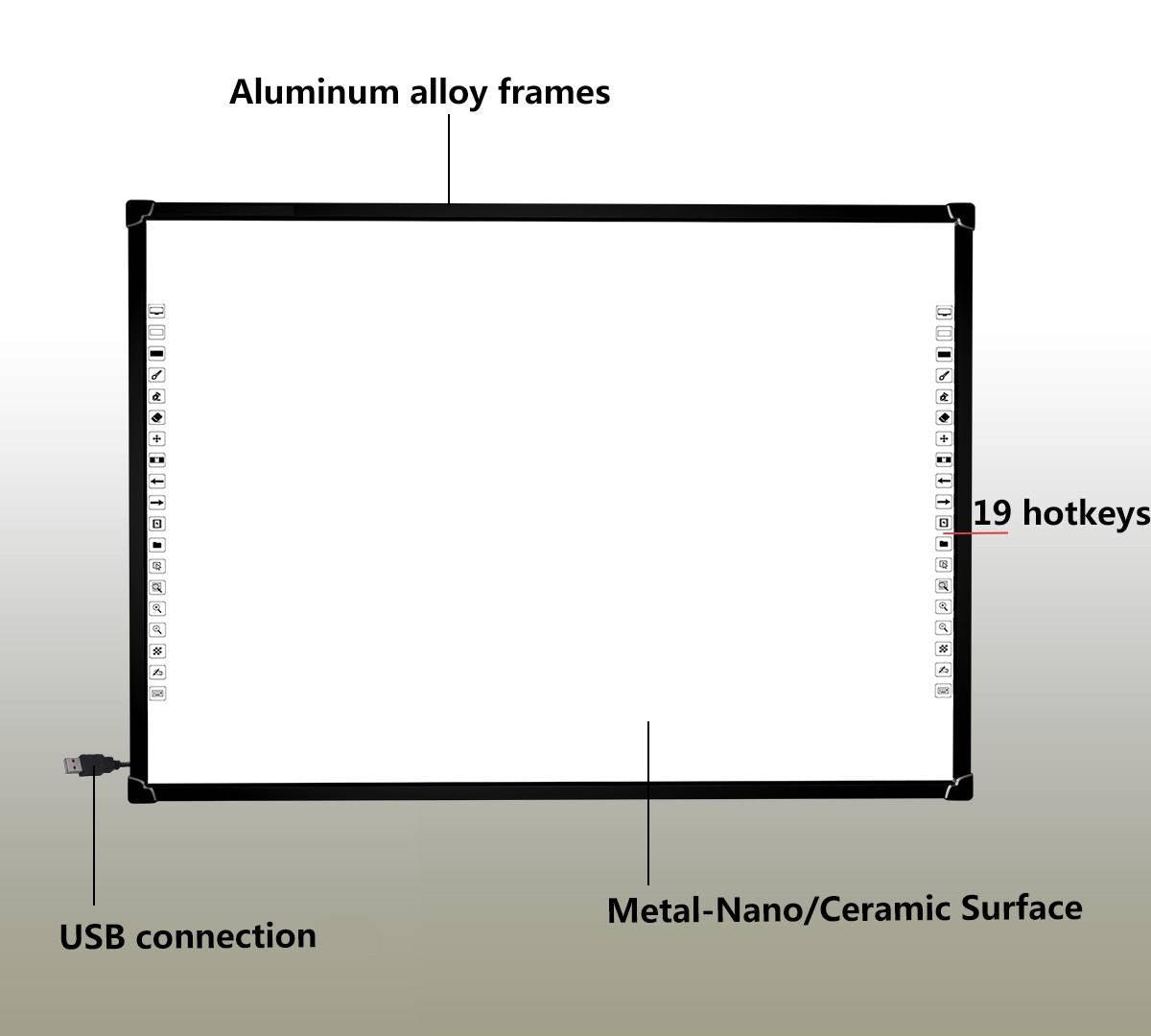

Board material XPS

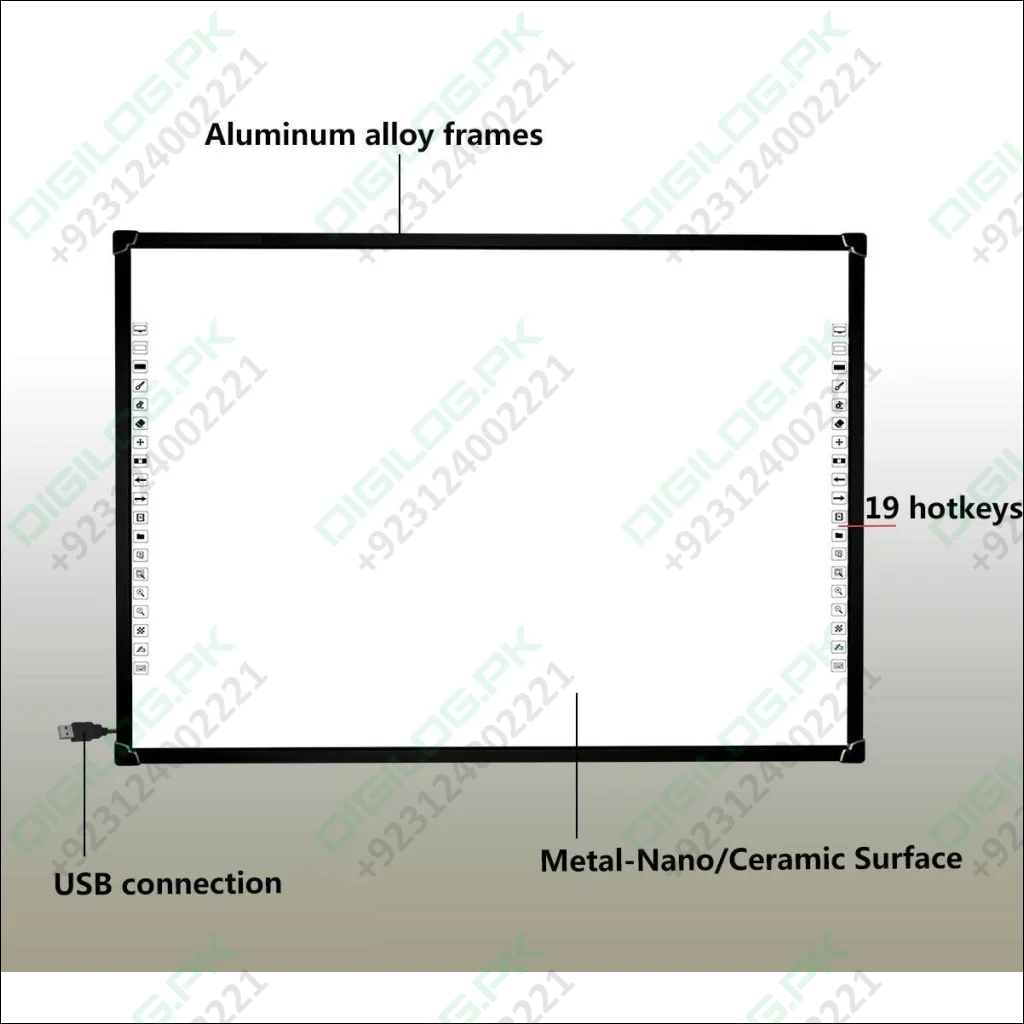

Board surface Metal Nano (Ceramic is optional)
Physical hot keys 19*2
Frame type Aluminum alloy frame
Operation system Windows
Power supply USB2.0/3.0
Operation temperature (C) -20℃~65℃
Operation humidity (%) 0%~ 85%
Storage temperature -40℃~80℃
Storage humidity 0%~ 95%
Accessories 5M USB Cable*1,wall-mount bracket*4, pen*2 , software CD*1 ,QC and warranty cards*1, install manual card*1

Software Features

Software Features
•Multifunctional tools for all subjects ,writing,editing,drawing,zooming etc.
• Virtual Keyboard
• Shape Recognition (intelligent Pen/shapes) , handwriting Recognition
• Screen recorder and pictures editing
• Insert images,videos,sound etc.
• Importing and exporting office files, and files to save,print or send emails etc.
• More than 20 languages:English,Arabic,Russian,Spanish ,Portuguese,etc.

Product Dimension

Items / Model No.

FC-82IR

FC-96IR

FC-105IR

Size

82’’

96’’

105’’

Ratio

4:3

16:9/16:10

16:9/16:10

Active Size

1680*1190cm

2050*1120mm

2190*1233mm

Product dimension

1750*1250*35mm

2120*1190*35mm

2340*1302*35mm

Packing dimension

1840*1340*65mm

2210*1280*65mm

2490*1410*80mm

Weight(N.W./G.W.)

17kg/23kg

23 kg/27 kg

29 kg/ 35kg

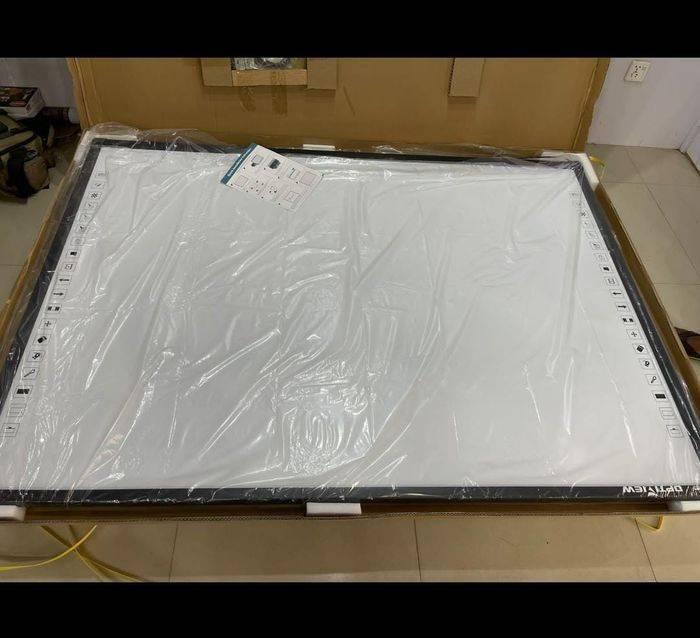

Package include:

1x New Interactive board

1 x 2 Touch pen

1 x 5 Meter USB male to female cable

1 x Software CD

1 x Wall Brackets



Software installation video

Using vidoe of Board



Optiview Interactive Whiteboard Touchable Display 82 Inch

Optiview Interactive Whiteboard Touchable Display 82 Inch



Optiview Interactive Whiteboard Touchable Display 82 Inch

Optiview Interactive Whiteboard Touchable Display 82 Inch

Optiview Interactive Whiteboard Touchable Display 82 Inch
