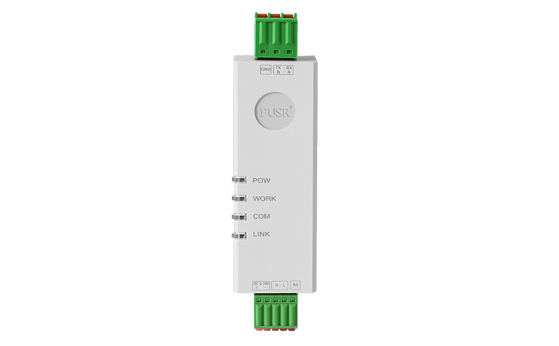

Key Features
- 1. Ultra-small Size: Save your space
- 2. 5 Operating mode: Modbus RTU protocol conversion supported
- 3. 14 sets of filters: software configurable
- 4. User-configurable baud rate
- 5. Wide operating temperature: -40℃ - +85℃
- 6. High reliability: EMC protection level 3
- 7. DIN rail mounting
- 8. Compliant with CAN 2.0A and CAN 2.0B specification
Serial to CAN, Bidirectional Data Communication
5 Operating Modes Supported
- 1. Transparent conversion
- 2. Format conversion
- 3. Transparent conversion with identifiers conversion
- 4. Modbus RTU protocol conversion
- 5. Custom protocol conversion
Multiple Hardware Protection, Reliable and Stable
- EMC protection: level 3
- Wide operating temperature: -40℃~+85℃
- Dual watchdog: hardware & software watchdog, ensure stable operating
- Wide power input: DC 5-24V, supports power input anti-reverse
14 Sets of Configurable Filters
- Serial baud rate: 600bps ~ 230400bps
- CAN baud rate: 5Kbps ~ 1Mbps
Ultra-small Size
- 1. 3 Practical Designs, Easy Your Installation
- 2. Ultra-small size like a lipstick, can be applied to various scenarios, especially the small box.
- 3. Support DIN rail mounting and wall mounting.
Easy Connection
- 1. Push-type, pluggable wire connector, easy wiring, no need for additional tools such as screwdrivers
- 2. Push wire connector
- 3. Pluggable wire connector
What’s in the box?
Applications
- 1. Automotive Electronics
- 2. Industrial Automation
- 3. EV Charging
- 4. Traffic Monitoring
Specifications:
|
Classify |
Parameter |
NumericalValue |
|
Basic Parameters
|
WorkingVoltage |
DC5~24V,recommended 12V 1A |
|
Size |
74*24*22mm (L *W *H) |
|
|
InstallationMethod |
RailMounting |
|
|
ReloadKey |
Press and hold to restore factory settings |
|
|
IndicatorLight |
POWER、WORK、COM、CAN |
|
|
Interface parameter |
CAN portSpecification |
1*CAN port, support standard CAN2.0A/B, press terminal wiring |
|
CAN portBaudRate |
5kbps ~ 1000kbps, support custom |
|
|
TerminalResistance |
Built-in CAN bus 120Ω termination resistor |
|
|
Serial port specification |
USR-CAN114:1*RS485, press terminal wiring USR-CAN112:1*RS232, press terminal wiring |
|
|
Serial port
BaudRate
|
600-230.4K（bps） |
|
|
Data bits |
7、8 |
|
|
Stop bit |
1、2 |
|
|
Parity bit |
When the data bit is 7 bits, it supports Odd, Even, Mark and Space; When the data bit is 8 bits, None, Odd and Even are supported. |
|
|
work-environment |
OperatingTemperature |
-40~85℃
|
|
StorageTemperature |
-40~105℃
|
|
|
OperatingHumidity |
5%~95% RH(no condensation) |
|
|
StorageHumidity |
5%~95% RH(no condensation) |
|
|
SoftwareFunction |
Conversion
OfMode
|
Transparent conversion, Transparent band ID conversion,
Standard conversion, Modbus conversion,
Customize frame header and frame tail |
|
CAN ID |
Support standard frame, remote frame |
|
|
Frame IDFiltering |
Support standard frames only, remote frames only, custom input frame IDs (up to 14 groups) |
|
|
SerialPacketLength |
Support custom packet length
|
|
|
SwitchDirection |
Support bidirectional conversion, serial to CAN only, CAN to serial only |
|
|
FirmwareUpgrade |
Support firmware upgrade on PC |
|
|
ParameterConfiguration |
AT command, PC software configuration |
|
|
Protection parameter |
ElectrostaticProtection |
Air discharge 8kV |
|
Electrical Fast Transient |
Power supply circuit 2kV; Serial CAN port circuit 1kV |
|
|
SurgeInterferenceTest |
Power supply circuit 1kV; CAN port circuit 2kV |
