5A UENPO 5V Isolated DC-DC Converter 75V-150V to 5V 25W

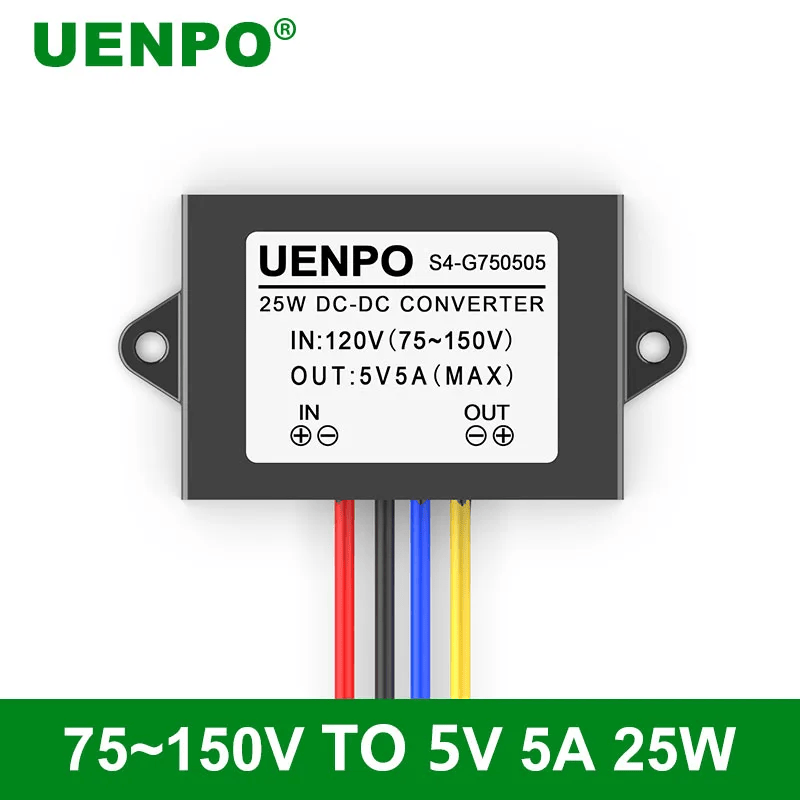

5A UENPO 5V Isolated DC-DC Converter – 75V to 150V Input
The UENPO isolated DC-DC converter reduces high-voltage DC input to a stable 5V DC output. It supports a wide 75V to 150V input range, making it suitable for 96V, 108V and 120V DC power systems where electrical isolation is required.
Key Features
- Wide high-voltage input range: 75V to 150V DC
- Regulated 5V DC output
- Maximum output current: 5A
- Maximum output power: up to 25W
- Isolated input-to-output design
- Compact enclosed module with input and output wires
Specifications
| Brand | UENPO |
| Converter type | Isolated DC-DC step-down converter |
| Input voltage | 75V to 150V DC |
| Compatible nominal systems | 96V, 108V and 120V DC |
| Output voltage | 5V DC |
| Maximum output current | 5A |
| Maximum output power | 25W |
| SKU | B331, KRT103 |
Suitable Applications
- High-voltage battery and DC power systems
- Industrial control and monitoring circuits
- 96V, 108V and 120V DC equipment requiring a 5V supply
- Electronics projects requiring isolated low-voltage power
Important Notes
- Use only with DC input within the stated 75V to 150V range.
- Confirm input/output wiring and polarity from the module label before connecting power.
- Do not exceed 5A output or 25W load.
- High voltage can be dangerous. Installation should be performed by a qualified person.
Package Includes
1 × UENPO 5V 5A Isolated DC-DC Converter Module
