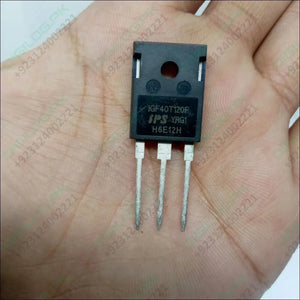

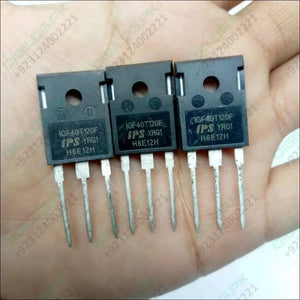

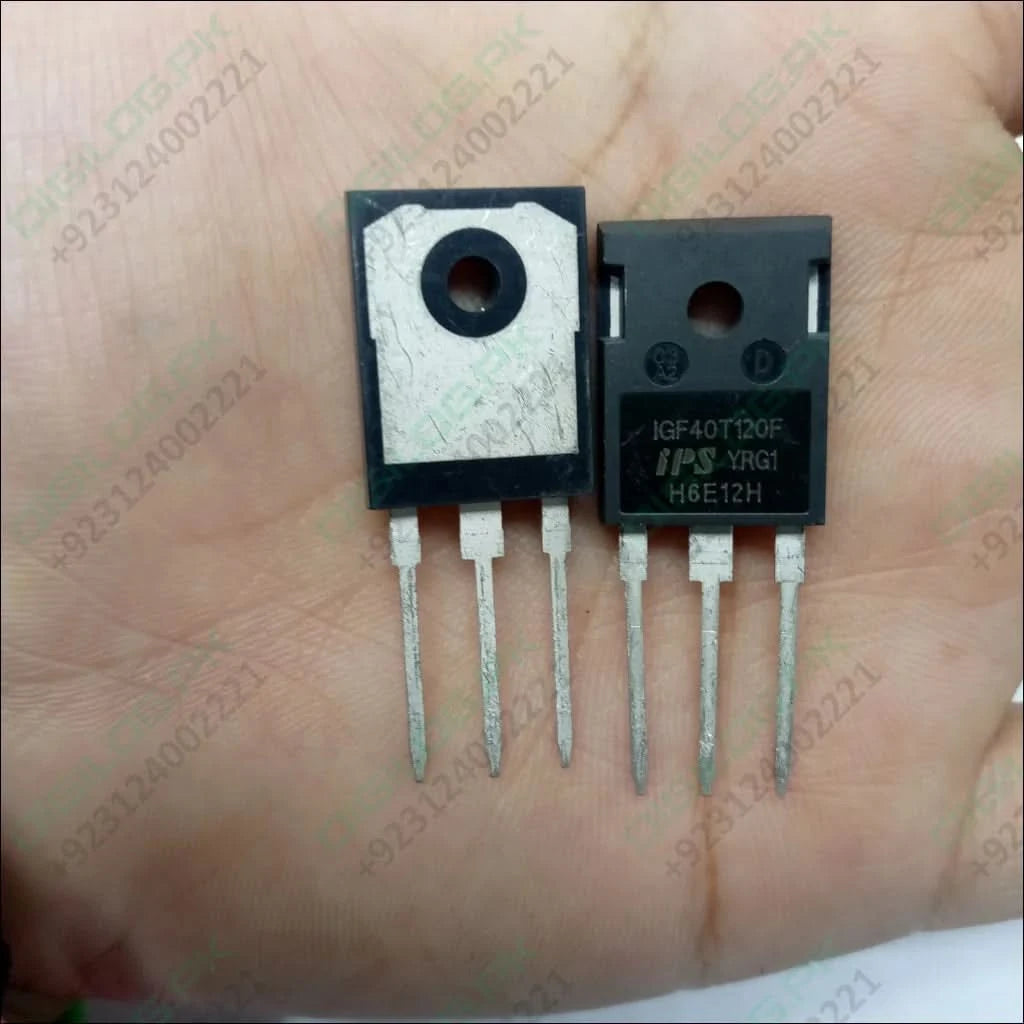

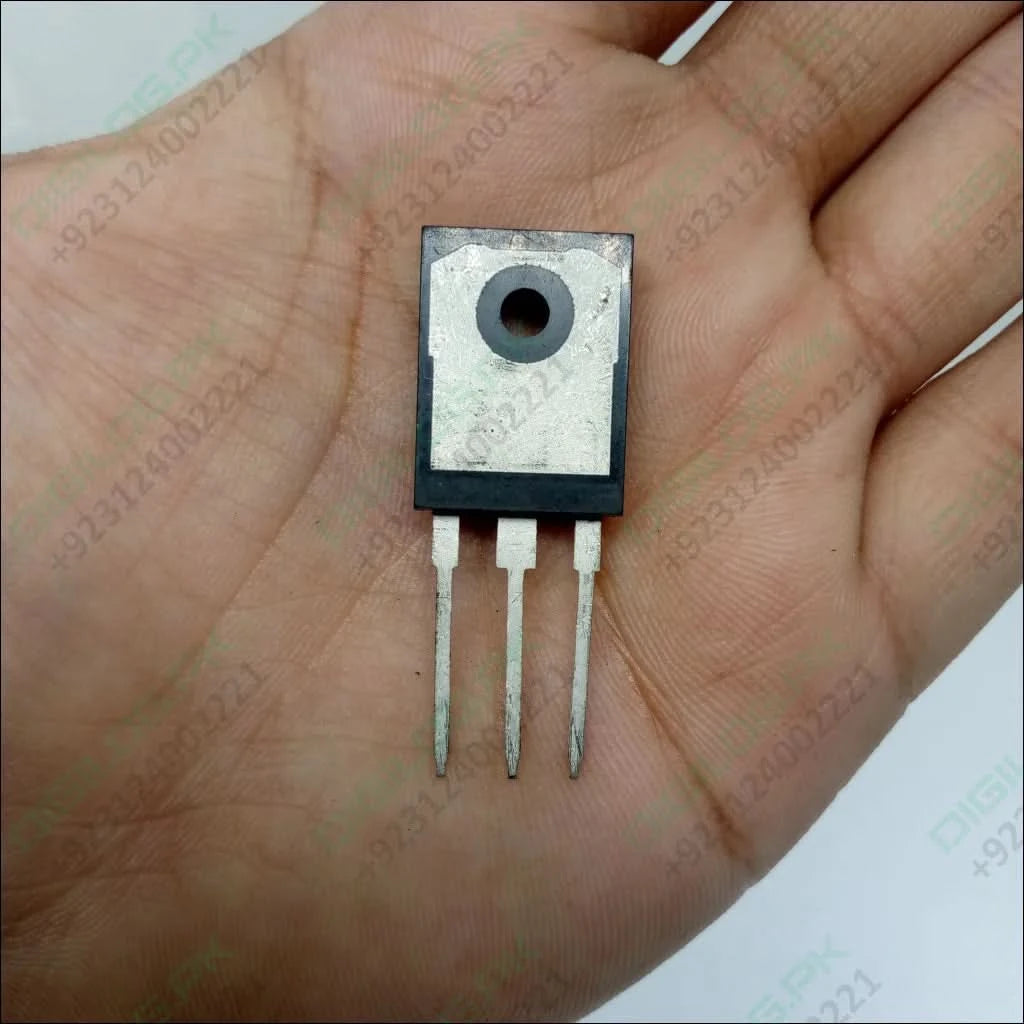

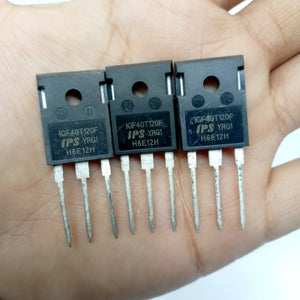

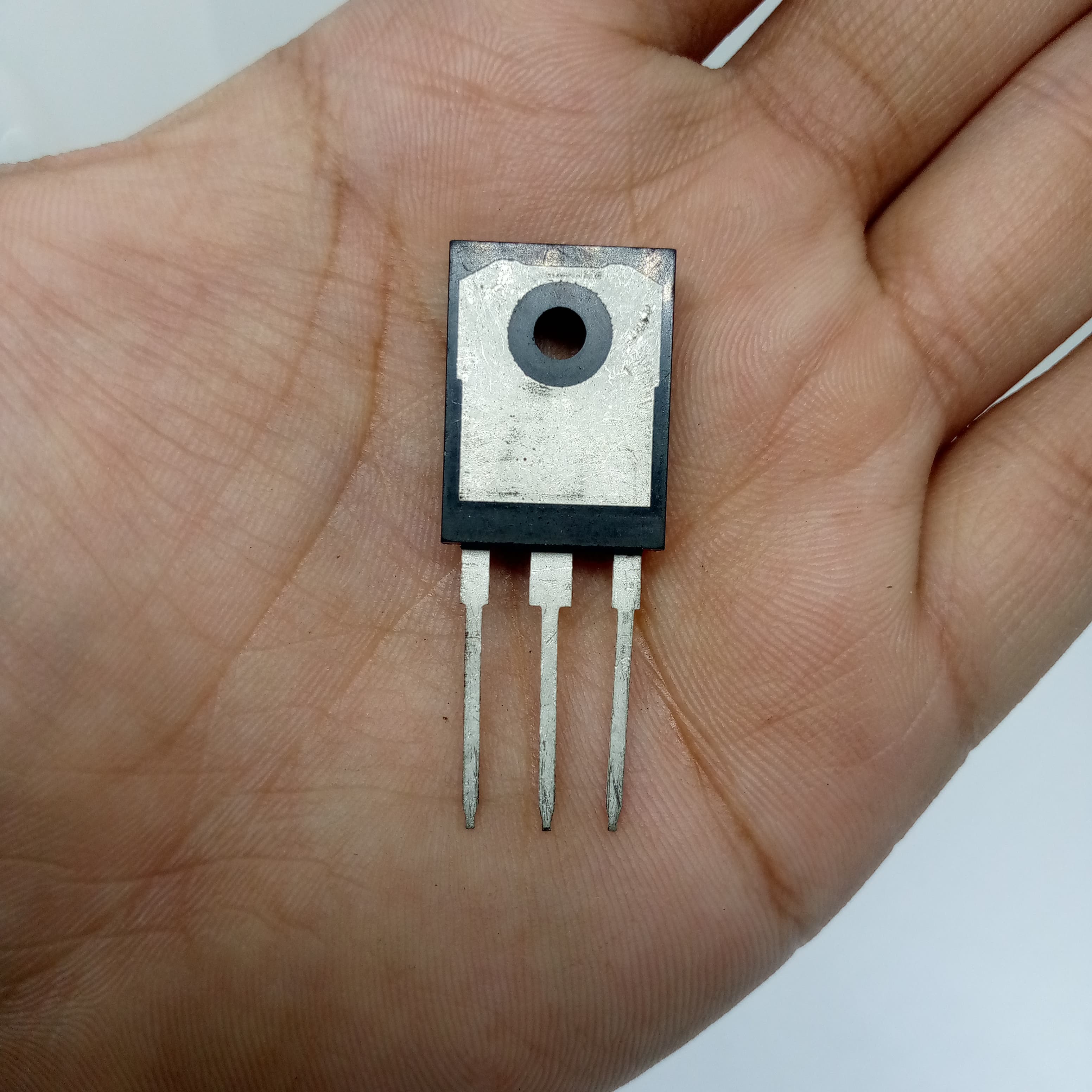

ON 40N120 IGBT Transistor

ON 40N120 IGBT - High-Performance Transistor for Power Applications

The ON 40N120 IGBT is a high-efficiency insulated-gate bipolar transistor optimized for high-power switching applications. With a voltage rating of 1200V and current handling of 40A, it offers fast switching speed and low conduction losses, making it perfect for use in inverters, motor drives, and renewable energy systems.

Benefits of ON 40N120 IGBT

• High Voltage Capacity: Supports up to 1200V, ensuring compatibility with industrial power systems.
• Fast Switching Speed: Reduces energy losses and enhances overall system efficiency.
• High Current Handling: Manages continuous operation at 40A without performance degradation.
• Thermal Stability: Operates reliably over a wide temperature range.
• Compact TO-247 Package: Designed for easy integration into circuit designs.

Applications

• Industrial Inverters
• Motor Drives and Control Systems
• Solar Energy Systems and Inverters
• DC-DC Converters
• Uninterruptible Power Supplies (UPS)

Technical Highlights

• Voltage Rating: 1200V
• Continuous Current: 40A
• Switching Speed: High-speed for energy-efficient operation
• Package: TO-247
• Operating Temperature: -55°C to +150°C

Package Includes

• 1 x ON 40N120 IGBT Transistor
