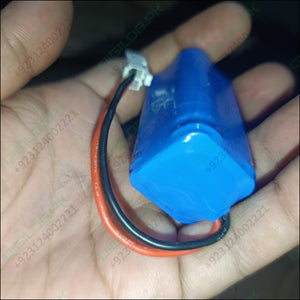

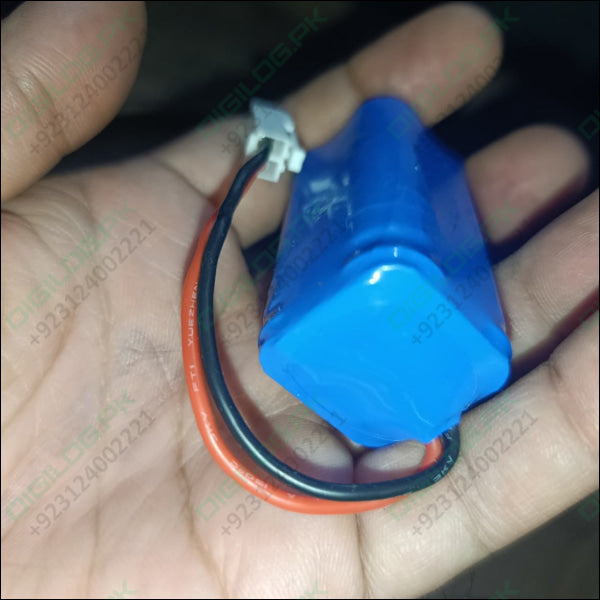

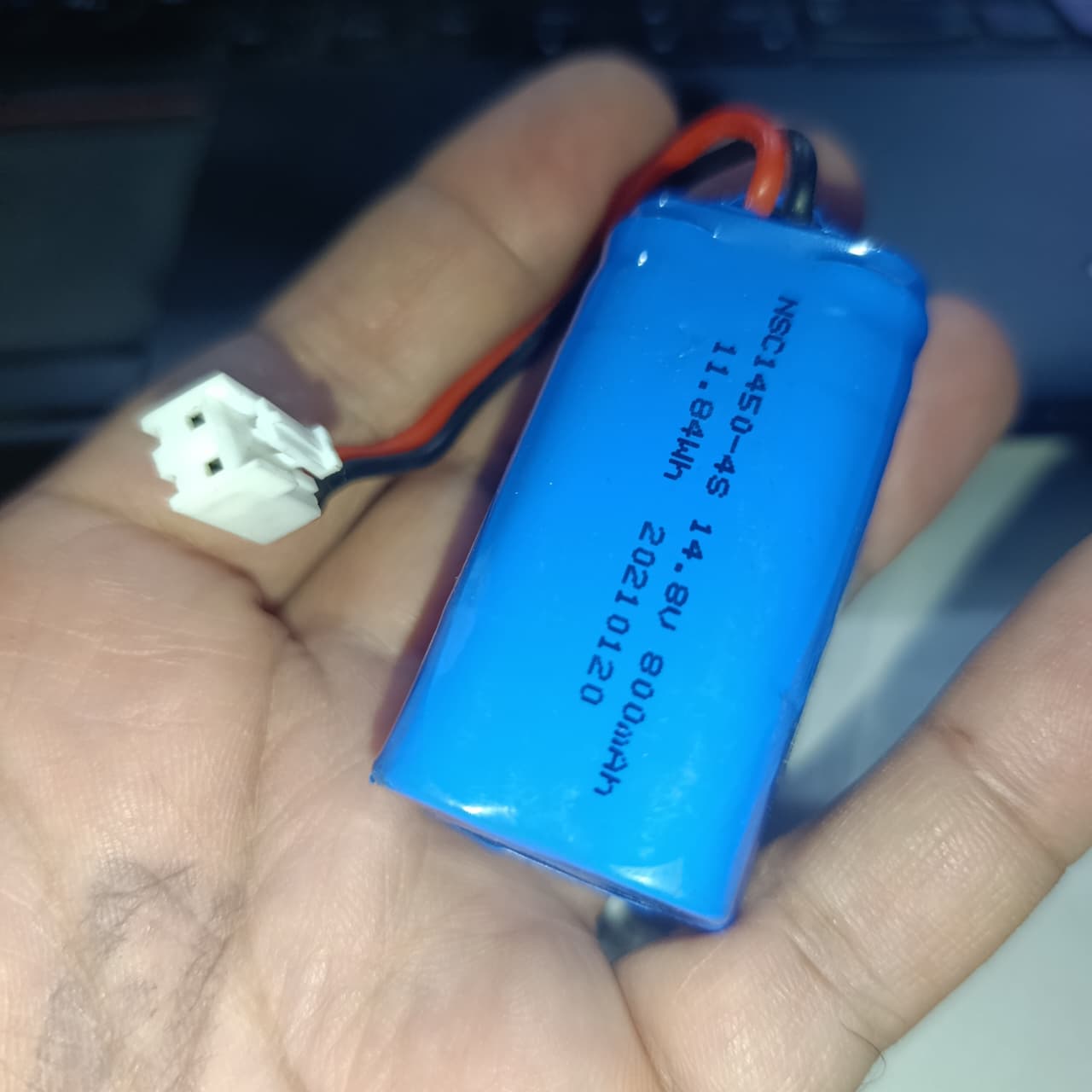

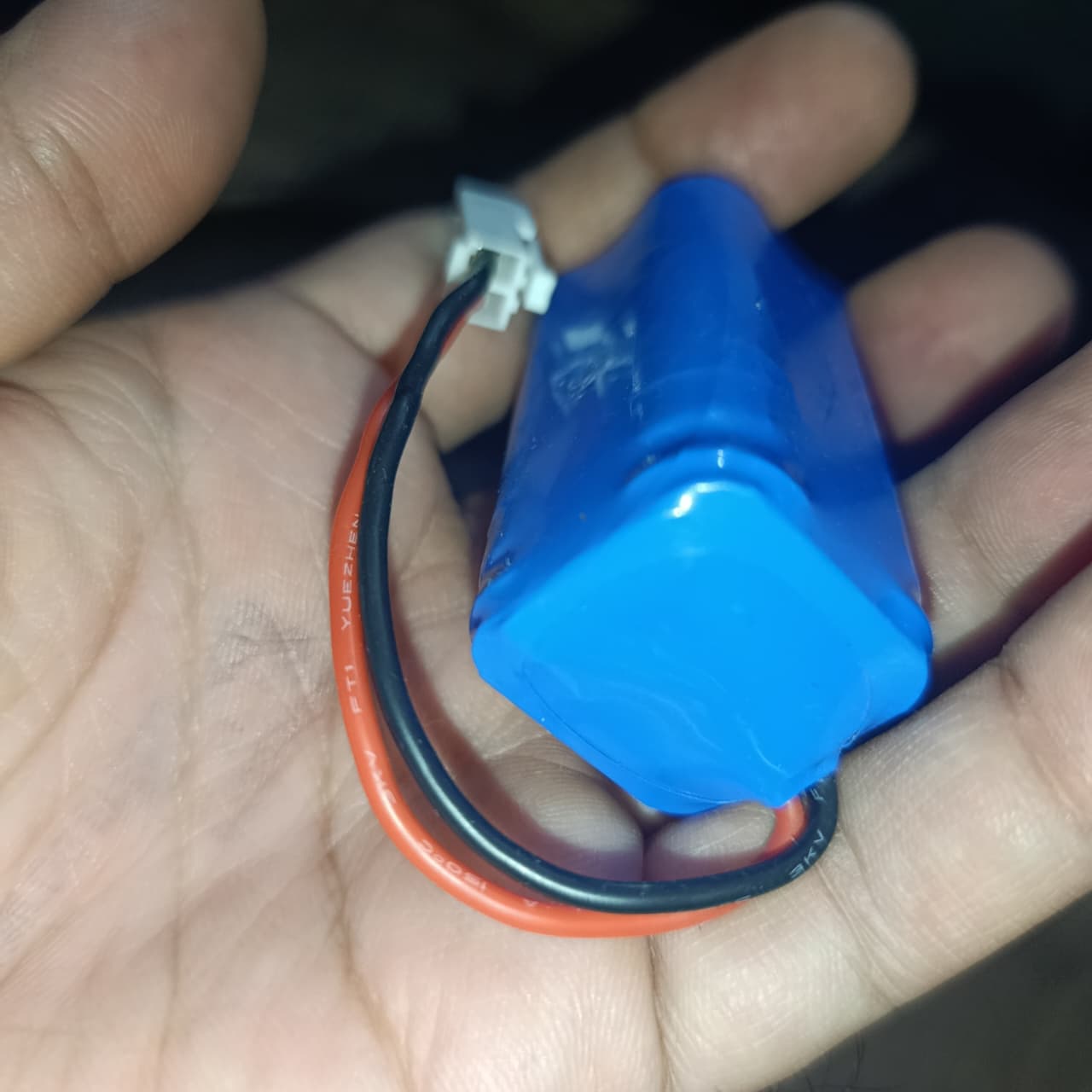

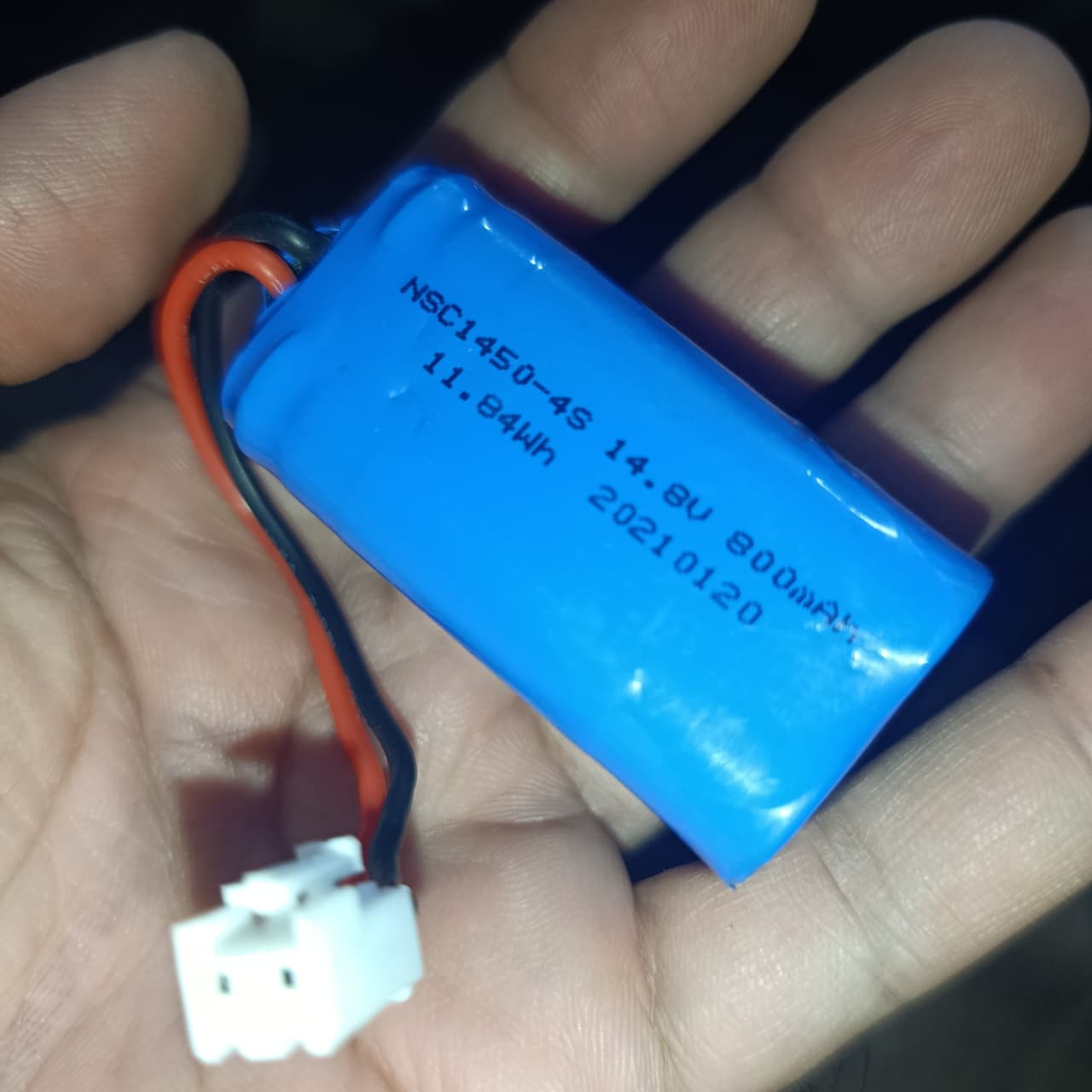

The NSC145-4S is a high-performance 14.8V 800mAh lithium-ion rechargeable battery pack featuring 4S cell configuration and 5mm pitch connector for electronics projects and devices in Pakistan. Delivering 11.84Wh energy capacity with compact 30x30x55mm dimensions, this Li-ion battery provides reliable power for drones, RC vehicles, portable electronics, and DIY projects. Pre-wired with 80mm leads rated for 5A current capacity and white 5mm pitch connector for secure plug-and-play installation.

Key Features

• 14.8V nominal voltage (4S configuration) with 800mAh capacity for high-power applications
• 11.84Wh energy capacity provides extended runtime for demanding devices
• Compact dimensions 30mm x 30mm x 55mm fit easily into tight spaces and enclosures
• 5mm pitch white connector (JST-style) ensures secure and reliable connection
• 80mm wire length with 5A current capacity for high-power device compatibility
• Rechargeable lithium-ion chemistry provides hundreds of charge cycles
• Pre-wired with red (positive) and black (negative) leads for easy polarity identification
• Manufactured 2021-01-20 with quality control and safety standards

Applications & Use Cases

• FPV racing drones and quadcopter power supply in Pakistan
• RC cars, boats, and vehicles requiring 14.8V battery packs
• Portable electronics and handheld devices with high power requirements
• Arduino, ESP32, and microcontroller projects needing 14.8V power
• DIY robotics and automation projects with 4S battery requirements
• LED lighting systems and portable illumination devices
• Wireless communication equipment and IoT devices

Technical Specifications

• Model: NSC145-4S
• Voltage: 14.8V nominal (4S configuration: 16.8V fully charged, 12V cutoff)
• Capacity: 800mAh (0.8Ah)
• Energy: 11.84Wh
• Chemistry: Lithium-ion (Li-ion) rechargeable 4S pack

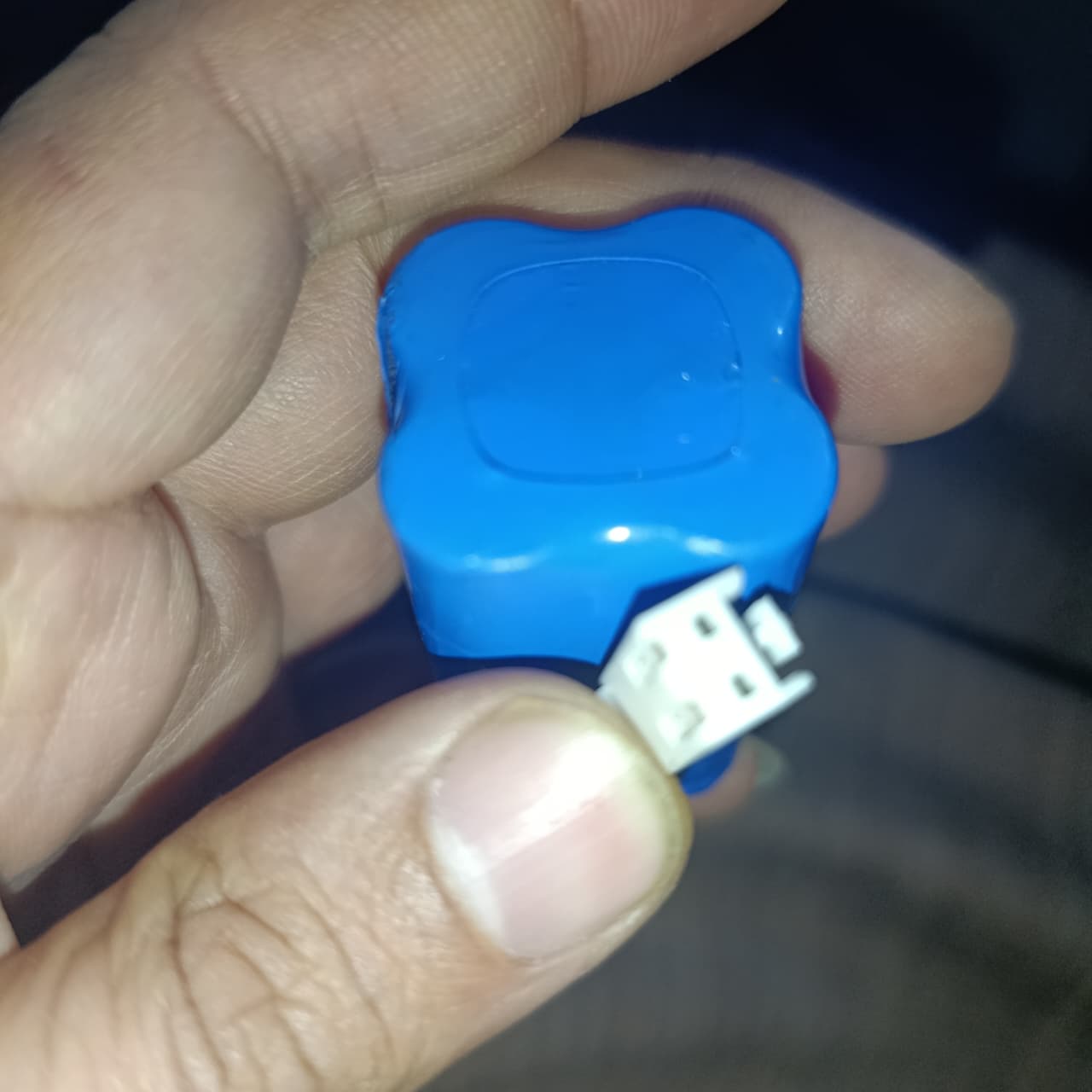

• Connector Type: 5mm pitch 2-pin white connector (JST-style)

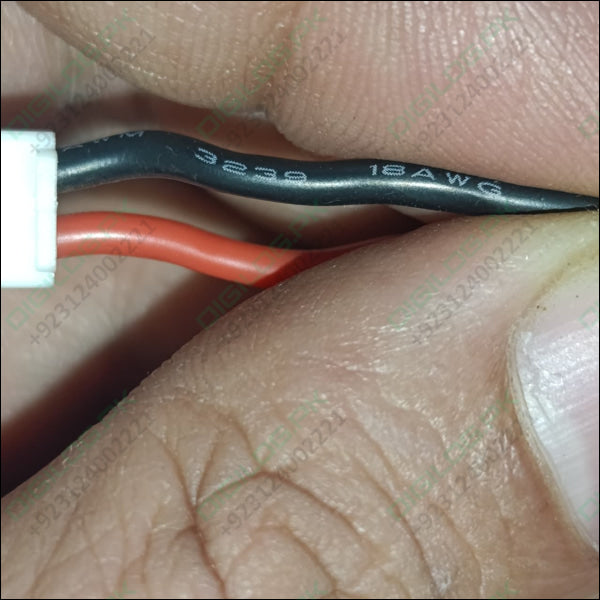

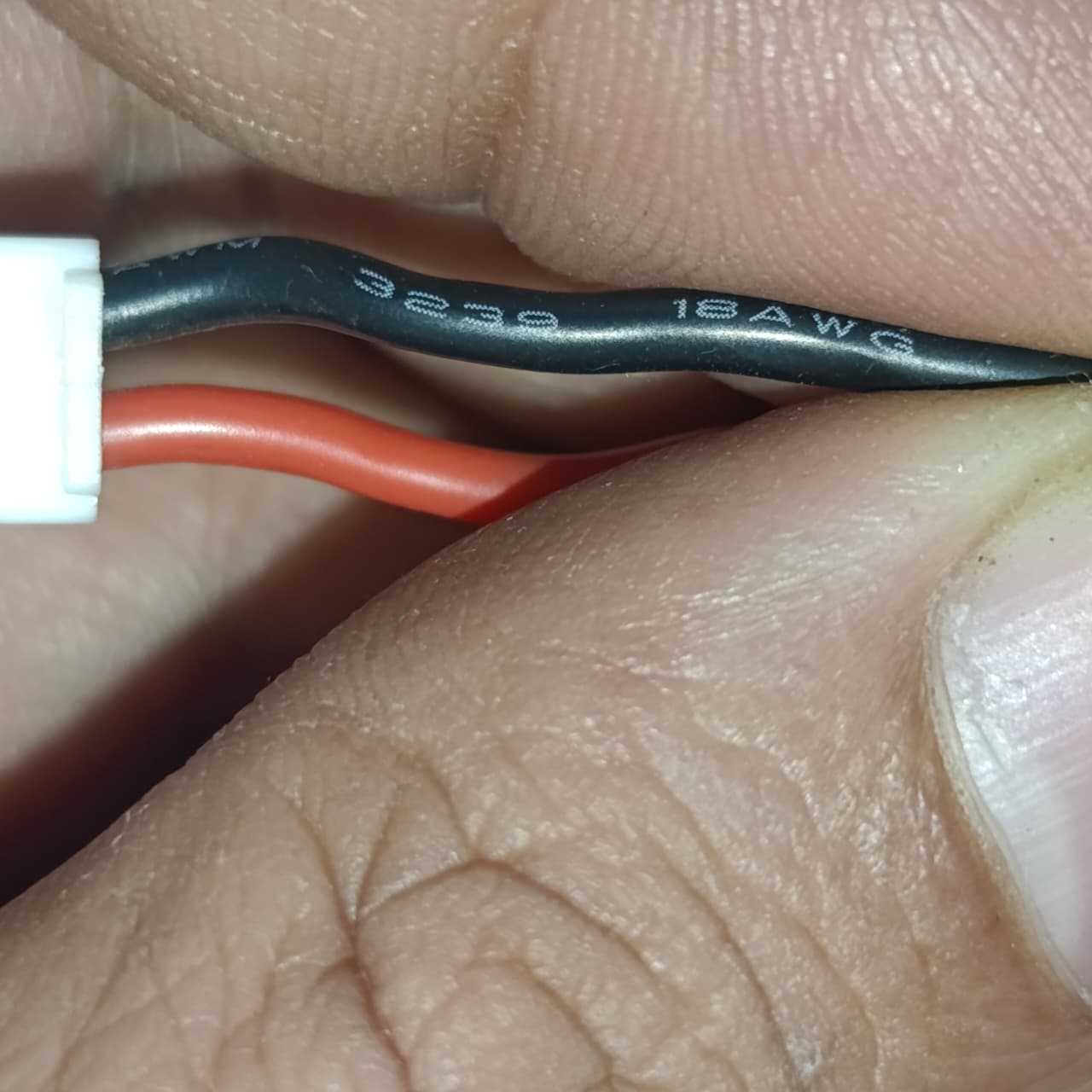

• Wire Length: 80mm
• Wire Current Capacity: 5A maximum
• Wire Colors: Red (positive +), Black (negative -)
• Dimensions: 30mm x 30mm x 55mm (L x W x H)
• Color: Blue housing
• Charge Voltage: 16.8V (use 4S Li-ion charger)
• Discharge Current: Up to 5A continuous
• Cycle Life: 300-500+ charge cycles (typical)
• Manufacturing Date: 2021-01-20
• Weight: Approx. 50g

Why Buy from Digilog.pk?

We provide high-quality NSC145-4S lithium batteries and rechargeable power solutions in Pakistan at competitive prices. Fast delivery to Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, and across Pakistan with technical support for your drone, RC, and electronics projects.
