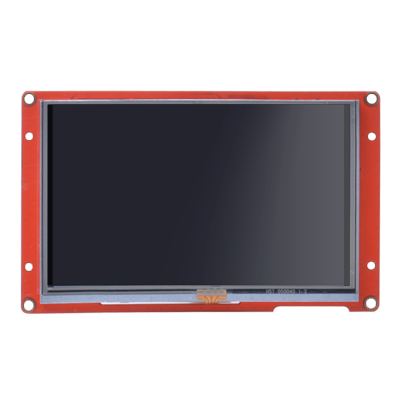

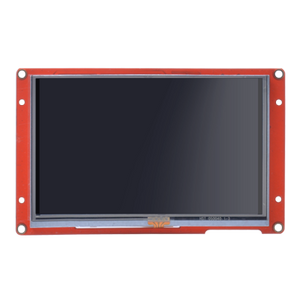

Nextion NX8048P050-011R 5 Inch Intelligent HMI Resistive Touch Display – 800×480, 120MB Flash
The Nextion NX8048P050-011R is a 5 inch, 800×480 resistive touch HMI display from Nextion's top-end Intelligent Series. It doesn't need your microcontroller to draw graphics. You design screens, buttons, sliders, gauges and animations on a PC in the free Nextion Editor and load them onto the display. Your Arduino, ESP32, STM32, PIC or Raspberry Pi then just sends and receives simple commands over a two-wire serial link.
The Intelligent Series has much more memory than the Basic and Enhanced lines. You get 120 MB of flash for fonts and images, 512 KB of RAM, a built-in RTC, 8 GPIO pins and support for audio, video and animation. That makes the NX8048P050 a good fit for industrial control panels, machine front-ends, smart-home controllers and final-year projects that need a polished touch interface without loading the main controller.
Key Features
- 🖥️ 5.0" 800×480 display: 65K colours (16-bit RGB565) at 300 nit, with brightness adjustable from 0–100% in 1% steps.
- 👆 Resistive touch: rated for more than 1 million touches and works with a stylus or gloved finger, which suits workshops and factory floors.
- 💾 120 MB flash + 512 KB RAM: enough room for high-resolution images, multiple fonts and complex multi-page interfaces.
- 🎬 Audio, video and animation: Intelligent Series playback support, plus a speaker connector (0.5 W typical, 1.5 W max).
- 🔌 Simple TTL serial: 4-pin 2.54 mm connector, 2400–921600 baud, controlled from any MCU with a few lines of code.
- 🔧 8 extended GPIO: IO0–IO7 at 3.3 V for inputs, outputs and component events, with PWM on IO6 and IO7.
- ⏰ Built-in RTC: keeps time with a CR1220 coin cell for clocks, schedules and data logging.
- 📂 microSD slot: FAT32 cards up to 32 GB for quick firmware and HMI (.tft) uploads without a USB-TTL adapter.
Specifications
| Model | NX8048P050-011R (Intelligent Series, resistive touch, without enclosure) |
| Screen size | 5.0 inch |
| Resolution | 800 × 480 pixels |
| Colours | 65K (16-bit RGB565) |
| Brightness | 300 nit, adjustable 0–100% |
| Backlight | LED, >30,000 hours average life |
| Touch | Resistive, >1 million touches |
| Flash / RAM / EEPROM | 120 MB / 512 KB / 1024 bytes |
| Instruction buffer | 4096 bytes |
| Serial interface | TTL (RX 3.3 V / TX 5 V), 4-pin 2.54 mm |
| Baud rate | 2400 – 921600 (9600 default) |
| GPIO | 8 × 3.3 V (IO6, IO7 PWM) |
| RTC | Built-in (CR1220 battery, not included) |
| microSD | FAT32, up to 32 GB (for firmware / HMI upload) |
| Speaker output | 0.5 W typical, 1.5 W max, 1.25 mm 2-pin connector (speaker not included) |
| Supply voltage | 4.65 – 6.5 V (5 V typical) |
| Current | 220 mA typical at 5 V full brightness; 170 mA in sleep |
| Recommended power supply | 5 V, 1.0 A DC |
| Outline dimensions | 136.9 × 84 × 5.8 mm |
| Visual area / Active area | 120.7 × 75.8 mm / 108.0 × 64.8 mm |
| Weight | 130 g |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -30°C to 85°C |
| Operating humidity | 10% – 90% RH |
| Certifications | CE-EMC, RoHS |
What's in the Box
- 1 × Nextion NX8048P050-011R 5" HMI display
- 1 × XH2.54 4-pin connection wire

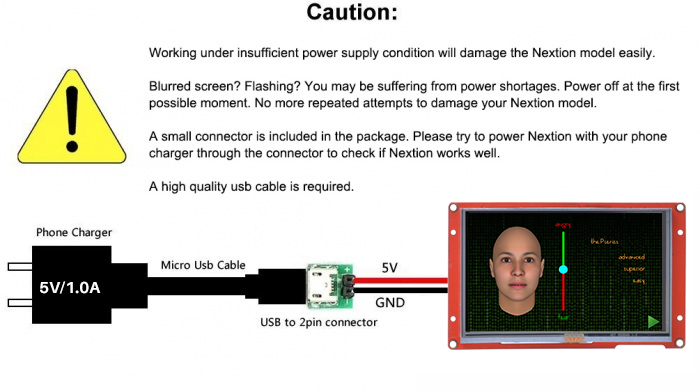

- 1 × Power supply test board
Who It's For
Engineers building industrial HMIs and machine control panels, automation integrators, embedded developers who want a professional GUI without coding graphics, and university students working on final-year projects with Arduino or ESP32.
If your project needs a capable, easy-to-program 5 inch touch interface, the Nextion NX8048P050-011R is a strong choice. Order this Nextion 5 inch HMI display in Pakistan from Digilog.pk.
