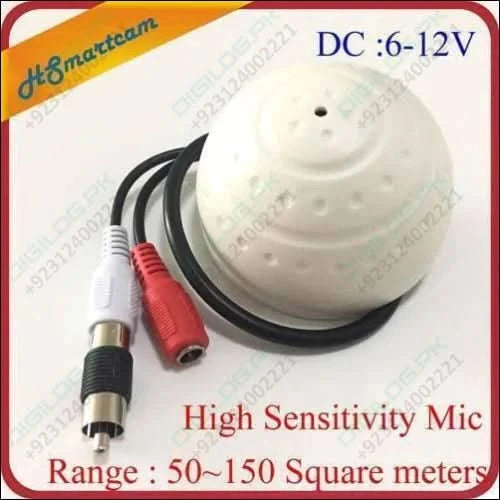

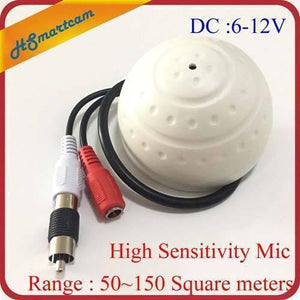

High Sensitivity Mini Cctv Security Surveillance Microphone – Audio Input For Ip Cameras, Dvr & Nvr Systems (50–150M² Range)
Pickup available at Digilog Electronics
Usually ready in 2 hours
📝 Product Description
Enhance your security system with this high-sensitivity Mini CCTV Surveillance Microphone, designed to deliver clear and accurate audio monitoring across an area of up to 150 square meters.
Ideal for WiFi IP cameras, DVRs, and NVR systems, this compact microphone captures even the faintest sounds, making it perfect for offices, shops, parking areas, and home surveillance setups. With a wide frequency range and high signal-to-noise ratio, it ensures reliable performance and crisp sound clarity in real-time monitoring.
🔧 Key Features
-
🎤 High-Sensitivity Audio Capture – Detects clear sound up to 150m² range
-
🧩 Plug-and-Play RCA Output – Compatible with most CCTV, NVR, and DVR systems
-
⚡ Stable Power Performance – Operates on 6–12V DC power supply
-
🔈 Wide Frequency Range – 300Hz to 5000Hz for natural sound reproduction
-
💡 Compact & Easy to Install – Discreet design suitable for all security setups
-
🚨 Enhanced Monitoring – Perfect for indoor/outdoor surveillance environments
📋 Technical Specifications
| Attribute | Details |
|---|---|
| Type | Mini CCTV Surveillance Microphone |
| Coverage Range | 50–150 square meters |
| Audio Output | RCA Female |
| Sensitivity | 200mA/ubar |
| Working Current | 20mA |
| Working Voltage | DC 6–12V |
| Frequency Response | 300–5000Hz |
| Max Output Voltage | 5V (peak) |
| S/N Ratio | High |
| Included | 1 × CCTV Microphone (no power adapter) |
🌍 Applications
-
Home and office CCTV systems
-
IP camera audio input for real-time monitoring
-
NVR/DVR recording setups
-
Parking areas, retail stores, schools, and banks
⚠️ Note
🔌 Power adapter not included. Requires a 6–12V DC power source.
