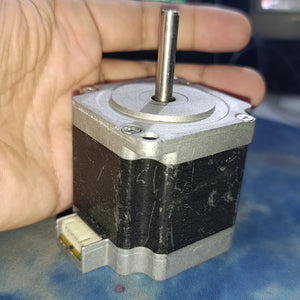

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a square silver and black motor with a protruding metal shaft and a white electrical connector port on the side.

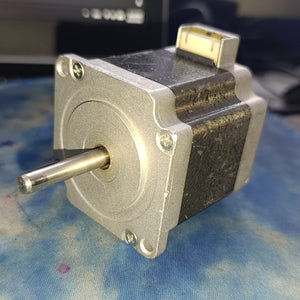

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a silver and black square-bodied motor with a protruding metal shaft and a white electrical connector on the top edge.

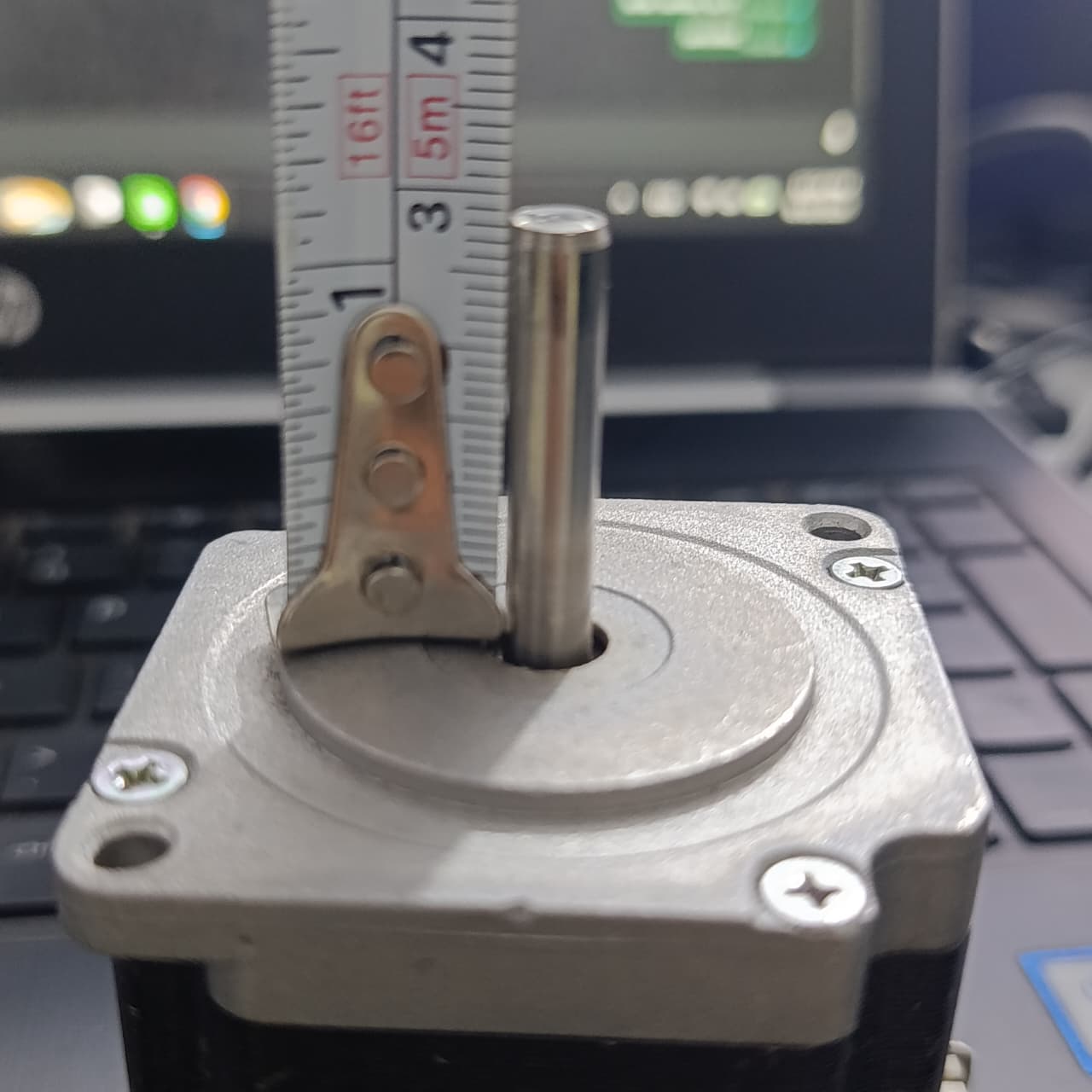

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a close-up of the metal shaft being measured with a tape measure against the motor's top housing.

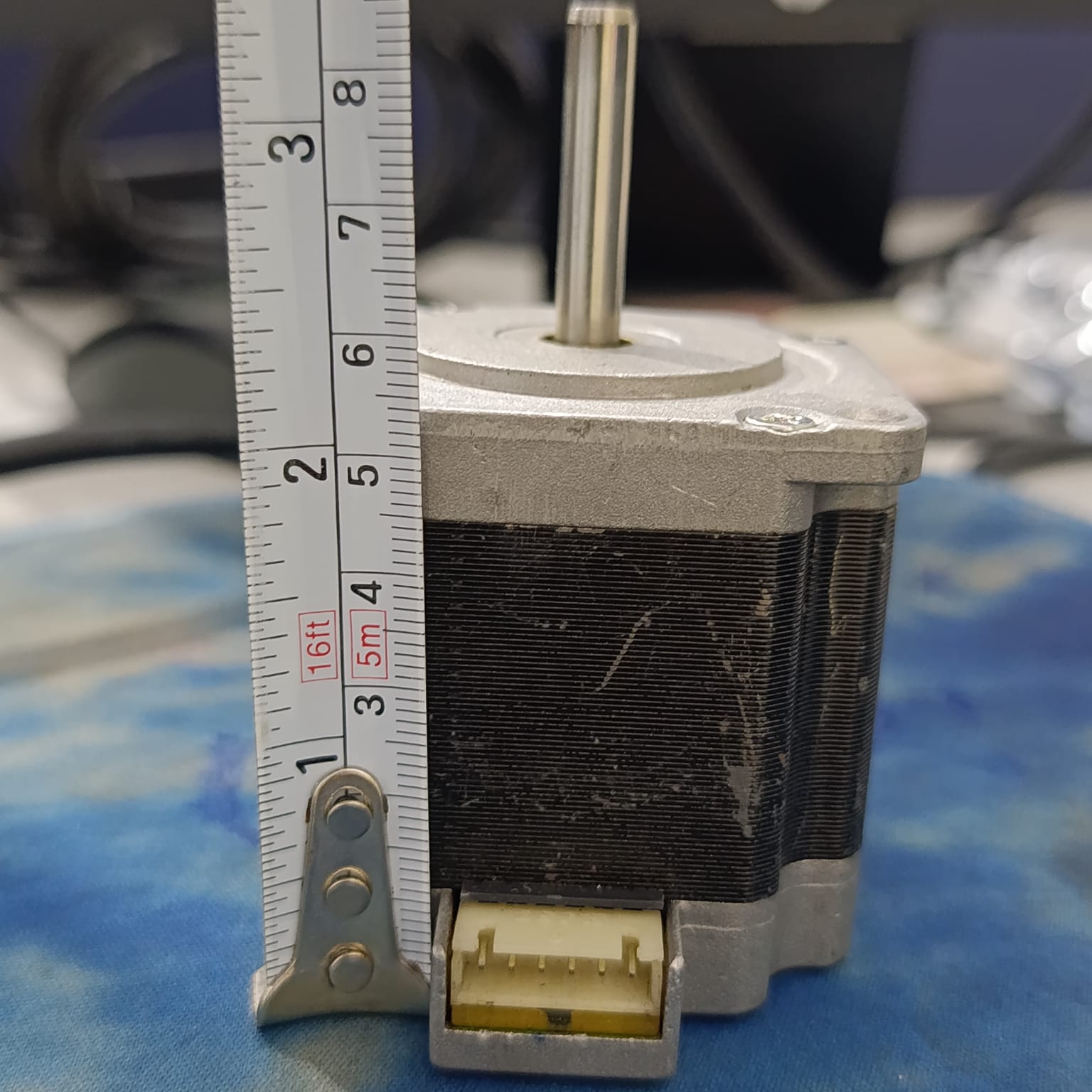

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a silver and black square motor with a top shaft and a bottom white connector, shown next to a metal measuring tape.

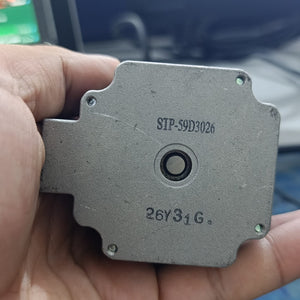

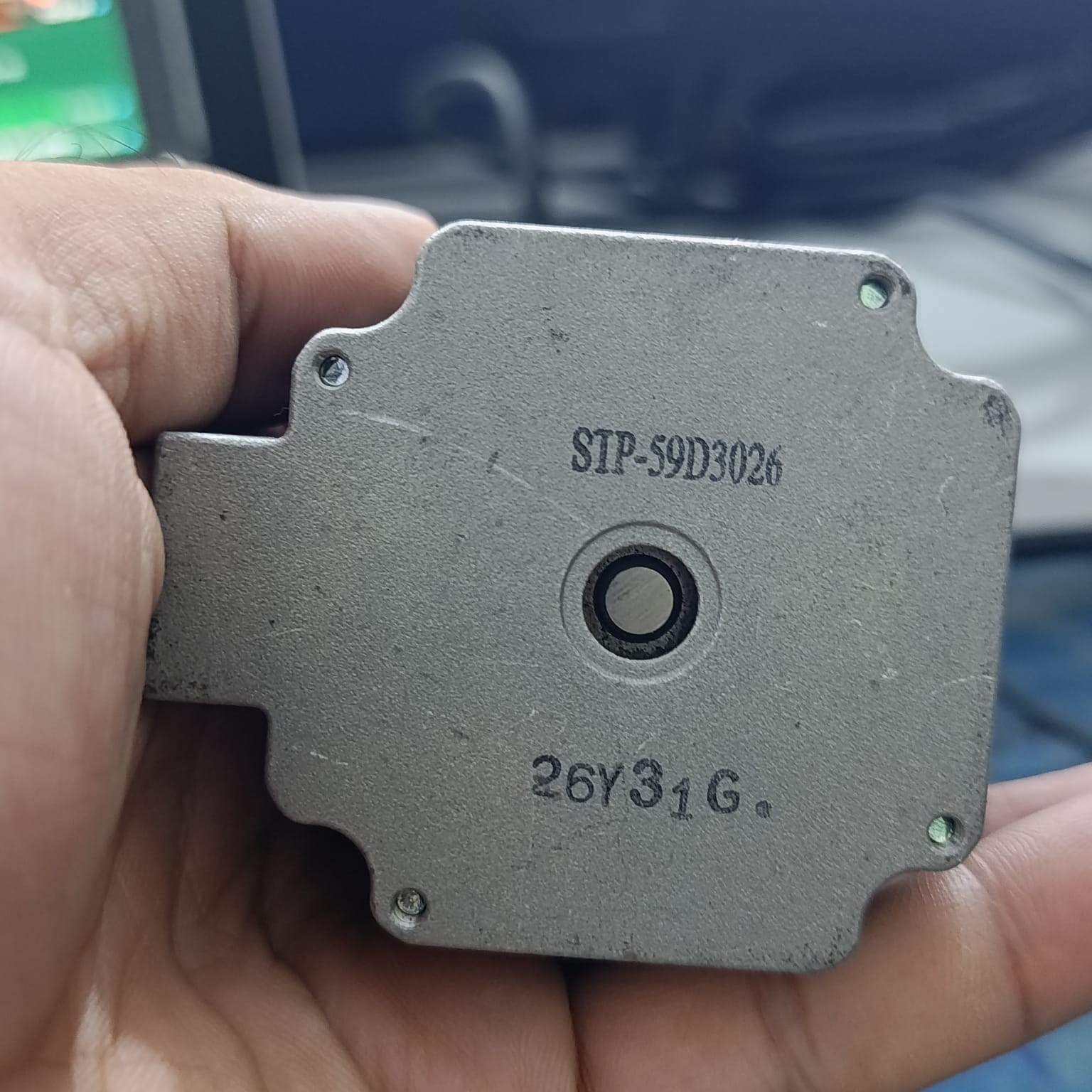

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a close-up of the silver metal face showing the centered shaft hole and the printed text STP-59D3026 and 26Y31G.
NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a square silver and black motor with a protruding metal shaft and a white electrical connector port on the side.
NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a silver and black square-bodied motor with a protruding metal shaft and a white electrical connector on the top edge.
NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a close-up of the metal shaft being measured with a tape measure against the motor's top housing.
NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a silver and black square motor with a top shaft and a bottom white connector, shown next to a metal measuring tape.
NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a close-up of the silver metal face showing the centered shaft hole and the printed text STP-59D3026 and 26Y31G.

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°)

Sale price Rs 1,500
SKU: krt12
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a square silver and black motor with a protruding metal shaft and a white electrical connector port on the side.

NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°)

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°) - a square silver and black motor with a protruding metal shaft and a white electrical connector port on the side.
NEMA 23 Stepper Motor In Pakistan (1.5A–2.0A, 1.8°)
Sale priceRs 1,500

This is a high-performance NEMA 23 bipolar stepper motor (Model: STP-59D3026), designed for precision motion control, high torque stability, and dependable long-term operation. Featuring a 1.8° step angle (200 steps per revolution) and a compact ~40mm body height, this motor is ideal for space-constrained industrial equipment, custom robotics, CNC routers, and 3D printers.

It comes equipped with an integrated top-mounted 6-pin socket connector for clean, hassle-free wiring and reliable driver connectivity.

Specifications

Feature / Specification Details
Frame Size NEMA 23 (56.4 mm x 56.4 mm)
Step Angle 1.8° (200 steps/rev)
Motor Type Bipolar Stepper Motor
Rated Current 1.5A – 2.0A per phase (recommended driver setting)
Shaft Diameter ~6.35 mm (1/4") Round Shaft
Shaft Length ~24 mm
Body Height ~40 mm (excluding shaft)
Connector Type Integrated 6-pin JST-style socket
Mounting Pattern Standard 4-hole NEMA 23 flange
Applications CNC Routers, 3D Printers, Automation, Linear Actuators
