NEMA 17 Pancake Stepper Motor 1A for Arduino CNC in Pakistan
Pickup available at Digilog Electronics
Usually ready in 2 hours
NEMA 17 Pancake Stepper Motor 1A for Arduino CNC in Pakistan
NEMA 17 Pancake Stepper Motor — Compact, Precise, aur Reliable. Pakistani students, engineers, aur makers ke liye perfect choice for CNC, 3D printing, aur robotics projects!
Specifications
| Field | Detail |
|---|---|
| Motor Type | Bipolar Stepper Motor |
| Frame Size | NEMA 17 (42mm × 42mm) |

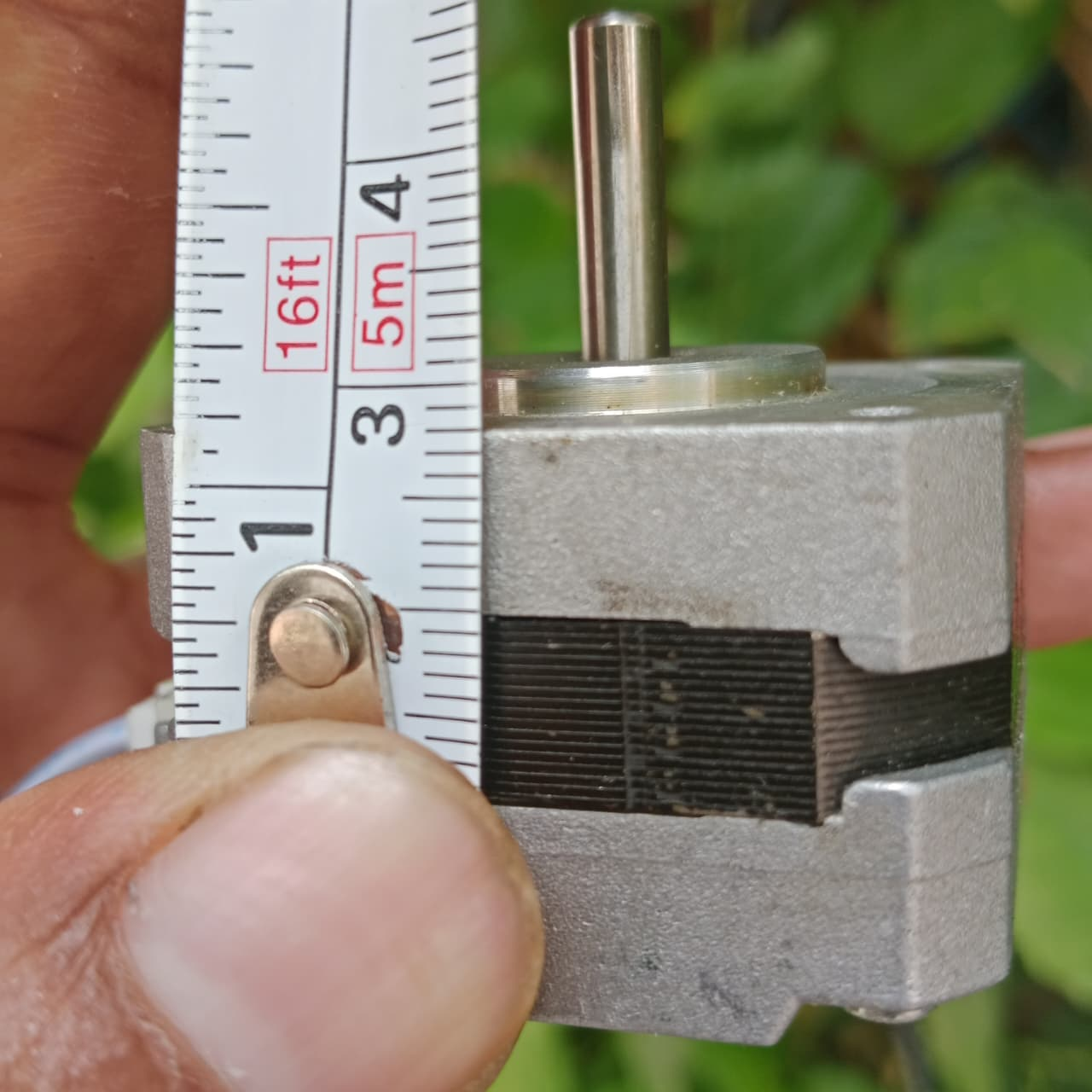

| Stack Height (Body) | ~20mm (Pancake / Slim) |
| Rated Current | 1A per phase |
| Step Angle | 1.8° (200 steps/revolution) [VERIFY] |
| Operating Voltage | 12V DC (typical) [VERIFY] |
| Holding Torque | [VERIFY — typically 13–22 N·cm for pancake] |
| Phase Resistance | [VERIFY] |
| Phase Inductance | [VERIFY] |

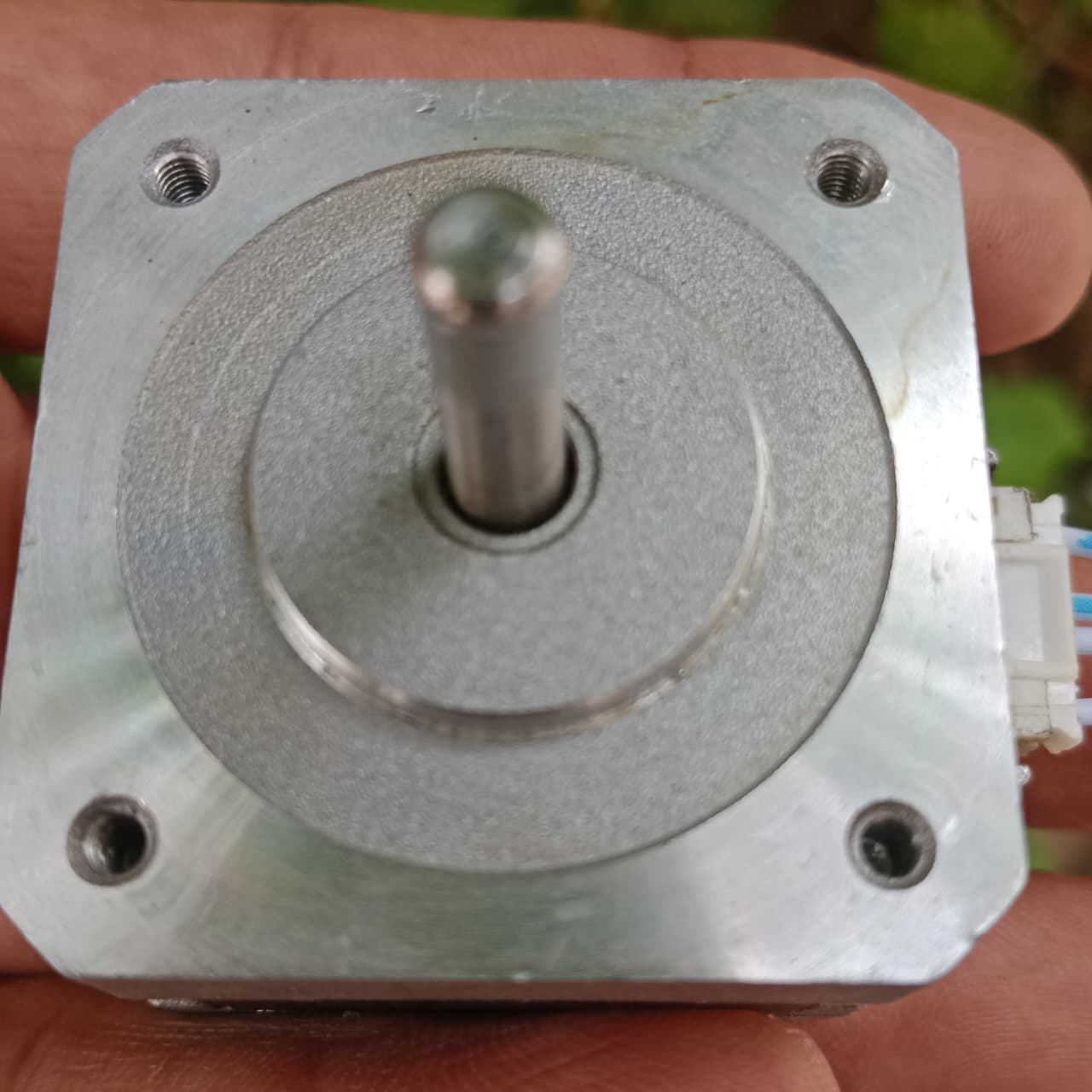

| Shaft Diameter | 5mm (single shaft) |

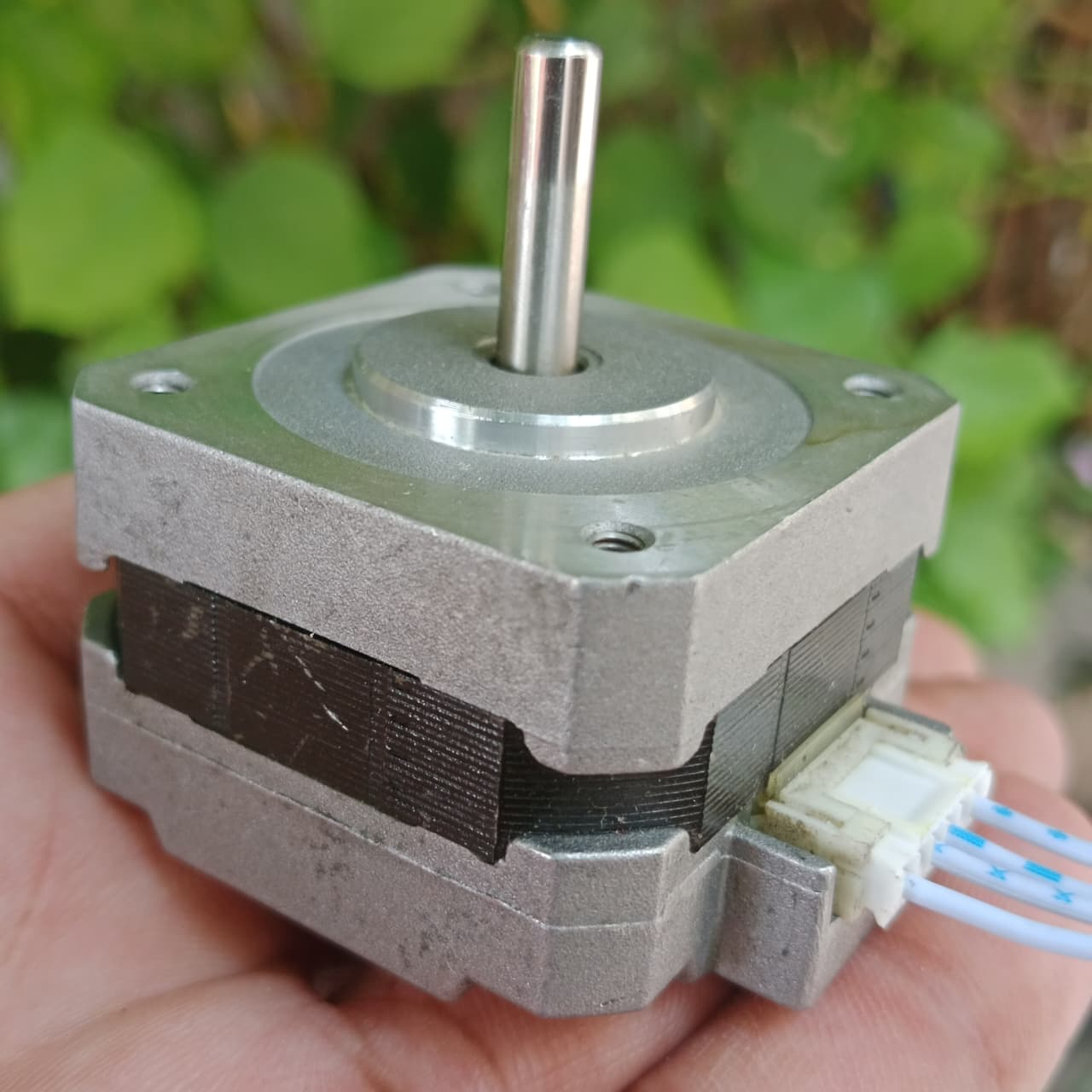

| Connector | 4-wire JST connector (bipolar) |

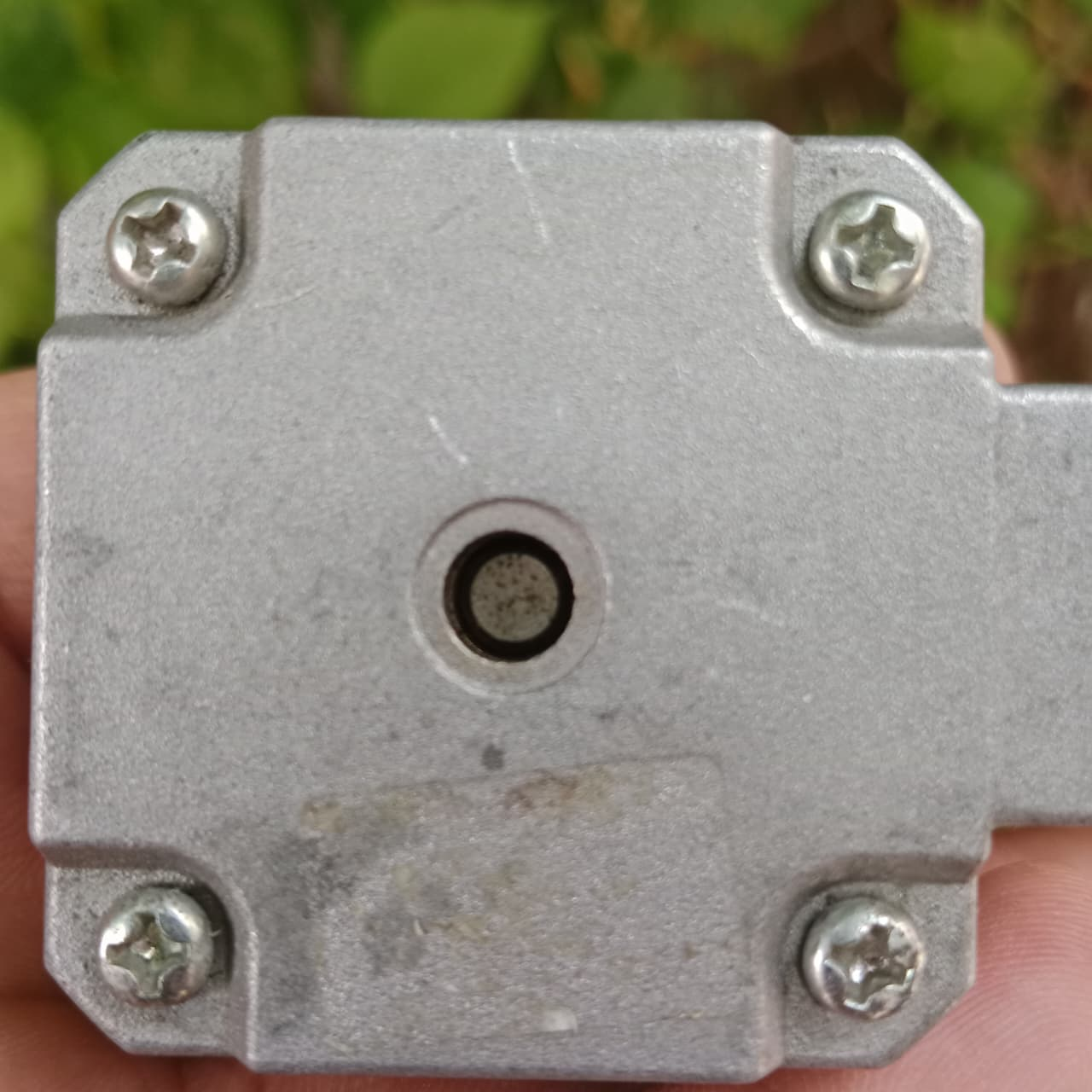

| Mounting | 4× M3 screws, standard NEMA 17 bolt pattern |
| Compatible Drivers | A4988, DRV8825, TMC2208, L298N |
| Compatible Boards | Arduino Uno/Nano/Mega, ESP32, STM32, Raspberry Pi (with driver) |
Kahan Use Hota Hai (Use Cases)
- 🖨️ 3D Printers — Extruder ya axis motor ke tor par use karein (Ender, Prusa-style builds)
- 🔧 CNC Machines — Precise axis control ke liye DIY CNC routers mein
- 🤖 Robotics — Arm joints aur pan-tilt mechanisms ke liye
- 📐 FYP Projects — Engineering final year projects mein position control
- 🏭 Automation — Conveyor belts, camera sliders, aur lab automation setups
Kaise Connect Karein (Wiring Guide)
A4988 Driver ke saath Arduino Uno connection:
--- A4988 Stepper Driver → Arduino Uno ---
ENABLE → GND
RESET → SLEEP (short together)
STEP → Pin 3
DIR → Pin 2
VDD → 5V
GND → GND
VMOT → 12V external supply
GND(motor) → External GND
--- Motor Coil Wiring (Bipolar 4-wire) ---
1A / 1B → Coil A [VERIFY wire color]
2A / 2B → Coil B [VERIFY wire color]
// ESP32 Note:
// STEP → GPIO 18, DIR → GPIO 19 (example) [VERIFY]
Aksar Pooche Jane Wale Sawalat (FAQ)
- Q: Kya yeh motor Arduino ke saath directly connect ho sakti hai?
- No — stepper motors require a dedicated driver like A4988 or DRV8825 between the motor and Arduino. Direct connection will damage your board.
- Q: Konsa driver best hai is motor ke liye?
- A4988 is the most common and affordable. For quieter operation, use TMC2208 or TMC2209. Set current limit to 1A on the driver.
- Q: Kya yeh 3D printer mein use ho sakti hai?
- Yes! The pancake form factor is especially popular for direct-drive extruders due to its low weight and compact size.
- Q: Konsi library use karein Arduino ke liye?
- Use the
AccelStepperlibrary for smooth acceleration control, or the built-inStepper.hfor basic use.
✅ COD Available | 🚚 Fast Delivery Across Pakistan | 📦 Safely Packed
⚠️ [VERIFY] Checklist Before Publishing
- [ ] Confirm exact holding torque (N·cm)
- [ ] Confirm rated voltage (12V or 24V?)
- [ ] Confirm step angle (1.8° standard or 0.9°?)
- [ ] Confirm phase resistance & inductance from motor label/datasheet
- [ ] Confirm wire color-to-coil mapping
- [ ] Confirm shaft length (mm)
