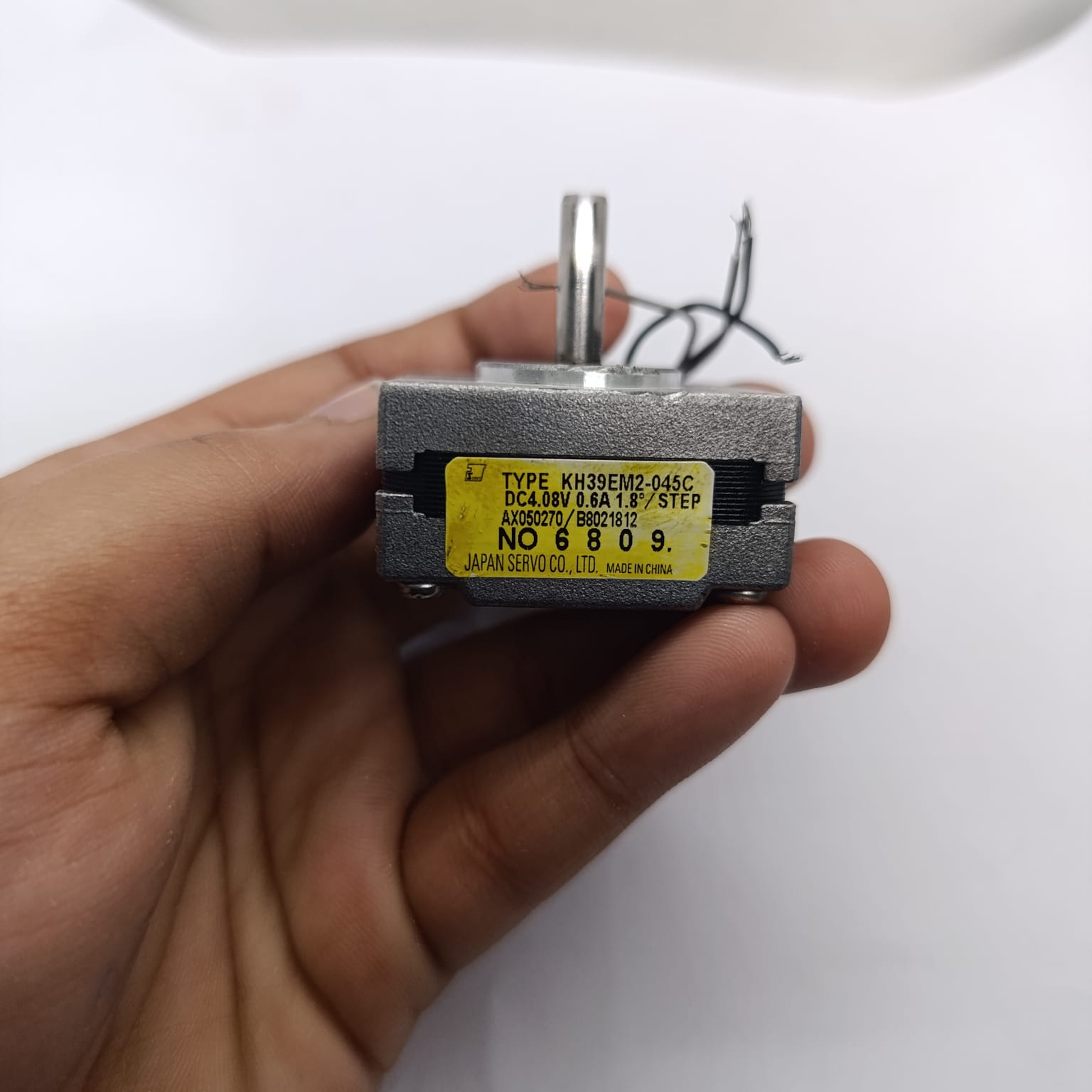

NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - held in a hand, showing the silver metal body, the top shaft, and the yellow specification label.

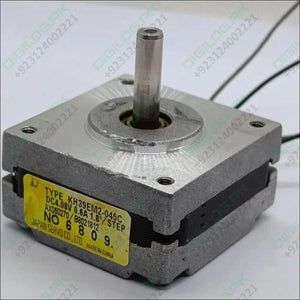

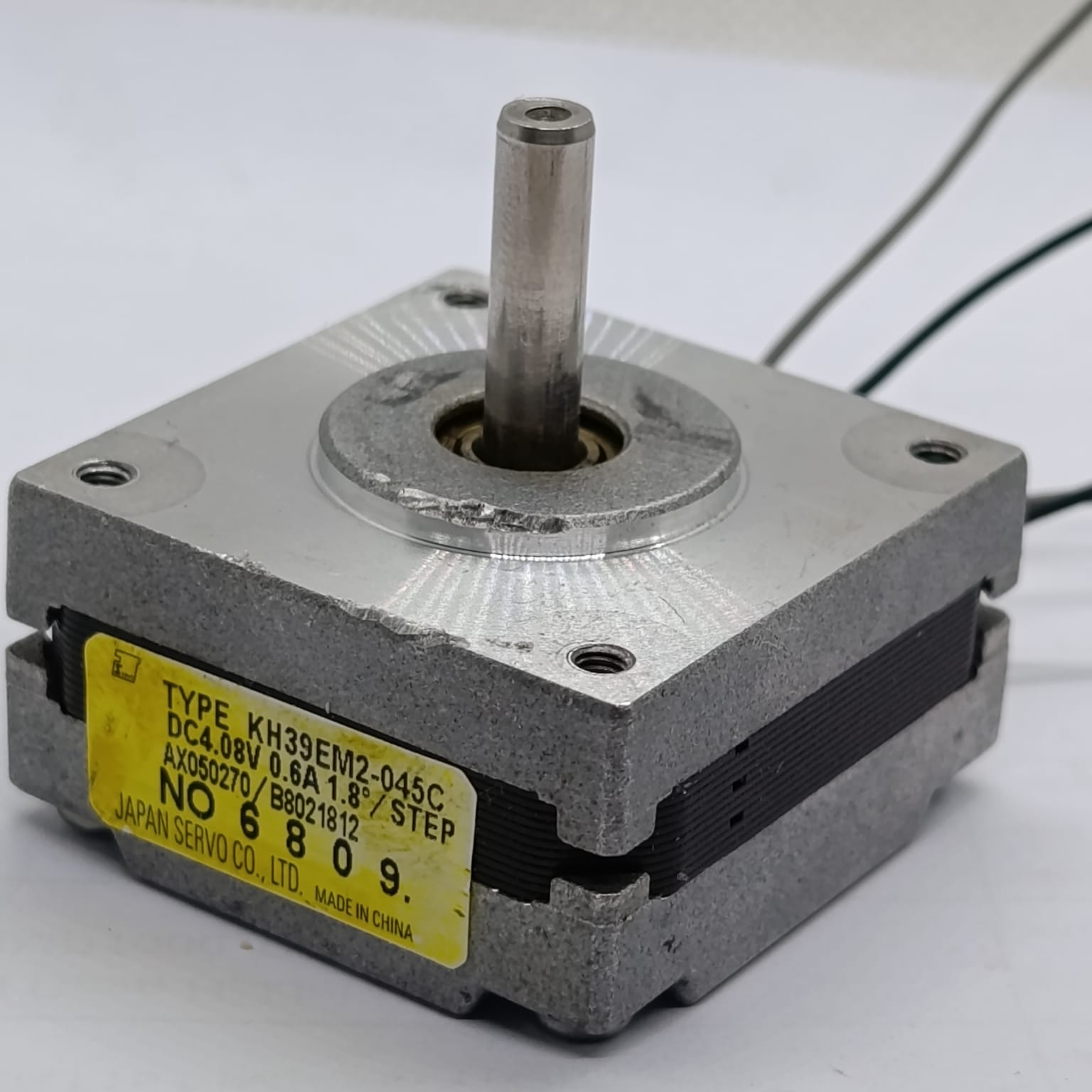

NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - a silver and black square pancake motor with a central metal shaft and a yellow specification label on its side.
NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - a square, silver-coloured pancake stepper motor with a central shaft and a four-wire connector on the top edge.

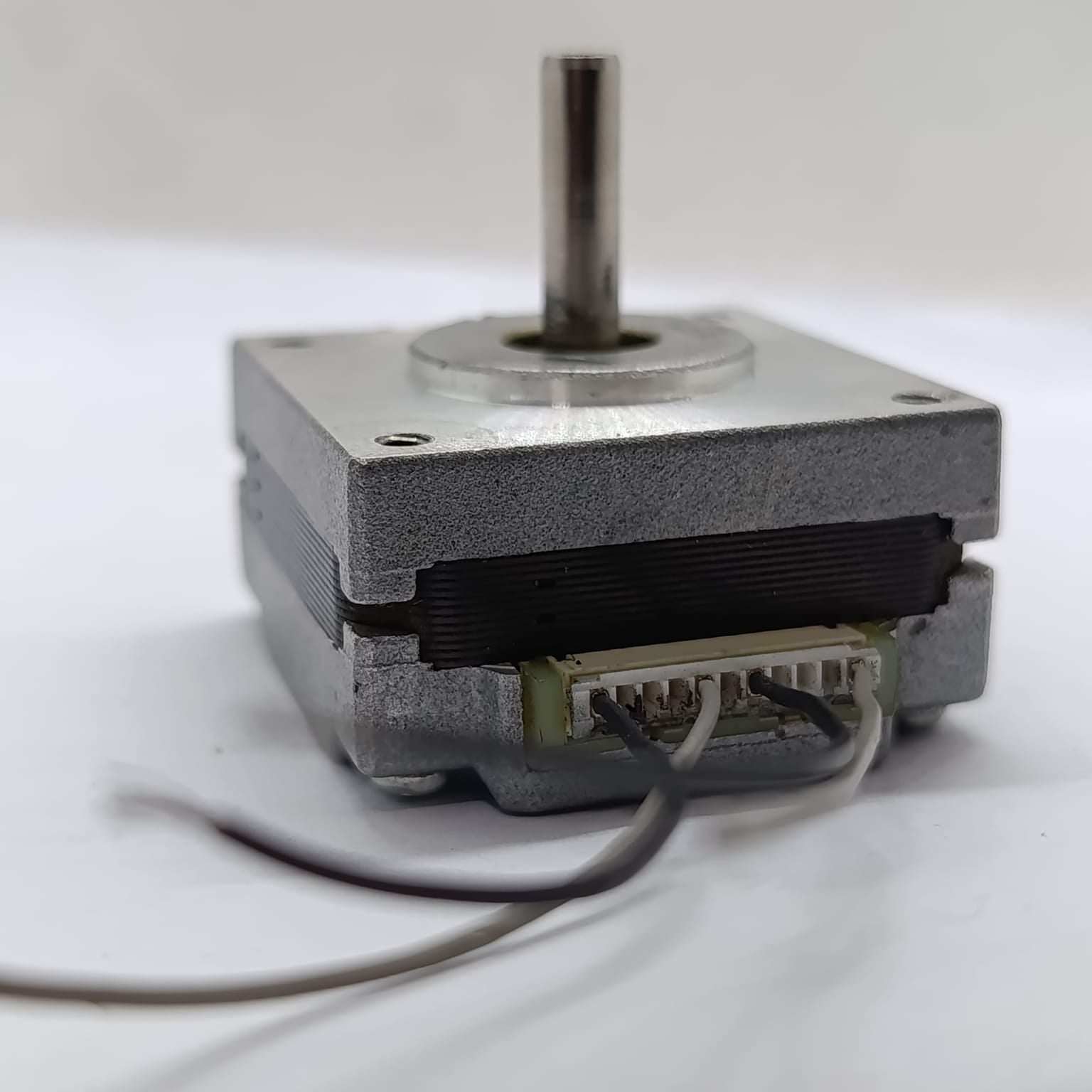

NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - a silver, square-shaped motor with a central metal shaft and a white multi-pin connector with two attached wires.
Sold out
NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - held in a hand, showing the silver metal body, the top shaft, and the yellow specification label.
NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - a silver and black square pancake motor with a central metal shaft and a yellow specification label on its side.
NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - a square, silver-coloured pancake stepper motor with a central shaft and a four-wire connector on the top edge.
NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor - a silver, square-shaped motor with a central metal shaft and a white multi-pin connector with two attached wires.

NEMA 14 Stepper motor KH39EM2-045C 0.6A JAPAN SERVO Pancake Stepper Motor

Sale price Rs 810
SKU: b225
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

The KH39EM2-045C is a 2-phase hybrid stepper motor designed for precision applications requiring compact dimensions and reliable performance.

Key Specifications:

  • Step Angle: 1.8° per step
  • Current per Phase: 0.6 A
  • Voltage per Phase: 4.08 V DC
  • Wiring Configuration: 6-wire output
  • Dimensions:
    • Body Length: 20 mm
    • Width/Height: 39 mm
    • Total Length: 36 mm
  • Shaft (Axle) Diameter: 5 mm
  • Sprocket Diameter: 12 mm
  • Weight: 0.10 kg

Features:

  • High Torque Output: Despite its compact size, the motor delivers substantial torque suitable for various precision tasks.
  • Low Vibration and Noise: Engineered to operate smoothly, minimizing operational noise and mechanical vibrations.
  • Durable Construction: Built with quality materials to ensure longevity and consistent performance.

Applications:

Ideal for use in equipment where space is limited, such as:

  • 3D printers
  • CNC machines
  • Robotics
  • Automated instrumentation

Availability in Pakistan:

While specific listings for the KH39EM2-045C model in Pakistan may be limited, similar stepper motors can be sourced from local suppliers or online marketplaces.

Considerations When Purchasing:

  • Compatibility: Ensure the motor's specifications align with your project's requirements.
  • Supplier Verification: Purchase from reputable suppliers to guarantee product authenticity.
  • Shipping and Customs: Be aware of potential shipping costs and customs duties when ordering internationally.
