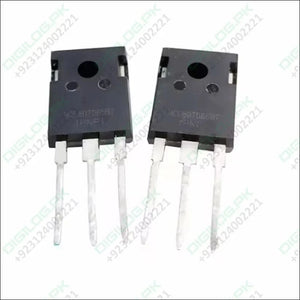

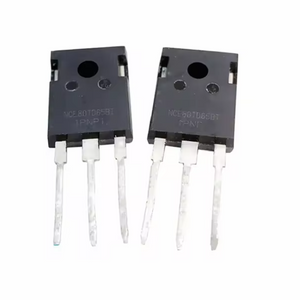

NCE80TD65 IGBT Power Transistor for Inverters, Motor Drives - two black, three-pin electronic components with NCE80TD65BT printed on the front, shown against a white background.

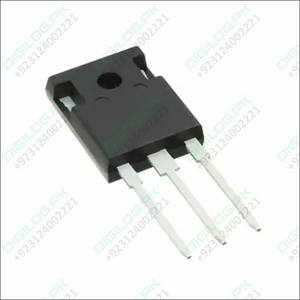

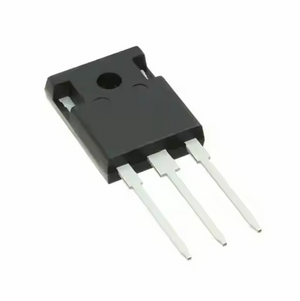

NCE80TD65 IGBT Power Transistor for Inverters, Motor Drives - a black, rectangular electronic component with three silver metal pins extending from the bottom.
Sold out
NCE80TD65 IGBT Power Transistor for Inverters, Motor Drives - two black, three-pin electronic components with NCE80TD65BT printed on the front, shown against a white background.
NCE80TD65 IGBT Power Transistor for Inverters, Motor Drives - a black, rectangular electronic component with three silver metal pins extending from the bottom.

NCE80TD65 IGBT Power Transistor for Inverters, Motor Drives

Sale price Rs 0
SKU:
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

NCE80TD65 IGBT - High-Efficiency Power Transistor for Industrial Applications

The NCE80TD65 is a high-performance insulated-gate bipolar transistor (IGBT) ideal for industrial applications. With fast switching speeds, low on-state voltage drops, and high voltage tolerance, it provides excellent efficiency and reliability for power electronics, including inverters and motor drives.

Benefits

  • Fast Switching Speed: Ensures minimal power loss during operation.
  • Low Voltage Drop: Enhances energy efficiency in power systems.
  • High Voltage Capacity: Supports up to 650V, suitable for high-voltage applications.
  • Compact TO-247 Package: Easy to integrate into circuits.
  • Thermally Robust Design: Operates reliably in harsh conditions.

Applications

  • Industrial Inverters
  • Motor Drives and Controls
  • DC-DC Converters
  • Solar Power Inverters
  • UPS Systems

Technical Specifications

Parameter Value
Collector-Emitter Voltage (VCE) 650V
Continuous Collector Current (IC) 80A
Gate Threshold Voltage (VGE) 2.0V - 4.0V
Switching Speed Fast Switching
Operating Temperature -55°C to +150°C
Package TO-247

External Resources

Related Products

Package Includes

  • 1 x NCE80TD65 IGBT Transistor
