Description

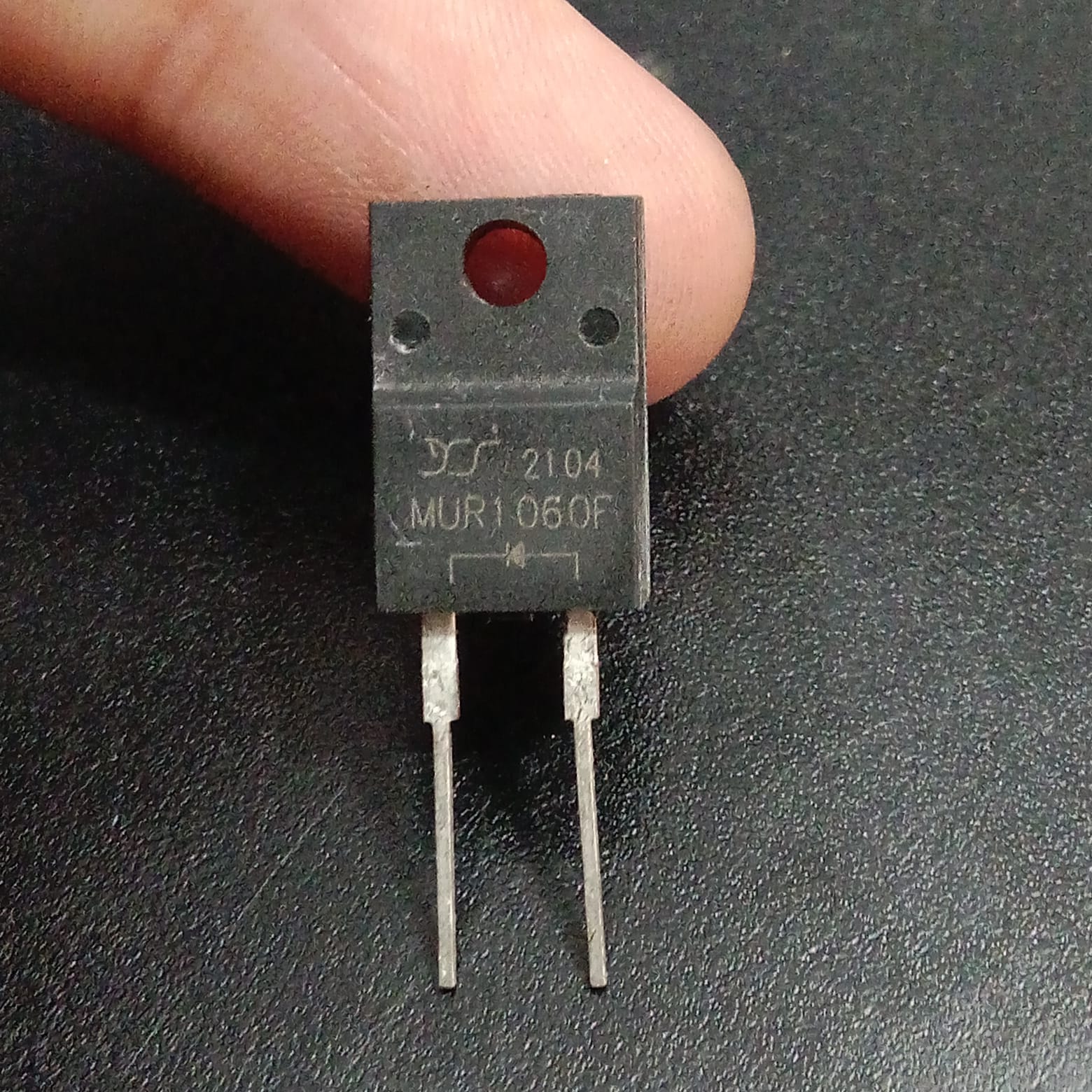

Marked "MUR1060F" on the package, this is a super-fast/ultrafast rectifier diode housed in the isolated two-lead ITO-220AC package, with the diode schematic symbol printed directly on the body confirming polarity. This series is designed to meet general commercial application requirements by providing low reverse recovery time (Trr), high-temperature tolerance, low leakage, and low forward voltage drop. The isolated package construction means it can typically be mounted directly to a heatsink without a separate insulating mica pad, simplifying thermal design in dense boards.

Key Specifications

• Type: Ultrafast Recovery Rectifier Diode
• Package Marking: MUR1060F (multiple manufacturers produce this generic part — GOOD-ARK, Diode Semiconductor Korea, DIYI, and others all list functionally equivalent MUR1060F datasheets)
• Package: ITO-220AC, isolated, 2-lead through-hole
• Reverse Voltage: 600V
• Forward Current: 10A
• Forward Voltage Drop (VF): 1.7V
• Peak Forward Surge Current: 150A
• Reverse Leakage Current (IR): 1µA
• Reverse Recovery Time (trr): 60ns
• Junction Temperature Range: -55°C to +150°C

Common Applications

• Output rectifiers in switch-mode power supplies (SMPS) and DC-DC converters
• Free-wheeling or boost diode in converters and motor control circuits
• Anti-parallel diode for high-frequency switching devices such as IGBTs
• Uninterruptible power supplies (UPS)
• Inductive heating, melting, ultrasonic cleaning, and welding equipment

Package Includes

• 1 x MUR1060F Ultrafast Rectifier Diode (ITO-220AC)
