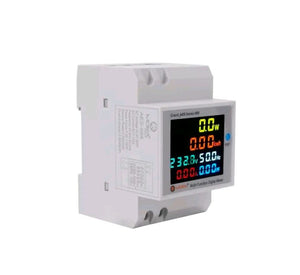

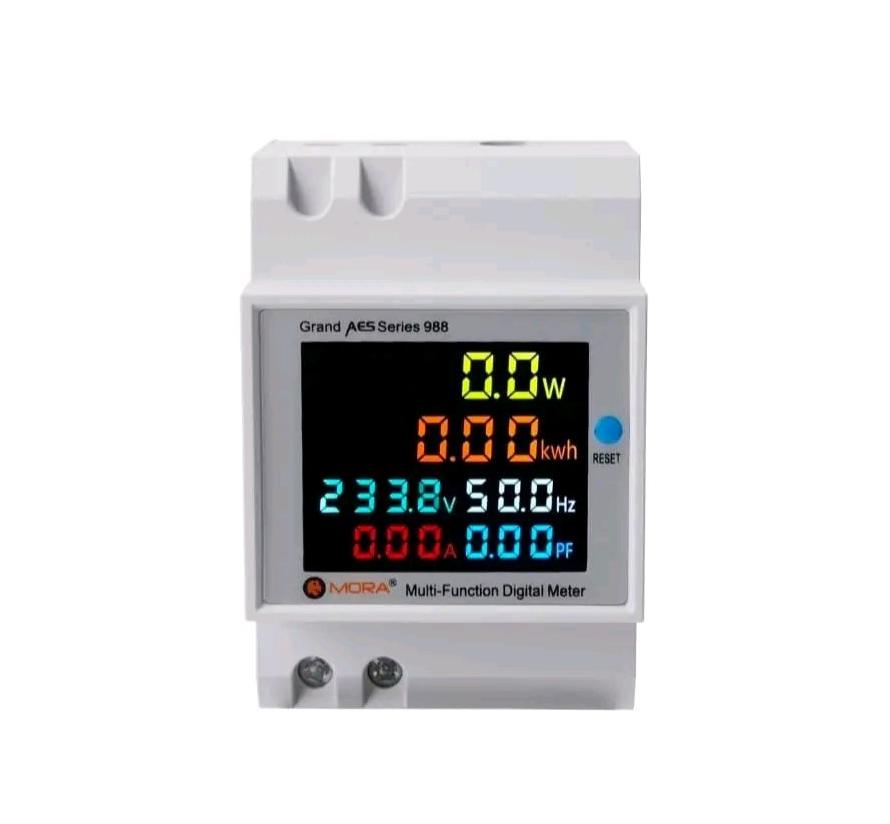

Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor
Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor
Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor
Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor
Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor
Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor

Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor

Sale price Rs 4,590
SKU: b170
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor

Mora AES-998 6IN1 din rail AC 220V 100A Voltage Current KWH Electric energy meter with Frequency and Power Factor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

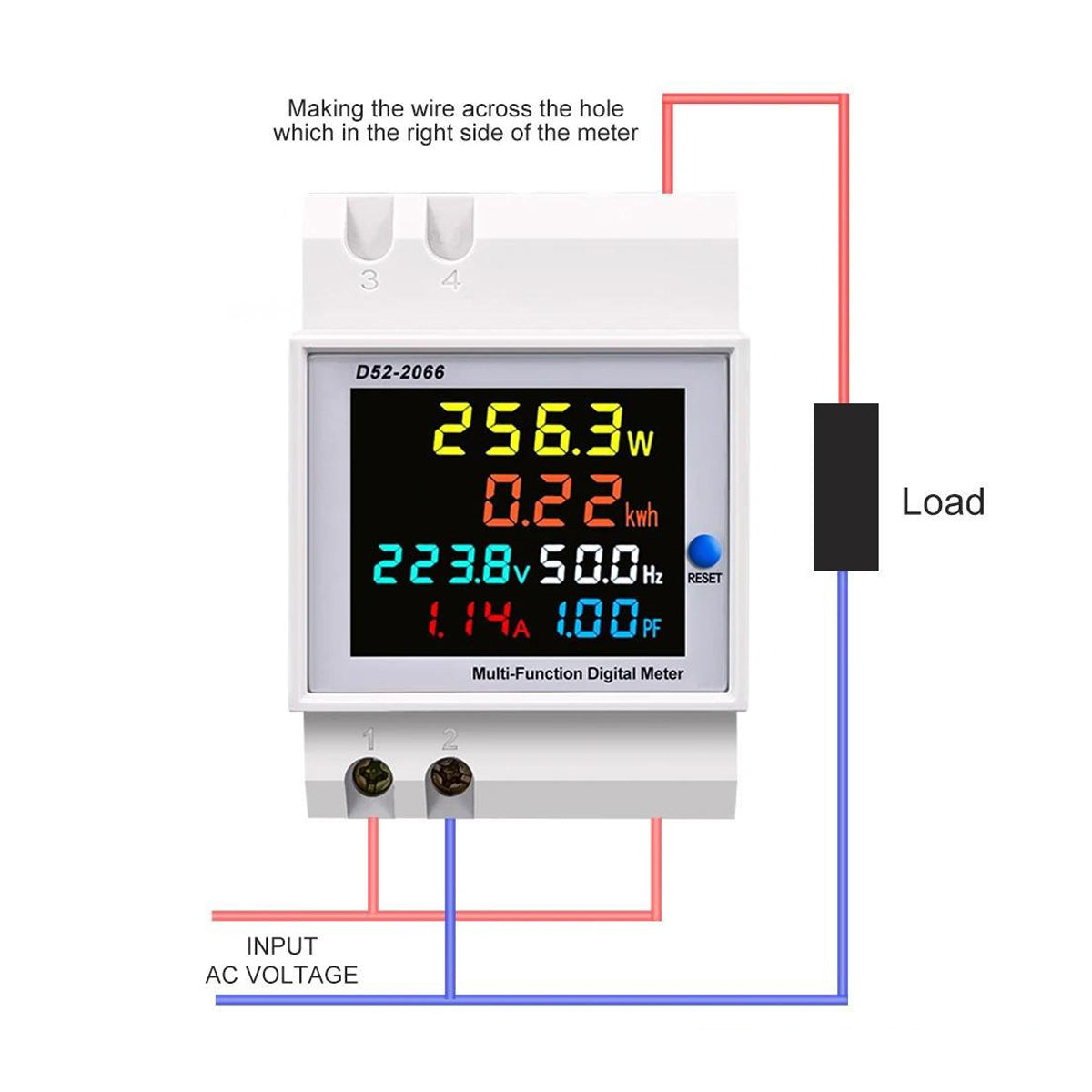

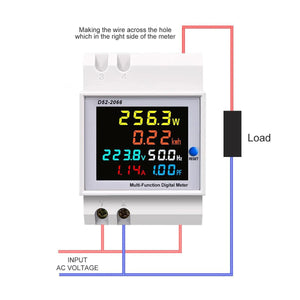

Here are the details for the Mora D52-2066 6IN1 Din Rail AC 220V 100A Voltage, Current, KWH Electric Energy Meter with Frequency and Power Factor:

Features:

  • Measurement Accuracy: ±1% ±2 words for reliable data.
  • Measuring Range:
    • AC Voltage: AC40-300V
    • Alternating Current (AC): 0.1-100A, with a display resolution of 0.01A.
  • Power Frequency: 45Hz-65Hz for various power systems.
  • Power Factor (PF): Measures power factor from 0.00 to 1.00.
  • Electricity (KWH) Measurement:
    • Range: 0- 99999 kWh.
  • Measuring Speed: Approximately 2 times per second.
  • Dimensions: 54mm x 80mm x 64mm (compact size for easy installation).
  • Installation Method: Rail type for convenient din rail mounting.

Applications:

This 6-in-1 energy meter is designed to measure and monitor various electrical parameters, including voltage, current, power factor, active power, energy consumption (kWh), and frequency. It's suitable for residential, commercial, and industrial use where accurate energy monitoring is required.

This meter is ideal for applications where precise control and monitoring of electricity consumption and system parameters are necessary.
