Description

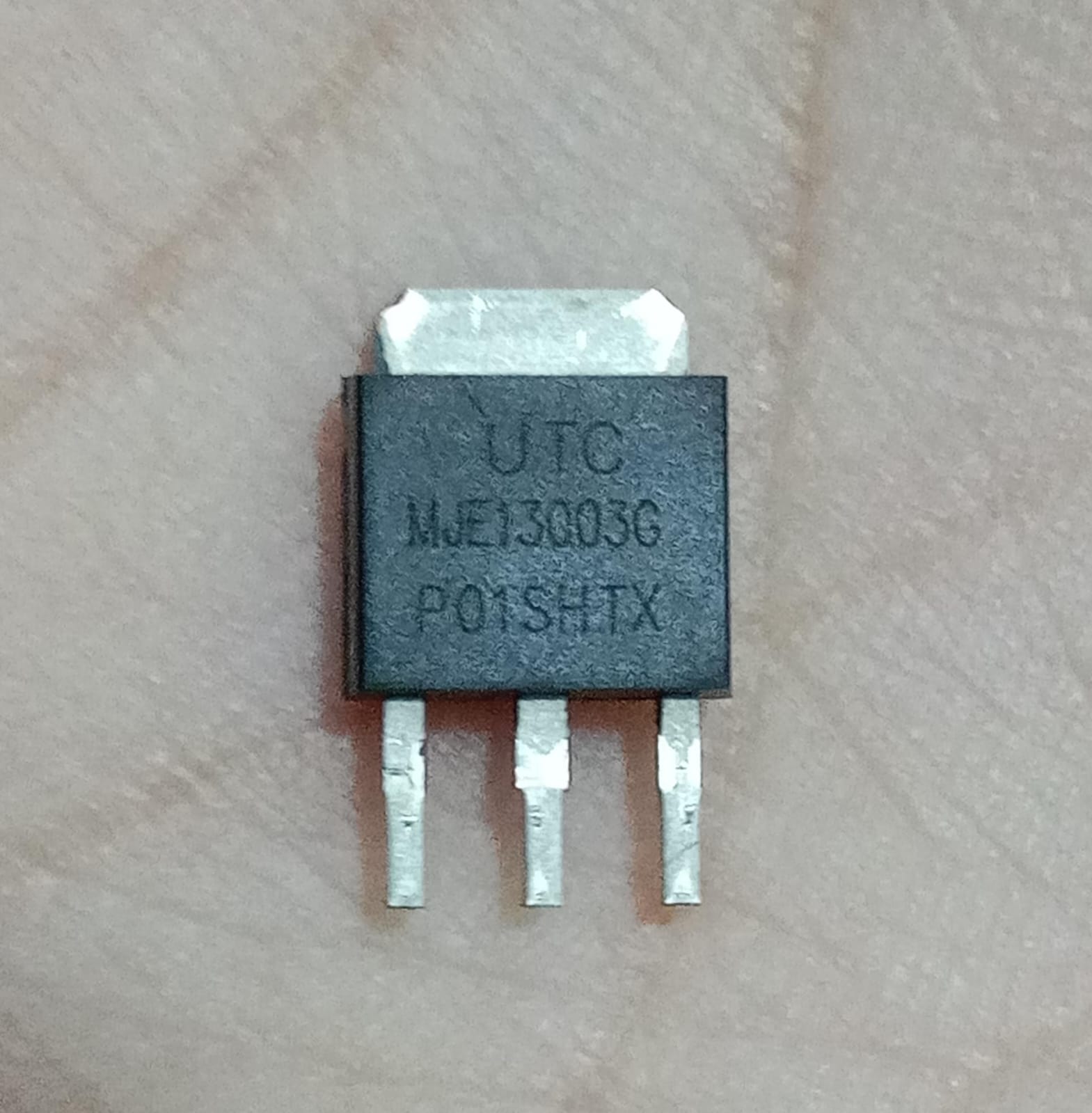

Marked "MJE13003G" on the package with UTC's logo, this is Unisonic Technologies' (UTC) MJE13003G (a variant of the 13003 family), a high-voltage, high-speed NPN silicon power bipolar junction transistor (BJT). It is engineered specifically for high-voltage, fast-switching power applications, featuring low collector-emitter saturation voltage and robust reverse-bias safe operating area (RBSOA).

Housed in a TO-126 package with a metal mounting tab, it provides reliable power handling and heat dissipation for off-line power switching and electronic ballast circuits.

Key Specifications

• Type: High-Voltage Fast-Switching NPN Power BJT Transistor

• Manufacturer: UTC (Unisonic Technologies Co., Ltd.)

• Package Marking: MJE13003G / P01SHTX

• Package: TO-126 (3-pin through-hole with mounting tab)

• Collector-Base Voltage ($V_{CBO}$): 700V

• Collector-Emitter Voltage ($V_{CEO}$): 400V

• Emitter-Base Voltage ($V_{EBO}$): 9V

• Collector Current ($I_C$): 1.5A (Continuous), 3.0A (Peak)

• Base Current ($I_B$): 0.75A max

• Collector-Emitter Saturation Voltage ($V_{CE(sat)}$), max: $0.5\text{ V}$ at $I_C = 0.5\text{ A}, I_B = 0.1\text{ A}$

• Power Dissipation ($P_D$): 20W ($T_C = 25^\circ\text{C}$)

• DC Current Gain ($h_{FE}$): 8 to 40

• Operating Junction Temperature Range: $-55^\circ\text{C}$ to $+150^\circ\text{C}$

Common Applications

• Electronic ballasts for Compact Fluorescent Lamps (CFL) and tube lights

• Switch-Mode Power Supplies (SMPS) and low-power flyback converters

• Battery chargers and AC-DC power adapters

• High-voltage, high-speed power switching and inductive load drivers
