Overview:

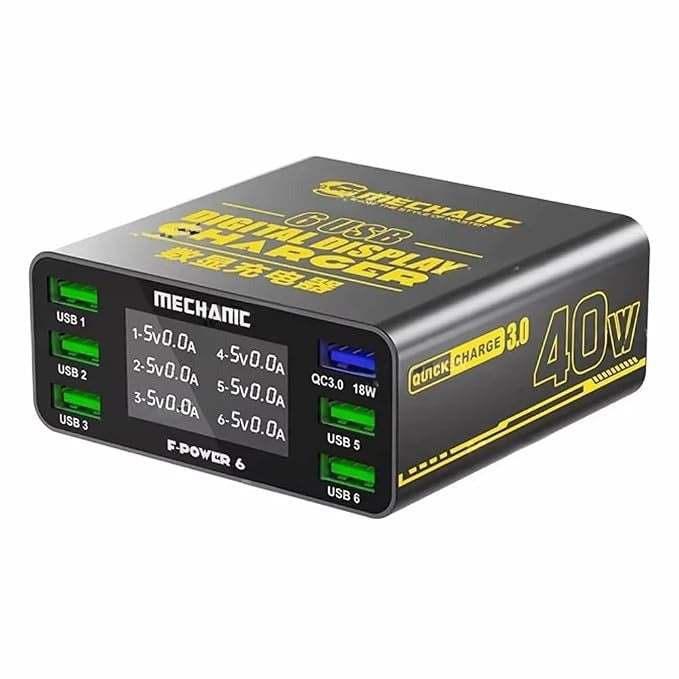

A 6-port desktop charging hub combining fixed 5V USB output with a dedicated Quick Charge 3.0 port, paired with a real-time LCD readout for per-port voltage/current monitoring — useful for bench diagnostics, repair workstations, or multi-device charging setups.

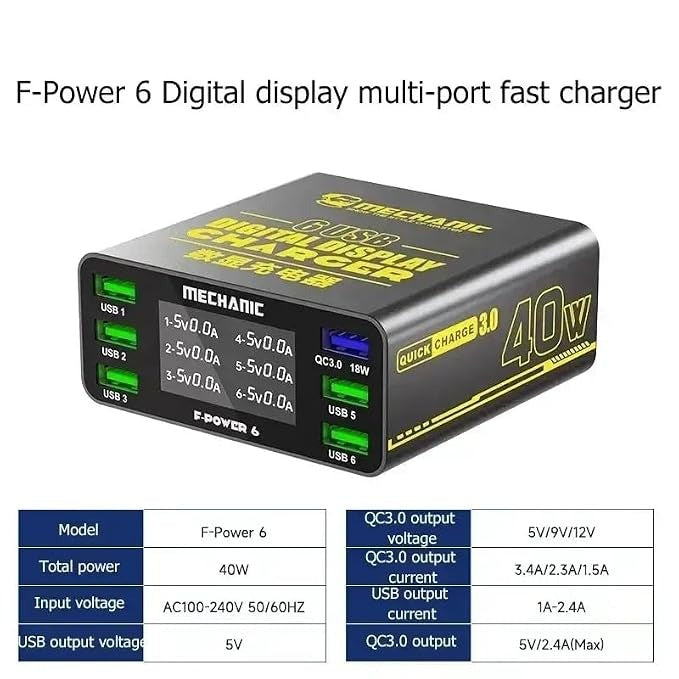

Specifications:

Features:

• Independent digital display charging detection — charging safety is visible in real time
• Multi-port design suitable for whole-family/multi-device use
• Standard quick-charge with intelligent compatibility, supports global wide-voltage input (100–240V)

Technical Notes:

• Each of the 5 standard ports operates at 5V with current output ranging 1A–2.4A depending on connected device (adaptive per port).
• The QC3.0 port supports adaptive fast-charge voltages (5V/9V/12V) with corresponding current steps (3A/2A/1.5A), independent of the 5 standard ports.
• Universal AC input (100–240V, 50/60Hz) makes the unit usable globally without a separate voltage converter.
• Total 40W is a shared power budget across all 6 ports combined — not 40W per port.

Common Applications:

• Mobile repair shops: Charging/testing multiple phones or batteries post-repair while confirming charge current on the LCD.
• Bench diagnostics: Verifying current draw to identify faulty cables, ports, or batteries.
• Multi-device charging stations: Offices, workshops, or shared/family spaces charging several devices from one outlet.
• QC-compatible fast charging: Using the QC3.0 port for quick top-ups on supported Android devices.
• Global travel/use: Wide voltage input (100–240V) suits use across different countries without extra converters.

Package Includes:

• 1x MECHANIC F-Power 6 Charging Station
