Meanwell 120W 5A 24V 5A Meanwell Power Supply
Pickup available at Digilog Electronics
Usually ready in 2 hours

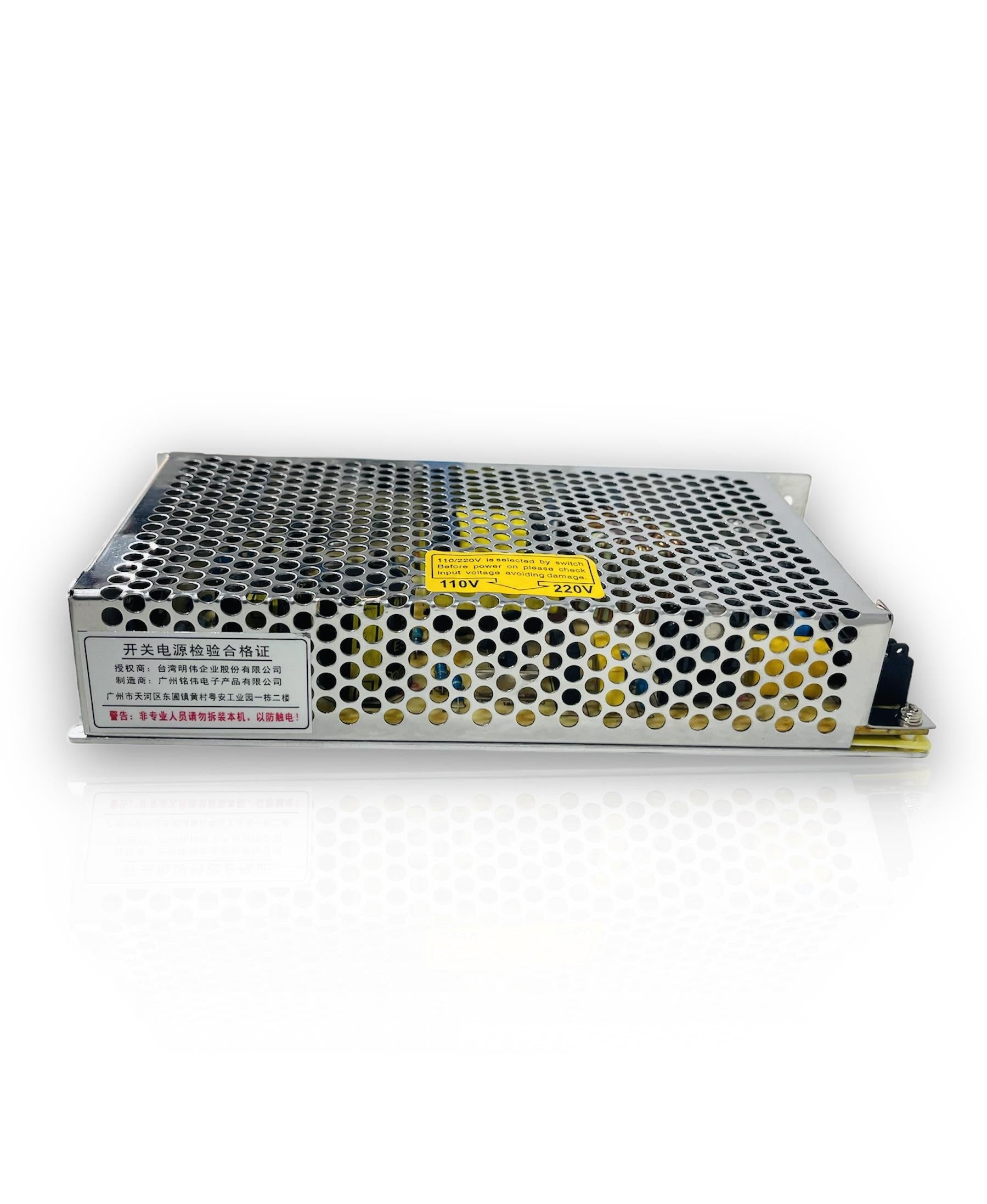

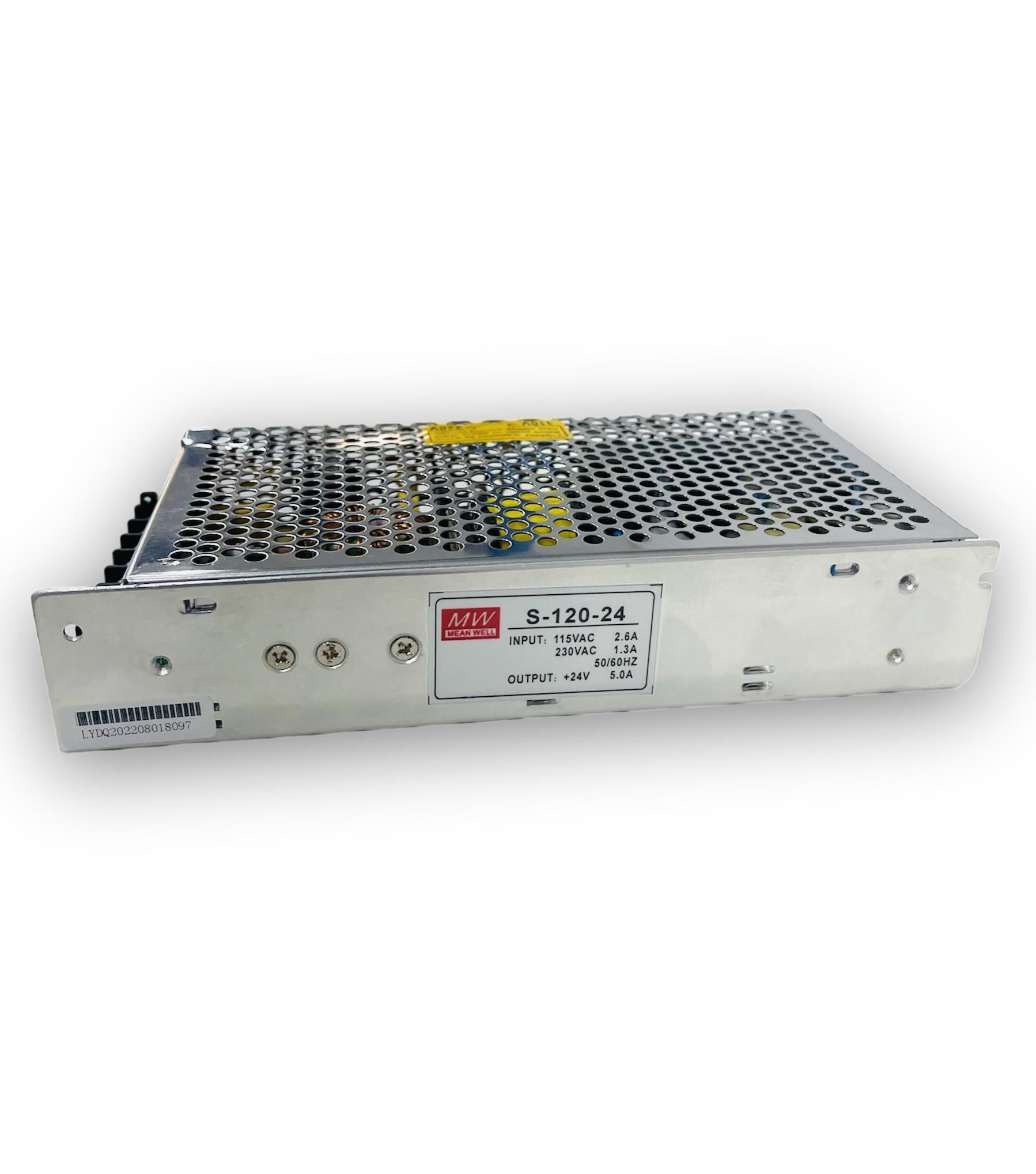

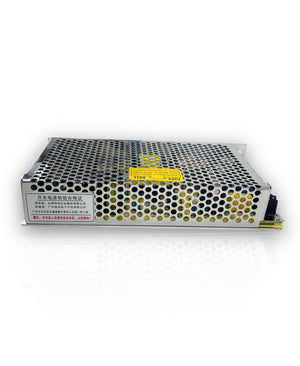

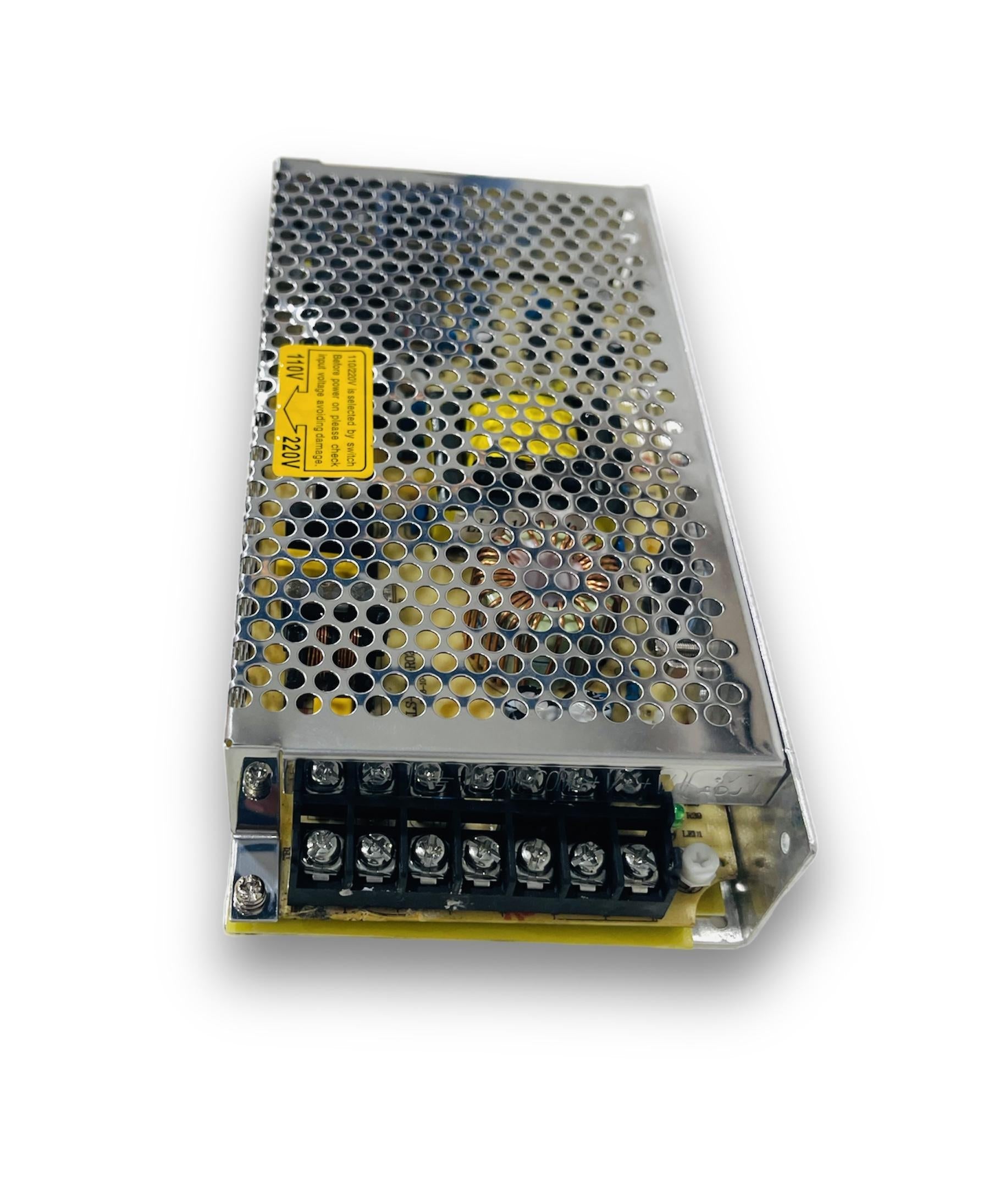

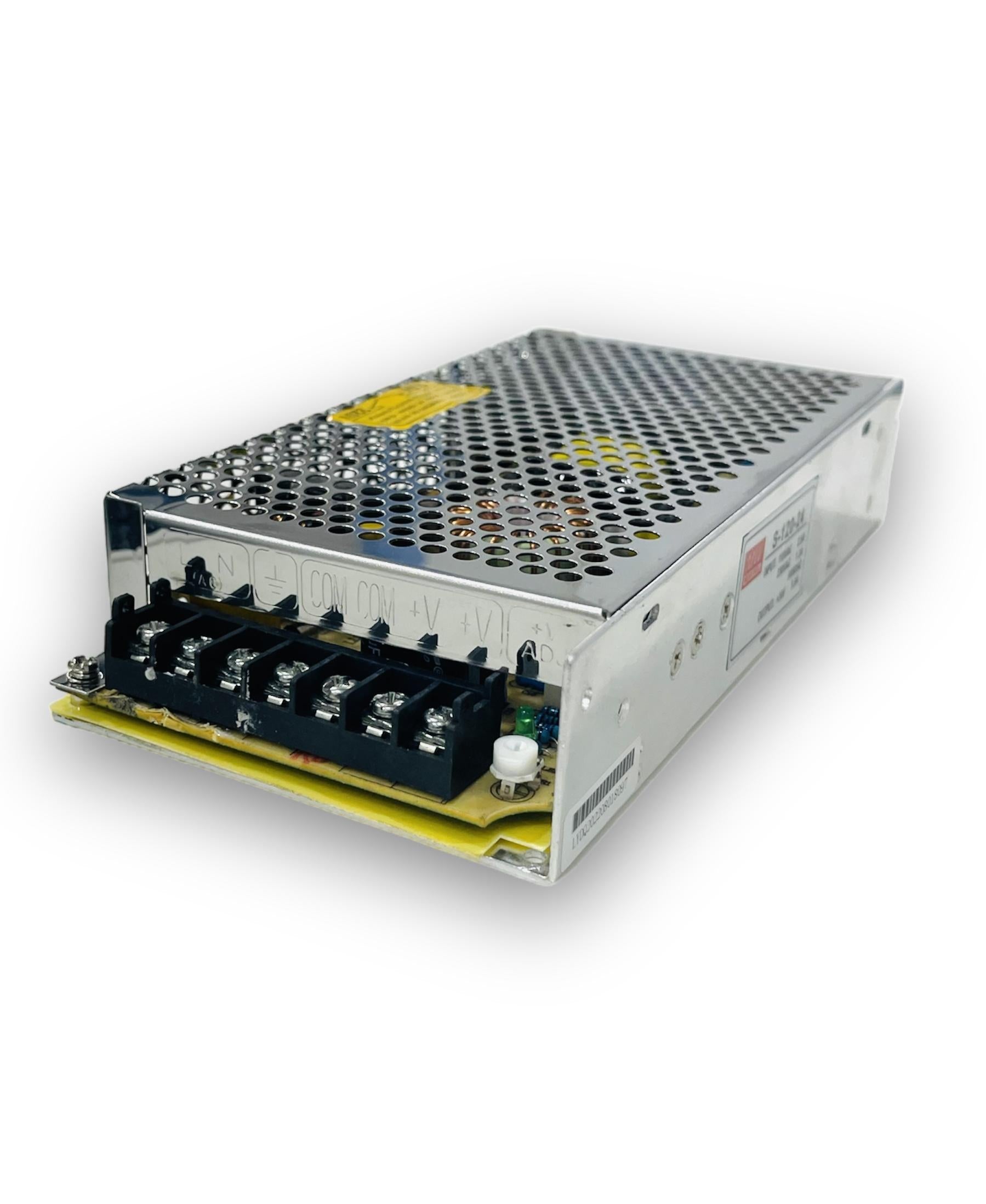

Meanwell 120W 5A 24V 5A Meanwell Power Supply
Mean Well is a well known brand for high quality products. This 24v switched-mode power supply / switch-mode power supply / switching-mode power supply (SMPS) is a high quality electronic circuit that converts power using switching devices that are turned on and off at high frequencies, and storage components such as inductors or capacitors to supply power when the switching device is in its non-conduction state. The meanwell 24V 5A SMPS Adapter uses High-temperature resistant copper enameled wire and adopts a double winding U-shaped iron core.
Features Of Mean Well 24V 5A Switching Transformer Dc Power Supply:
- Good anti-interference performance and high reliability.
- Low operating temperature and long service life.
- Wide input voltage range, (100-240V) in line with global usage standards.
- Good insulation performance and high electric strength.
- Full load high temperature burning machine, 100% aging test.
- Protection function: Overload protection, Short circuit protection
- It recovers automatically after protection
- The device is great for Home Appliances as a switching power supply.
Specifications Of 24V 120W Switched Mode Transformer SMPS For LED lighting:
- DC-output: 24V, DC, adjustable via potentiometer, range 20V – 28V
- DC-current continuous max.: 5A
- Max. power : 120W
- Required min-load: 0A
- Ripple max.: 150mVpp
- Efficiency: typical 87%
- Working temperature: -20 to +70°C
- AC-input range: 88 – 264V AC or 124 – 370V DC
- Connector: screw-terminal, M4
- Weight: 0.5kg measure
- Dimensions LxWxH: mm
Package Include:
- 1x Switching Power Supply SMPS 24V 120W 5A
