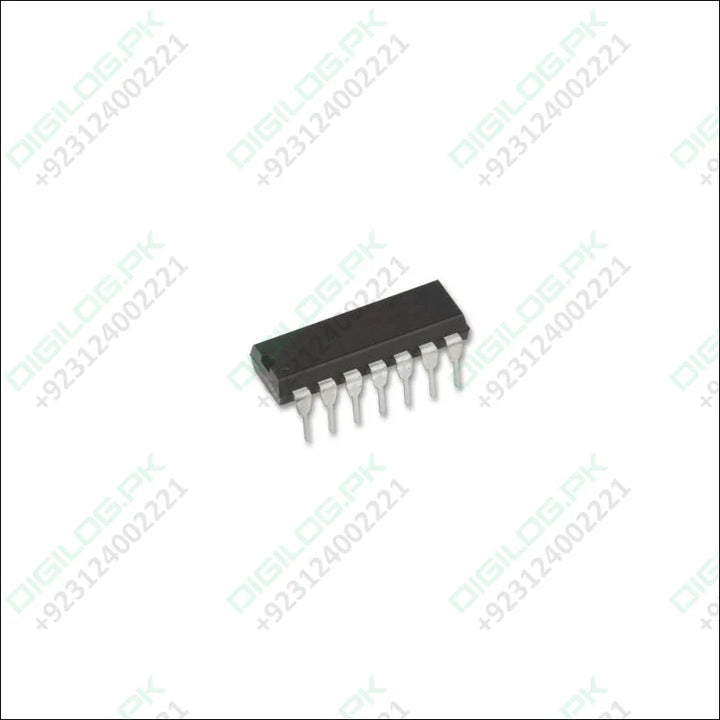

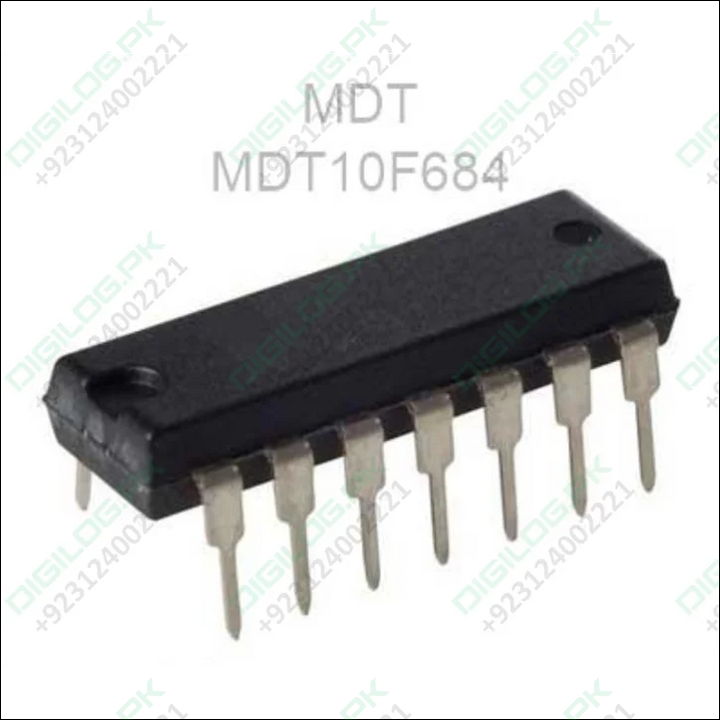

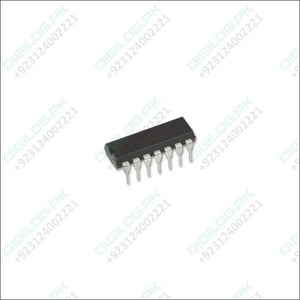

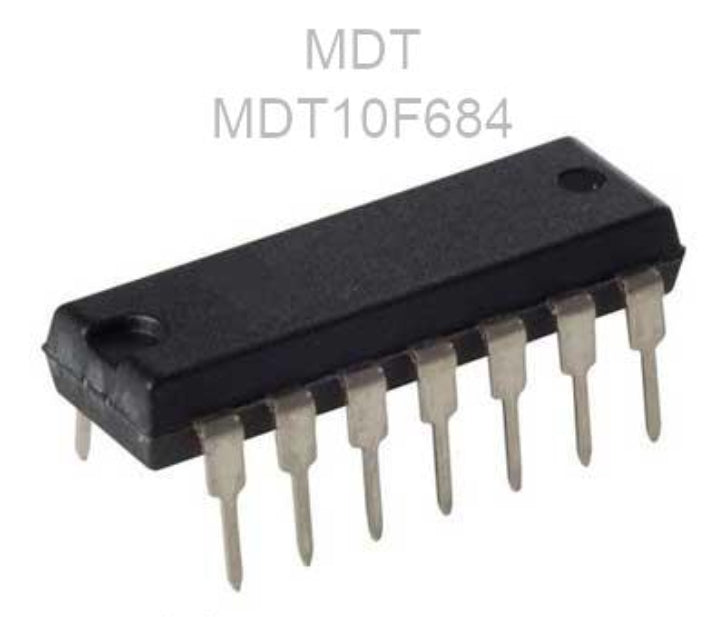

MDT10F684 8-bit Microcontroller – DIP-14, 2k Flash, 128B EEPROM, 64B RAM, 20MHz, ADC, PWM, Low-power MCU
Pickup available at Digilog Electronics
Usually ready in 2 hours
Description
The MDT10F684 DIP-14 is a high-performance 8-bit microcontroller from MDT (Micon Design Technology), offering efficient performance in a DIP-14 through-hole package — ideal for breadboard prototyping and permanent PCB designs.
With 2K×14 Flash ROM, 128×8 EEPROM, and 64B RAM, the MDT10F684 provides solid memory capacity for embedded applications. Its low-power design, built-in ADC (10-bit), PWM, timers, and comparator make it a reliable choice for industrial automation, sensor interfaces, IoT devices, and consumer electronics.
🔧 Key Features
-
✅ 2K×14-bit Flash Memory
-
🧠 128B EEPROM + 64B SRAM
-
⚡ 20MHz Max Frequency
-
🔄 8-channel 10-bit ADC
-
🔉 1x CCP for PWM / Timers
-
🧪 Comparator Functionality
-
🔋 Ultra Low-Power Sleep Mode (<1µA)
-
🧩 Supports WDT, POR, PED
-
🌡️ Operating Temp: -40°C to +85°C
-
🔌 Through-hole DIP-14 Package – Easy to solder or breadboard
📋 Technical Specifications
| Attribute | Specification |
|---|---|
| Model | MDT10F684 |
| Core | 8-bit |
| Flash ROM | 2K × 14 bits |
| EEPROM | 128 × 8 bits |
| RAM | 64 bytes |
| Package | DIP-14 |
| I/O Pins | 11 I/O + 1 input-only |
| ADC | 8-channel, 10-bit |
| Comparator | 1-channel |
| Timers/CCP | 2 Timers + PWM support |
| Operating Voltage | 2.3V – 5.5V |
| Clock Frequency | Up to 20MHz |
| Sleep Current | <1μA @ 5V |
| Operating Temperature | -40°C to +85°C |
| Certifications | RoHS, Lead-Free |
📦 Package Includes
-
1 × MDT10F684 DIP-14 Microcontroller
Datasheet
https://www.mdtmcu.com/upfiles/file/MDT/MDT10F684.pdf
