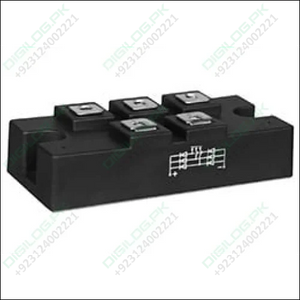

The MDS150-16 Three Phase Diode Bridge Rectifier efficiently converts AC to DC, making it perfect for high-power applications. It delivers 150A of current and operates at 1600V, ensuring stable and reliable performance in industrial and commercial power systems. Many industries use this rectifier in motor drives, UPS systems, welding machines, and power inverters to maintain smooth and efficient operations.

Key Features

• Handles up to 150A of current, making it ideal for heavy-duty applications.
• Supports high voltage up to 1600V, ensuring safe and efficient power conversion.

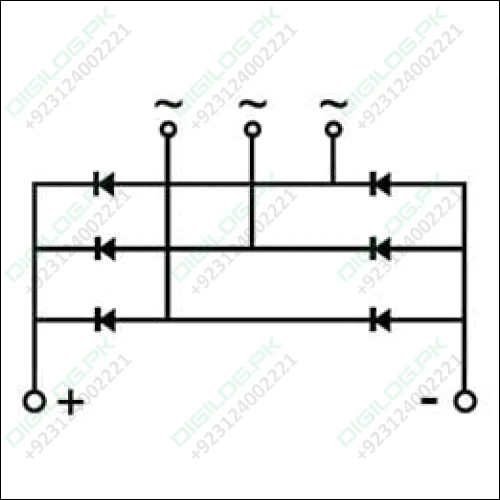

• Uses a three-phase bridge design for smooth AC to DC conversion.
• Offers high surge capability, which helps manage sudden voltage spikes.

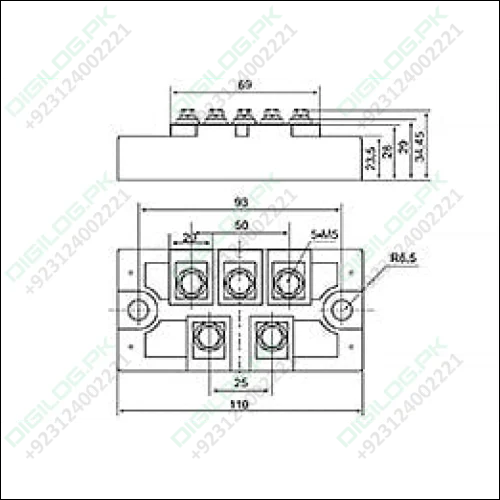

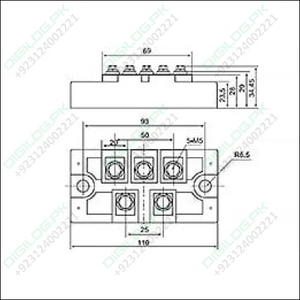

• Features a compact and durable design for easy mounting and effective heat dissipation.

Applications

The MDS150-16 Three Phase Diode Bridge Rectifier is commonly used in:

• AC to DC power conversion in industrial power supplies.
• Rectification in motor drives and frequency inverters.
• Power control in welding machines and industrial automation.
• Battery charging and UPS (Uninterruptible Power Supply) systems.
• High-power DC circuits that require stable voltage regulation.

Related Products

Check out these components for building your power system:

• Rectifier Bridge with Heat Sink
• Semikron IGBT Module
• Voltage Regulator Module

Learn More

Find out more about three-phase rectifiers and their applications:

• Three Phase Diode Bridge Rectifier
• Electronics Tutorials: Diode Bridge Rectifiers

Related Video

Frequently Asked Questions

1. What does a three-phase diode bridge rectifier do?
It converts AC power to DC power, making it useful for motor drives, inverters, UPS systems, and industrial power applications.

2. Does this rectifier need a heat sink?
Yes, a heat sink is recommended to ensure proper heat dissipation and prevent overheating during high-power use.

3. Can I use this rectifier for battery charging?
Absolutely! The MDS150-16 works well in high-power battery charging systems and UPS power backups.

Package Includes

• 1 x MDS150-16 Three Phase Diode Bridge Rectifier
