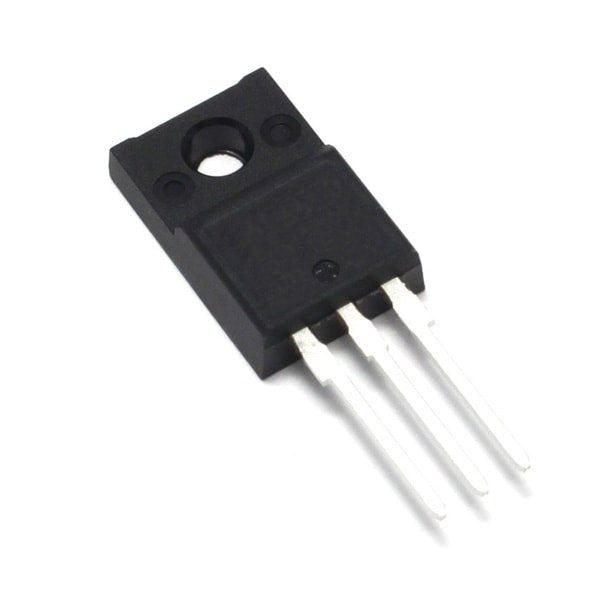

ower up your electronic projects with the MBRF20150CT, a high-efficiency Dual Schottky Barrier Rectifier. Designed for high-frequency applications, this component features a Common Cathode configuration housed in a fully isolated TO-220F plastic package. This "Full Pack" design provides built-in electrical isolation, eliminating the need for additional insulating kits when mounting to heatsinks.

Engineered for low power loss and high efficiency, the MBRF20150CT offers a low forward voltage drop and rapid switching speeds. It is the ideal choice for Switch Mode Power Supplies (SMPS), DC-to-DC converters, and reverse battery protection circuits. Whether you are repairing a power board or designing a new circuit, this robust diode ensures reliable performance under load.

Key Features

• High Efficiency: Extremely low forward voltage drop minimizes heat generation.

• Fully Isolated Package: TO-220F plastic body provides electrical isolation (no mica sheet needed for heatsink).

• High Current Capability: Handles up to 20A total current (10A per leg).

• High Voltage Rating: Withstands up to 150V reverse voltage.

• Protection: Guard ring for over-voltage protection.

• High Surge Capability: Excellent resistance to current spikes.

Technical Specifications

Applications

• Switch Mode Power Supplies (SMPS)

• High-frequency Inverters

• Solar Panel Junction Boxes

• Free-Wheeling Diodes

• Polarity Protection

• LED Drivers

Package Includes

• 1 x MBRF20150CT Schottky Rectifier Diode
