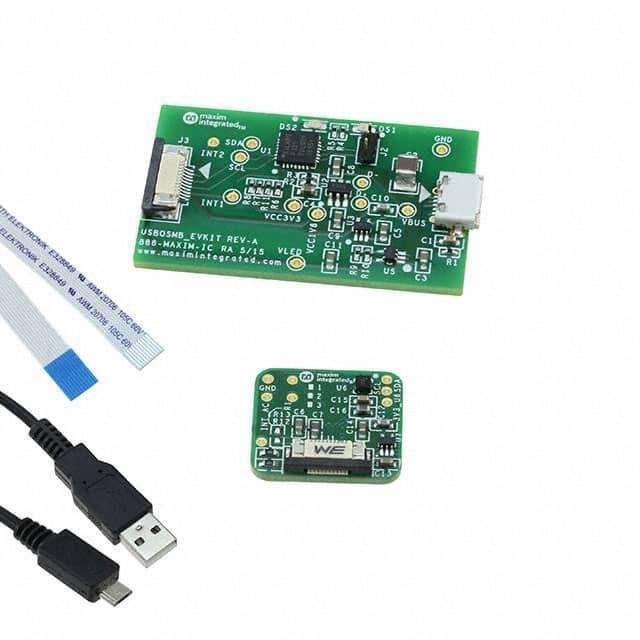

MAX30101/ MAX30102 Accevkit - two green circuit boards, a flat ribbon cable, and a USB cable on a white background.

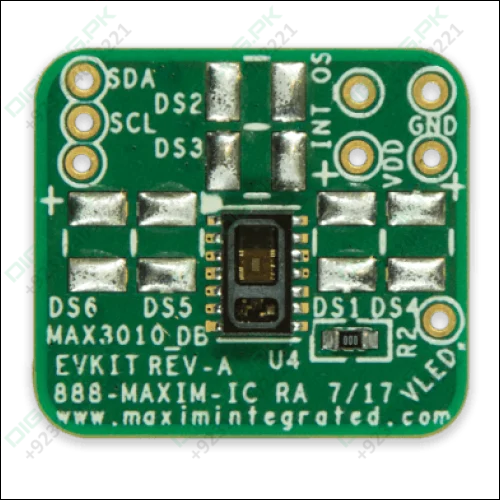

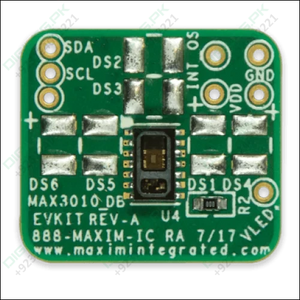

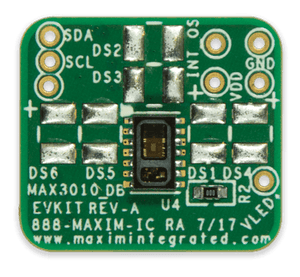

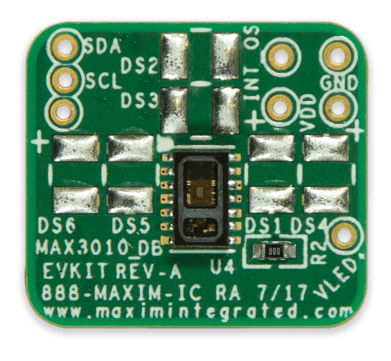

MAX30101/ MAX30102 Accevkit - a green square printed circuit board featuring a central sensor, labeled pins for SDA, SCL, INT, VDD, GND, and VLED.

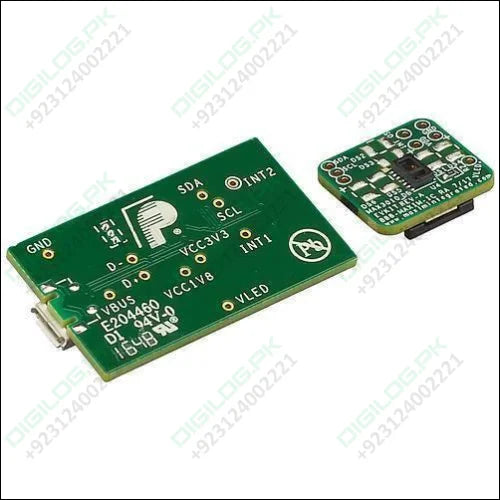

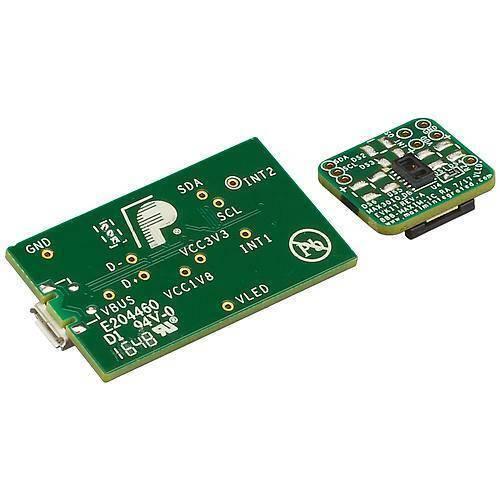

MAX30101/ MAX30102 Accevkit - shown as two green printed circuit boards, one with a micro-USB port and the other with a small black sensor component.

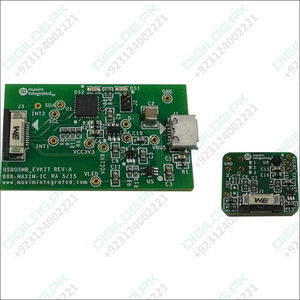

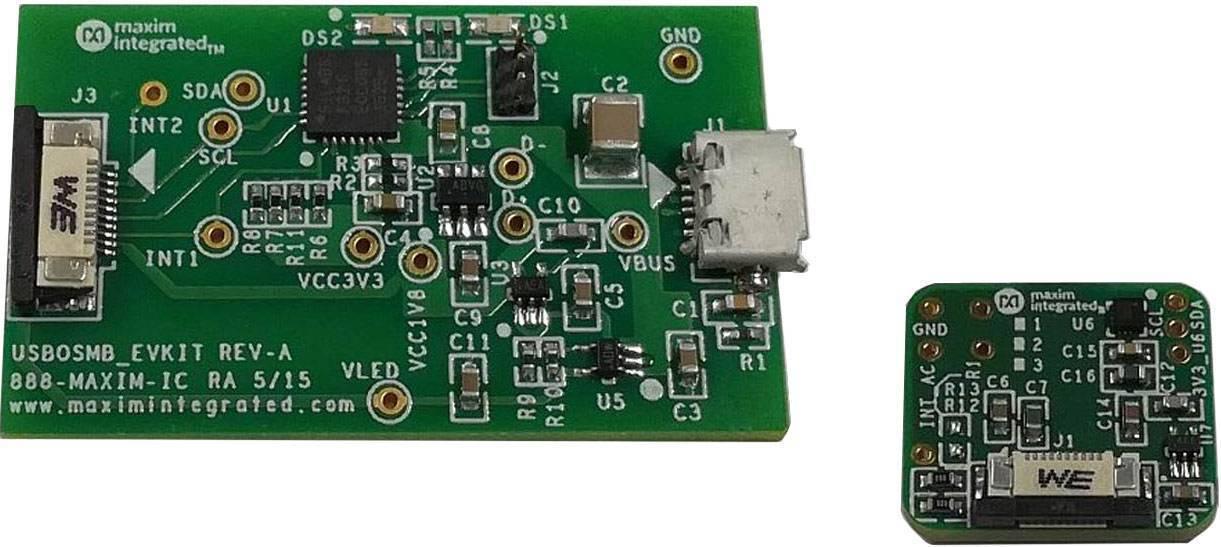

MAX30101/ MAX30102 Accevkit - two green rectangular circuit boards, one with a micro-USB port and the other with a small ribbon cable connector.

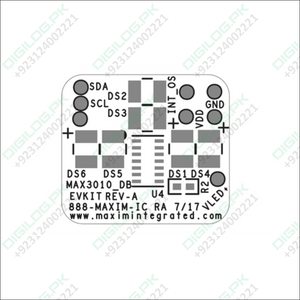

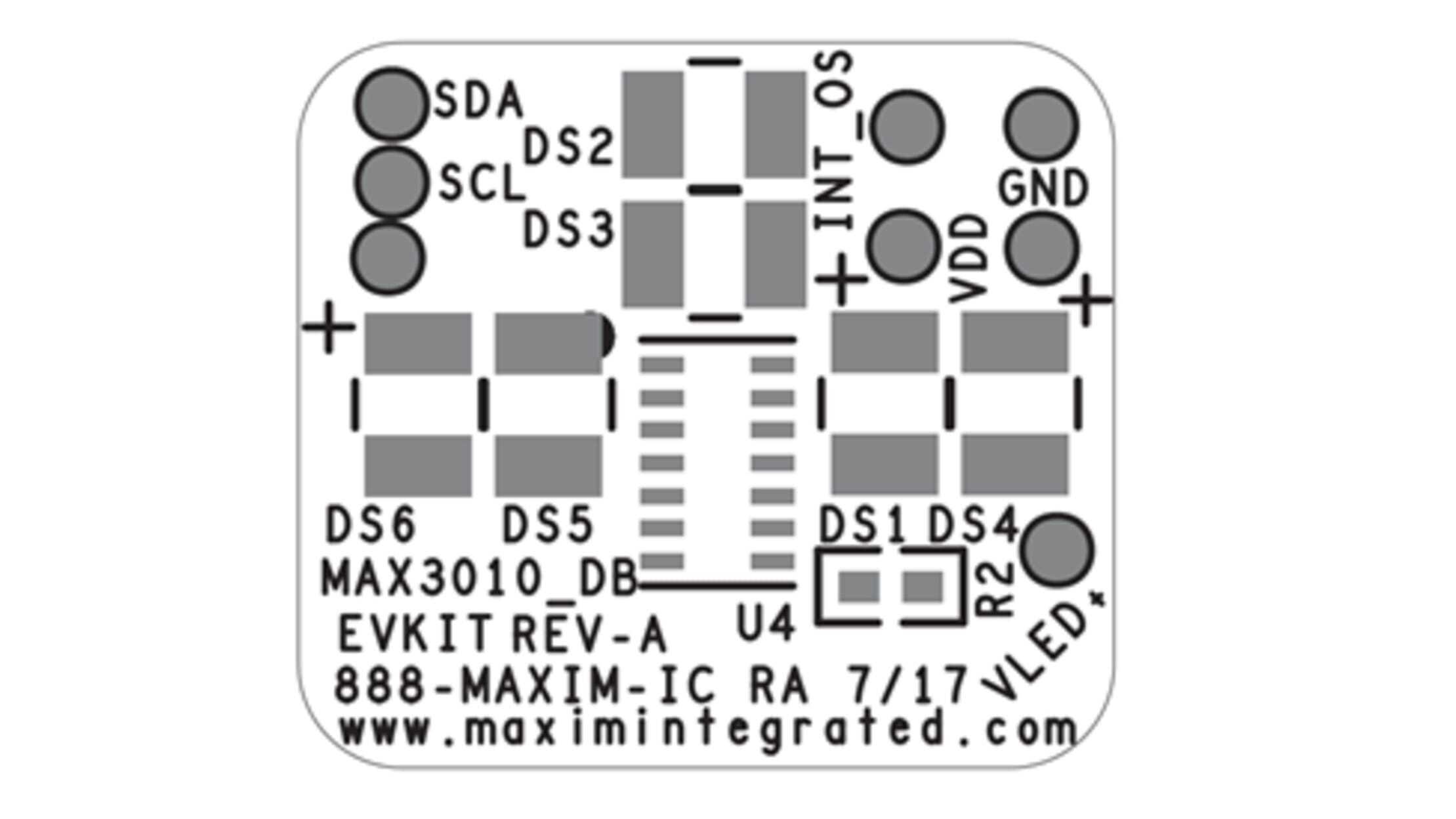

MAX30101/ MAX30102 Accevkit - a white PCB diagram showing component footprints, labels for SDA, SCL, INT, VDD, GND, VLED, and the MAX3010_DB text.
MAX30101/ MAX30102 Accevkit - two green circuit boards, a flat ribbon cable, and a USB cable on a white background.
MAX30101/ MAX30102 Accevkit - a green square printed circuit board featuring a central sensor, labeled pins for SDA, SCL, INT, VDD, GND, and VLED.
MAX30101/ MAX30102 Accevkit - shown as two green printed circuit boards, one with a micro-USB port and the other with a small black sensor component.
MAX30101/ MAX30102 Accevkit - two green rectangular circuit boards, one with a micro-USB port and the other with a small ribbon cable connector.
MAX30101/ MAX30102 Accevkit - a white PCB diagram showing component footprints, labels for SDA, SCL, INT, VDD, GND, VLED, and the MAX3010_DB text.

MAX30101/ MAX30102 Accevkit

Sale price Rs 20,160
SKU: b121
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

MAX30101/ MAX30102 Accevkit - two green circuit boards, a flat ribbon cable, and a USB cable on a white background.

MAX30101/ MAX30102 Accevkit

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
MAX30101/ MAX30102 Accevkit - two green circuit boards, a flat ribbon cable, and a USB cable on a white background.
MAX30101/ MAX30102 Accevkit
Sale priceRs 20,160

MAX30101/MAX30102 ACCEVKIT In Pakistan

Product Overview

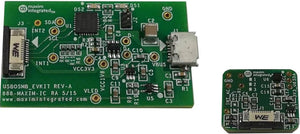

The MAX30101/MAX30102ACCEVKIT# from Maxim Integrated Products is an evaluation kit (EV kit) for MAX30101. It provides a proven design to evaluate the MAX30101 integrated pulse-oximetry and heart-rate monitor integrated circuit (IC). The EV kit consists of two boards. USBOSMB is the motherboard and MAX30101DBEVKIT is the daughterboard that includes the MAX30101 and an accelerometer. The EV kit is powered using the USB supply to generate +1.8V for the sensor and +4.5V for the internal LEDs of the MAX30101 and +3.3V for the accelerometer. It comes with a MAX30101EFD+ installed in a 14-pin OESIP package. Typical applications include fitness assistant devices and wearable devices.

  • Real-time monitoring
  • Flexible PCB design
  • Proven PCB layout
  • Fully assembled and tested
  • Windows® 7 and Windows 8/8.1 compatible software



Product Attributes

TYPE

DESCRIPTION

SELECT

Category

Development Boards, Kits, Programmers

Evaluation Boards - Sensors

Mfr

Analog Devices Inc./Maxim Integrated

Series

-

Package

Box

Product Status

Obsolete

Sensor Type

Medical, Pulse Oximeter (PO or SpO2)

Sensing Range

-

Interface

I²C

Sensitivity

-

Voltage - Supply

1.7V ~ 2V

Embedded

-

Supplied Contents

Board(s), Cable(s)

Utilized IC / Part

MAX30101

Base Product Number

MAX30101



Package includes:

1x USBOSMB Assembly Kit

1x Max30102DBEV KIT Assembly Kit

1x Cable+ FCC 0.5mm Type 1 10P 200mm

1x ASSMANN WSW AK67421-1 1 PC usb to micro usb cable
