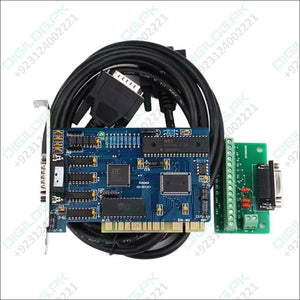

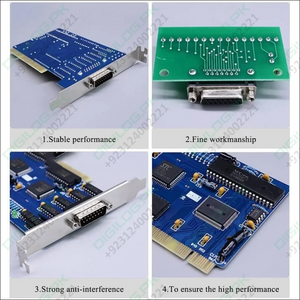

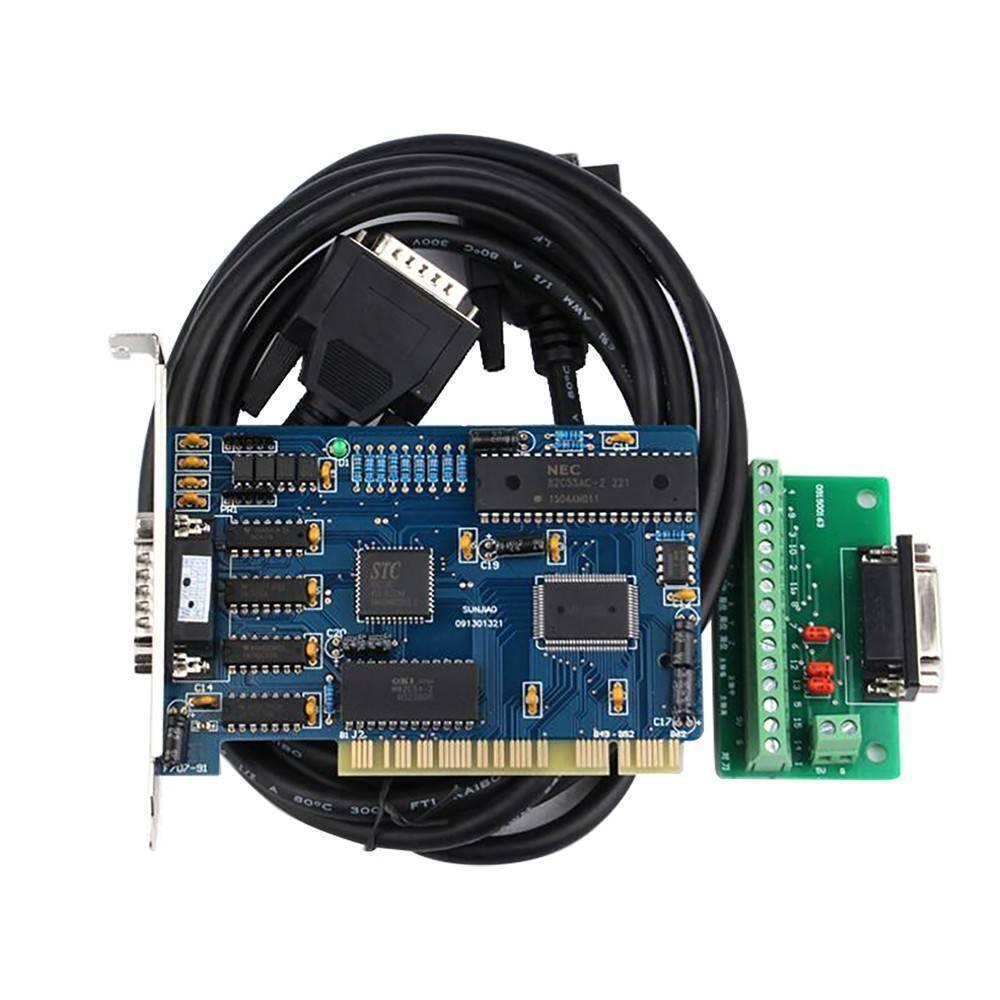

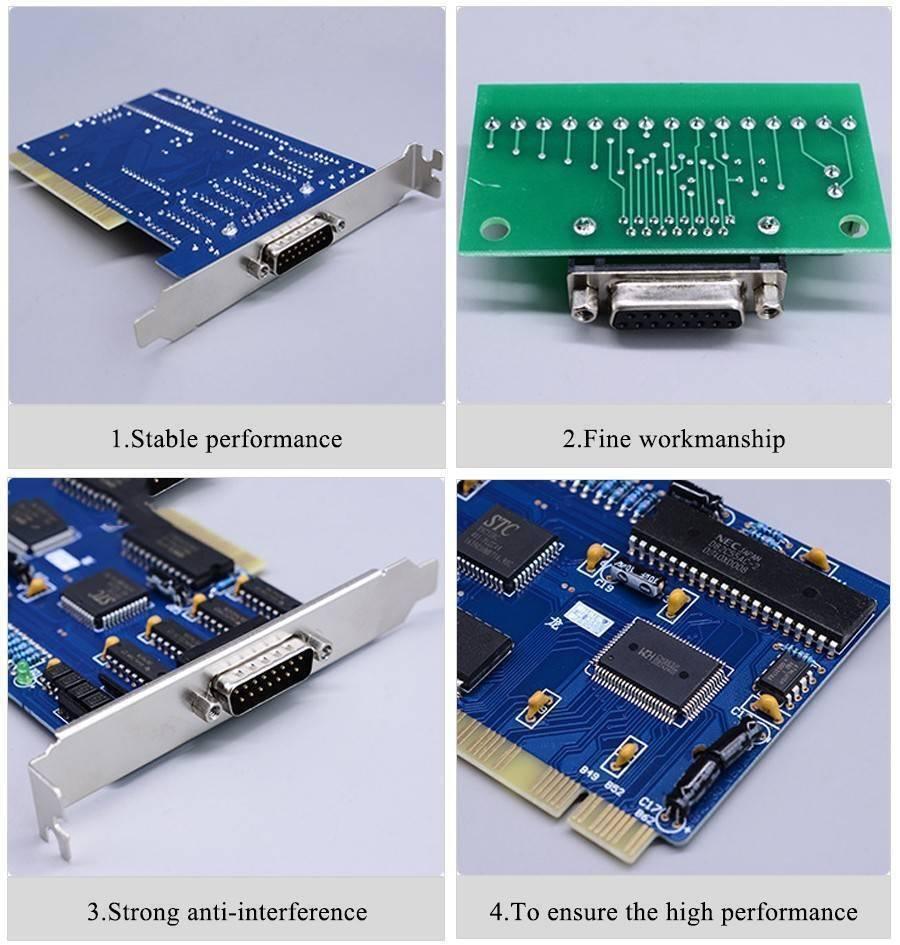

3 axis NC Studio PCI motion ncstudio control card set for CNC router Engraving Milling machine Free Shipping
–The system can directly support UG, MASTERCAM, CASMATE, Art CAM, AUTOCAD, CorelDraw and other CAD
CAM software to generate G-code, PLT code format and carved processing files ENG code format (carved file format
without conversion, direct reading take)
–The system can be used with a variety of three-dimensional sculpture, three-dimensional carving and milling machine.
Applicable to all kinds of complex mold processing, advertising and decorating, cutting and other industries.
–The basic configuration for the three axes of motion.CNC turret support.Automatic processing. Full support for
ISO standard G command, HP plotter (HP PLT) format and carved processing (ENG) format.
–Manual functions. Supports both via the machine input devices, such as handheld devices and other manipulation
tools, also supported by the embedded computer input devices such as keyboard, mouse, complete manual
operation.Incremental feed function. User to accurately set the feed rate, and can be flexibly adjusted in steps.
–User data input (MDI) function. Users can enter G command line and executed immediately.
–Advanced processing instruction. Simply enter a few parameters, you can complete end milling, Crochet and other
functions.
–Single-step mode. Users can set up the processing tasks to be performed as a single-step mode, which is the wrong
diagnosis and Recovery provides a good support.
–Breakpoint memory, hops perform other advanced automatic features.
–Save / Restore function workpiece origin.
–Feed axis precision mechanical origin back (reference point) function.
Automatic tool functionality. These features provide users with great convenience and processing.
–Feedrate line adjustment In the process the user can adjust the feed rate Minimum to 0, equivalent to suspend
processing;. Up to 120%.
–Smooth speed connection speed characteristics. In general CNC system, the connection speed between two G
command is usually a fixed value (for example, a zero or a small value). In the new version of the CNC system,
using a unique processing speed adaptive prediction algorithm. The algorithm according to the size of the connection
speed, direction, maximum acceleration, and the forward prediction function adaptively determines the current speed
of convergence between instruction and the next instruction. Not only greatly improve the processing efficiency
(approximately from 30% to 300%), but also improve the processing performance, eliminating the left in the
machined surface speed chatter.
–3D simulation display function. By a simple operation can be observed from various angles dimensional processing
results, which can more accurately and more intuitive understanding of the machining result.
–Simulation. You can perform fast simulation of the machining program processing can be completed within a very
short period of time, while checking for errors and processing procedures, processing the results are satisfactory, and
can accurately calculate the actual processing time required.
–Powerful, flexible keyboard support. The new version supports keyboard operations on very strong. Meet the user’s
needs during operation.
–Log function. The system provides a powerful logging features that help the user to view detailed processing
information and system diagnostics.
–Built-in processing file manager. Users simply save the processed files to the specified directory, Ncstudio Can
manage these files in a built-in Manager.
