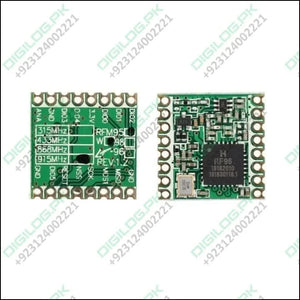

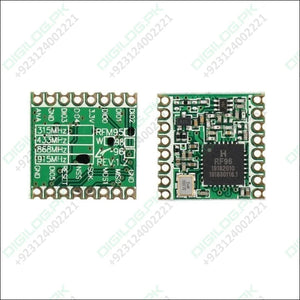

Lora SX1276 Wireless Module – 915MHz, Long Range, Low Power, SPI Interface, IOT & Wireless Communication - the front and back of the green circuit board with pin labels, an integrated chip, and a 32.000 MHz crystal.

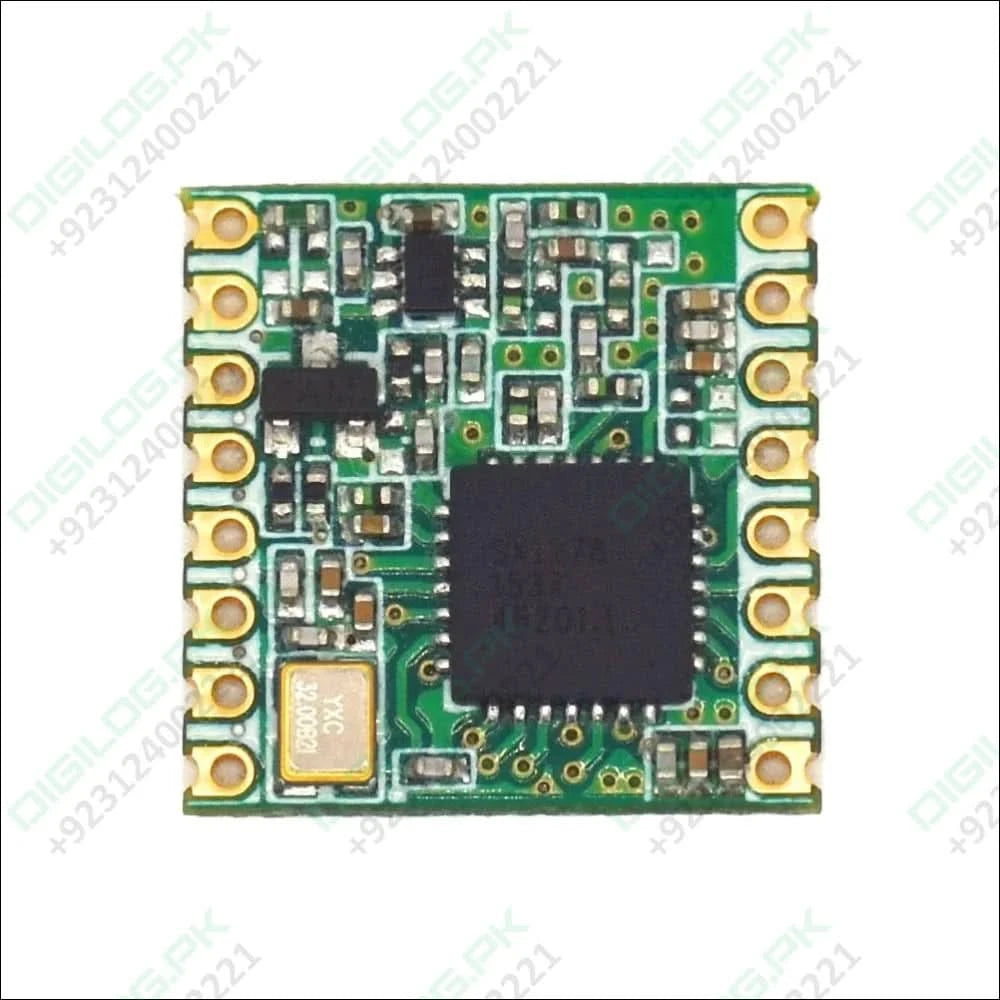

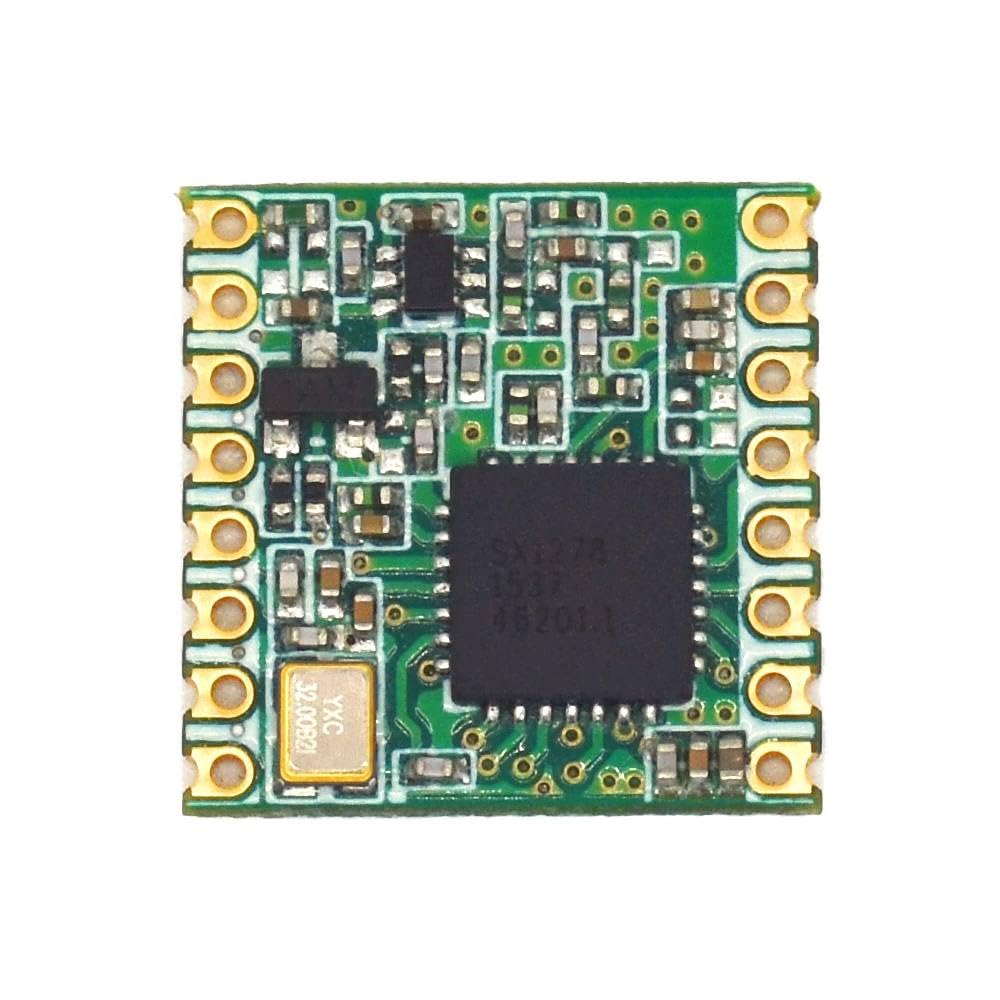

Lora SX1276 Wireless Module – 915MHz, Long Range, Low Power, SPI Interface, IOT & Wireless Communication - a square green printed circuit board with a central black integrated circuit chip, a small crystal oscillator, and pins.

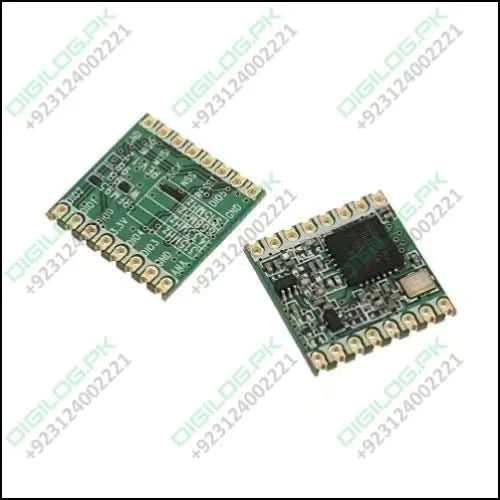

Lora SX1276 Wireless Module – 915MHz, Long Range, Low Power, SPI Interface, IOT & Wireless Communication - two green square circuit boards shown from both the front with a black chip and the back with printed pin labels.
Sold out
Lora SX1276 Wireless Module – 915MHz, Long Range, Low Power, SPI Interface, IOT & Wireless Communication - the front and back of the green circuit board with pin labels, an integrated chip, and a 32.000 MHz crystal.
Lora SX1276 Wireless Module – 915MHz, Long Range, Low Power, SPI Interface, IOT & Wireless Communication - a square green printed circuit board with a central black integrated circuit chip, a small crystal oscillator, and pins.
Lora SX1276 Wireless Module – 915MHz, Long Range, Low Power, SPI Interface, IOT & Wireless Communication - two green square circuit boards shown from both the front with a black chip and the back with printed pin labels.

Lora SX1276 Wireless Module – 915MHz, Long Range, Low Power, SPI Interface, IOT & Wireless Communication

Sale price Rs 1,920
SKU: b138
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

The SX1276 LoRa Module (915MHz) is a high-performance long-range wireless transceiver module designed for Internet of Things (IoT) and low-power wireless communication. Based on Semtech’s SX1276 chipset, it supports LoRa™ spread spectrum modulation, offering extended range, interference immunity, and minimal power consumption — ideal for industrial, agricultural, and smart home applications.

With support for SPI interface, this LoRa module works seamlessly with popular development platforms like Arduino, ESP32, STM32, and Raspberry Pi, making it a preferred solution for building LPWAN (Low Power Wide Area Network) systems.

🔧 Key Features

  • 📶 Frequency: 915MHz (ISM band)

  • 🔋 Ultra-Low Power Consumption

  • 🚀 Long Range: Up to 10 km (Line of Sight)

  • 📡 Modulation: LoRa™ / FSK / OOK

  • 🔧 Interface: SPI – Easy to integrate with MCUs

  • 💻 Compatible With: Arduino, STM32, ESP8266, ESP32

  • 🏭 Ideal For: IoT nodes, telemetry, agriculture, smart grids, wireless sensor networks

📋 Technical Specifications:

Attribute Details
Chipset Semtech SX1276
Frequency 915 MHz (ISM band)
Modulation LoRa™, FSK, OOK
Operating Voltage 1.8V – 3.7V (Typically 3.3V)
Interface SPI
Communication Range Up to 10 km (LOS, depending on antenna)
Data Rate 300 bps to 37.5 kbps
Antenna Interface IPEX / SMA (depends on variant)
Operating Temperature -40°C to +85°C
Current (TX/RX) 28mA TX / 10.3mA RX (typ.)


🌍 Applications

  • 📡 Long-range remote control

  • 📊 Wireless sensor networks

  • 🚜 Smart agriculture & irrigation

  • 🏙️ Smart city monitoring

  • 🔐 Industrial telemetry & metering

  • 🔗 Arduino & ESP-based IoT Projects


📦 Package Includes

  • 1 × LoRa SX1276 915MHz Module
