Model number |
LJ18A3-8 series |
External dimensions |
M18x1x68 |
Installation type |
Non-shielded |
Detection distance |
8mm, 15mm, 20mm |
Setting distance |
6.4 mm |
Supply voltage |
6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz |
Output current |
DC type: 300mA max; AC Type: 400mA |
Standard detected object |
Mild steel (18x18x1mm) |
Sensing object |
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
Response frequency |
500Hz |
Matched mounting bracket |
M18 90° bending mounting bracket, M18 straight mounting bracket
|
Output indication |
Red LED |
Short-circuit protection |
No |
Reverse connection protection |
Yes |
Insulation resistance |
50MΩ min (between charging part and housing) |
Dielectric strength |
1000Vac, 1min (between charging part and housing) |
IP Rating |
IP65 |
Operating temperature |
-25 to 70 ℃ (13 to 158 ℉) |
Cable length |
1.2m, PVC cable |
Material |
Case: Brass-nickel plated; Sensing surface: ABS |
Alias name |

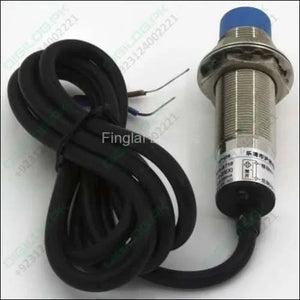

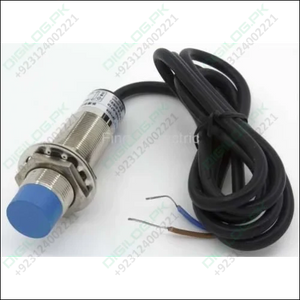

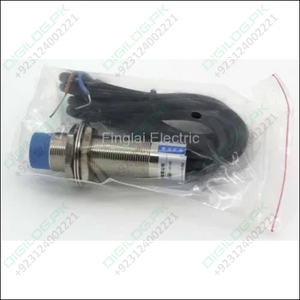

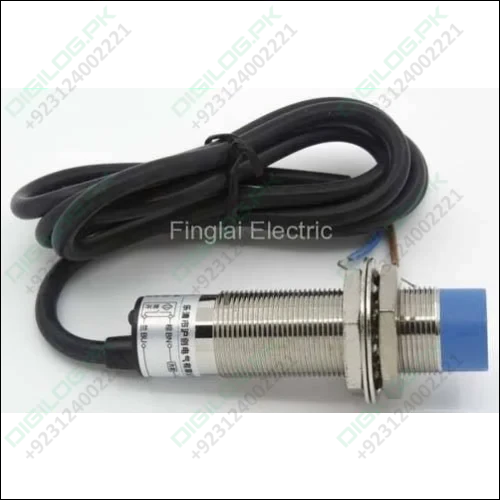

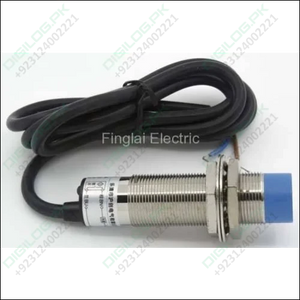

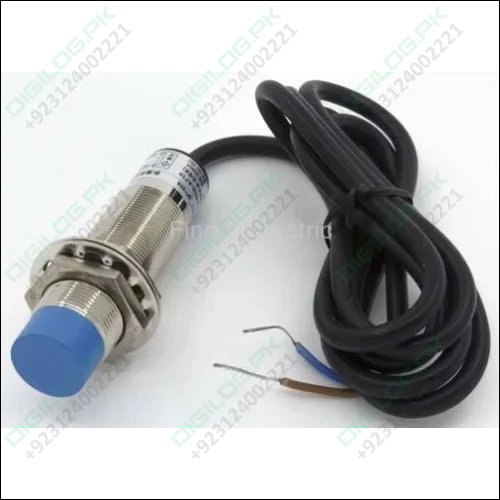

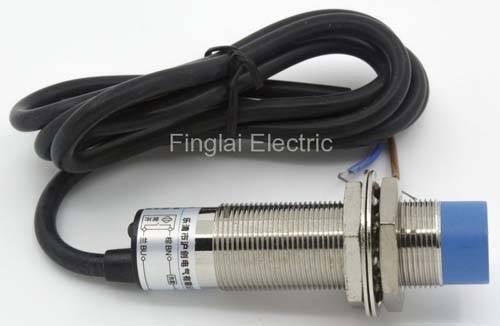

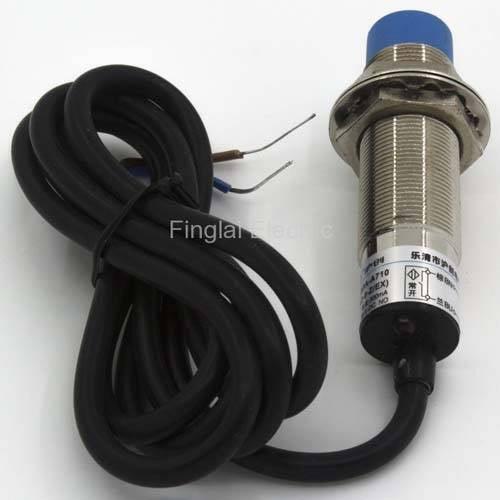

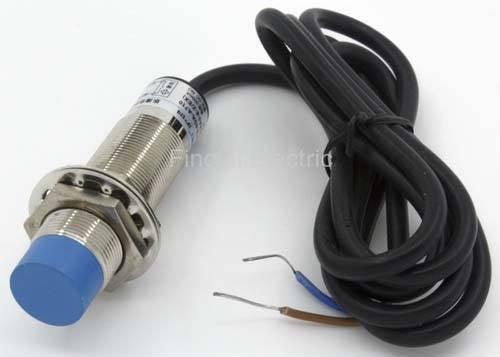

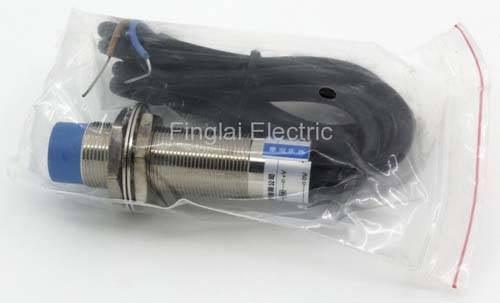

LJ18A3-8 series cylinder inductive proximity switches |
