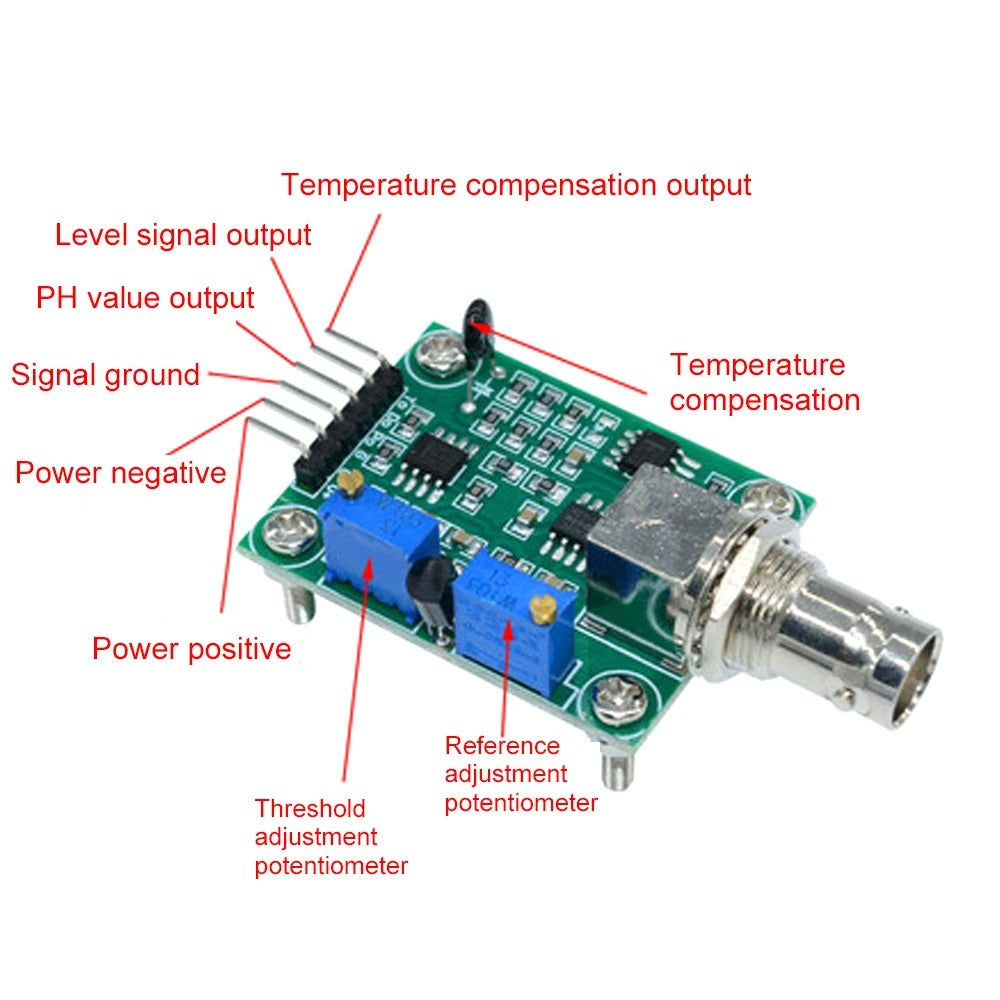

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board, two blue potentiometers, a BNC connector, and a six-pin header.

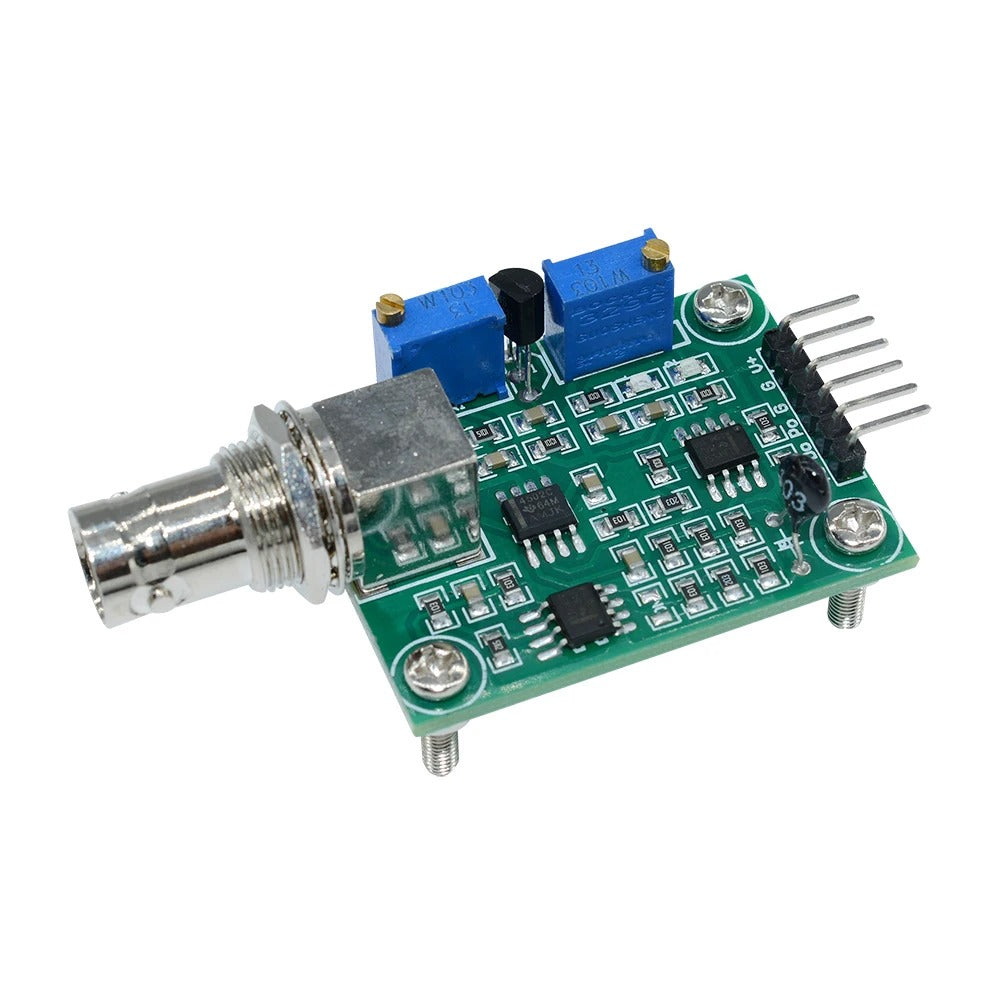

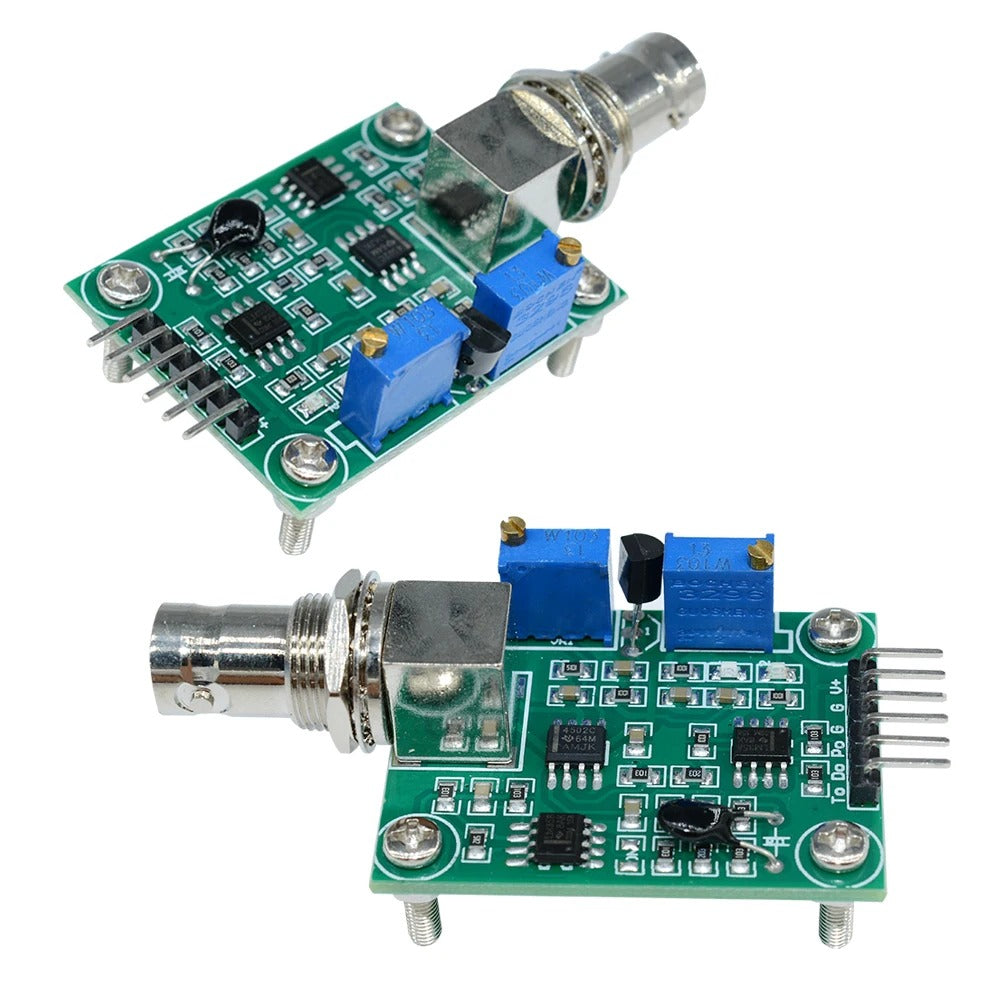

Liquid Ph Value Detection Regulator Sensor Module - shown from two angles, featuring a green circuit board, a BNC connector, and two blue potentiometers.

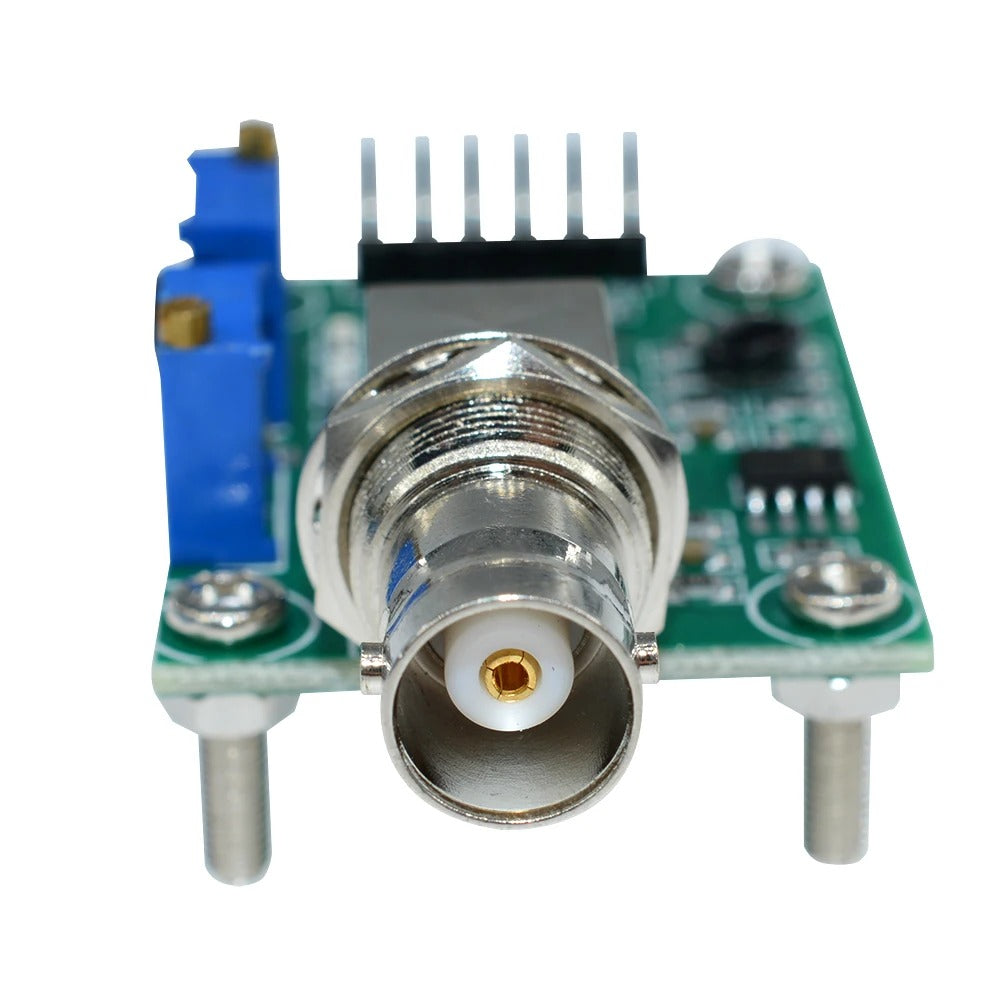

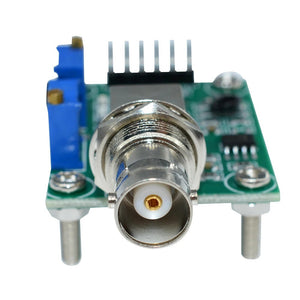

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board with a central BNC connector, a blue potentiometer, and a header pin array.

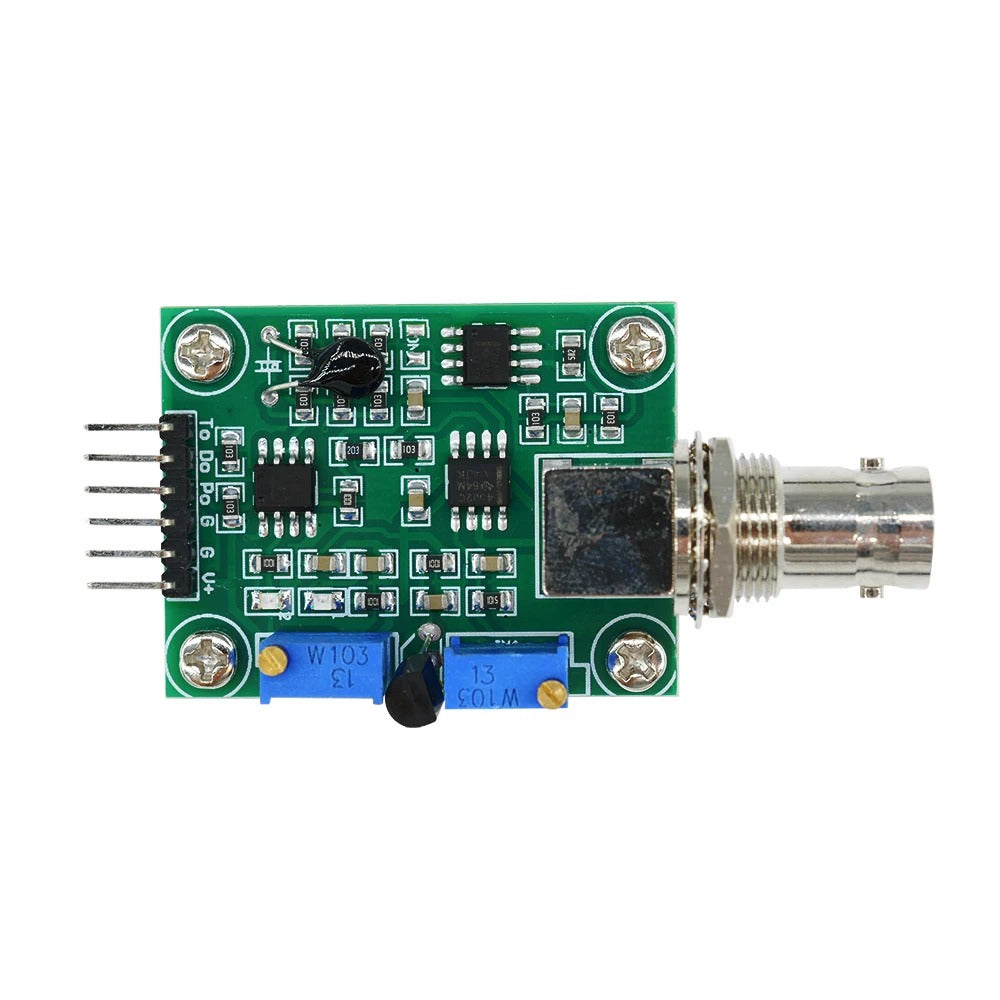

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board with a BNC connector, two blue potentiometers, and a six-pin header.

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board with a BNC connector, two blue potentiometers, and five output pins.

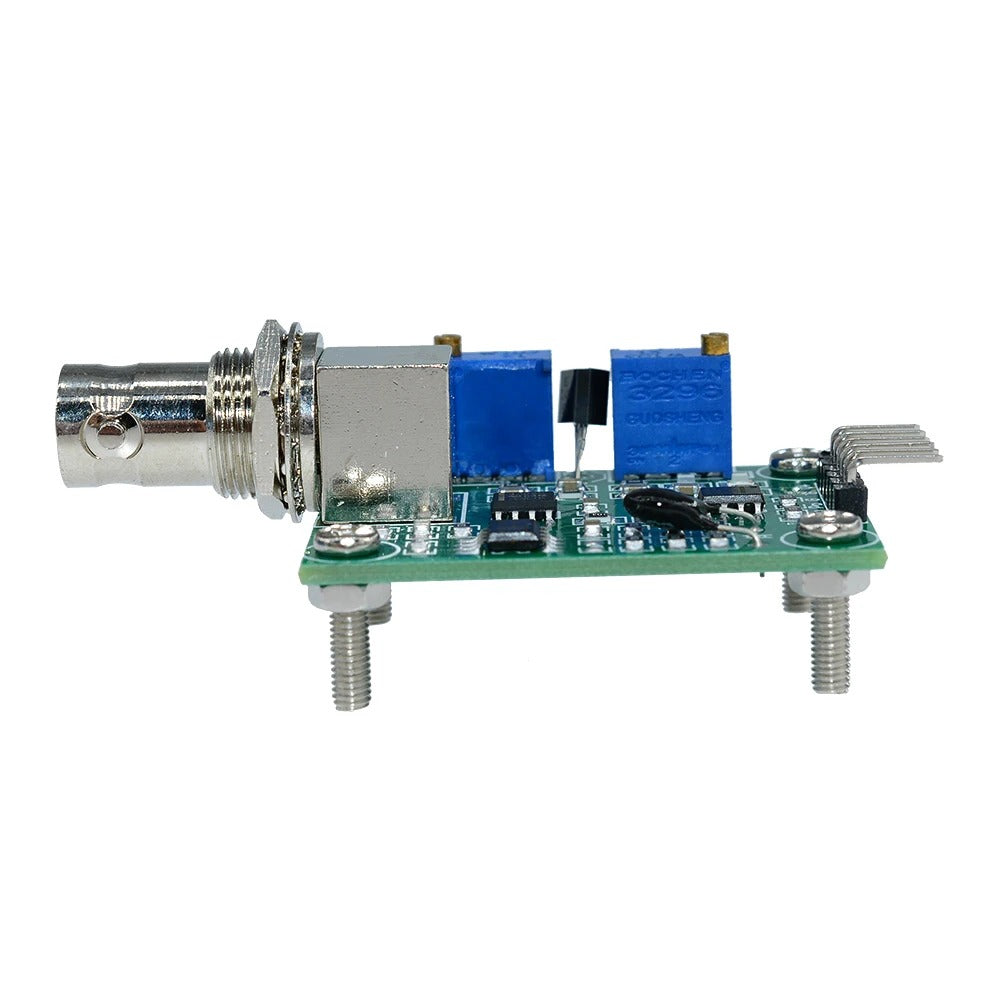

Liquid Ph Value Detection Regulator Sensor Module - a BNC connector, two blue potentiometers, and a green circuit board with mounting hardware.

Sold out

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board, two blue potentiometers, a BNC connector, and a six-pin header.

Liquid Ph Value Detection Regulator Sensor Module - shown from two angles, featuring a green circuit board, a BNC connector, and two blue potentiometers.

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board with a central BNC connector, a blue potentiometer, and a header pin array.

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board with a BNC connector, two blue potentiometers, and a six-pin header.

Liquid Ph Value Detection Regulator Sensor Module - a green circuit board with a BNC connector, two blue potentiometers, and five output pins.

Liquid Ph Value Detection Regulator Sensor Module - a BNC connector, two blue potentiometers, and a green circuit board with mounting hardware.

Liquid Ph Value Detection Regulator Sensor Module

Rs 0

SKU:

Description

Product parameters

Working voltage: 5 ± 0.2V (AC DC)

Working current: 5-10mA

Detectable concentration range: PH0-14

Detection temperature range: 0-80 ℃

Response time: ≤ 5S

Settlement time: ≤ 60S

Component power: ≤ 0.5W

Working temperature: -10~50 ℃ (nominal temperature 20 ℃)

Humidity: 95% relative humidity (nominal humidity 65% relative humidity)

PH testing module size: 42mm * 32mm * 20mm

Output: Analog voltage signal output

With temperature compensation output

Liquid PH Value Detection Regulator Sensor Module

Package Included:

1 x Liquid PH Value Detection Regulator Sensor Module
