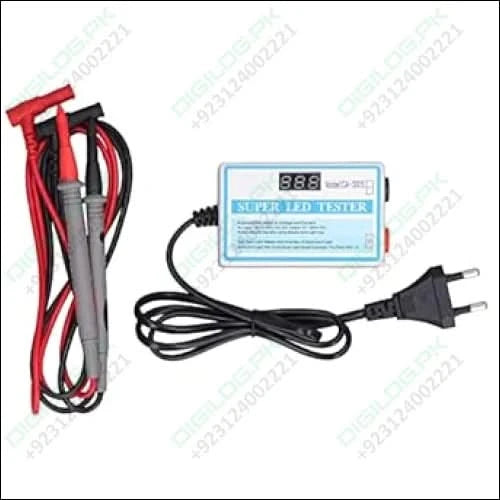

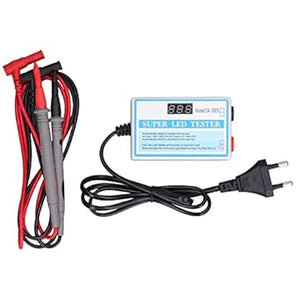

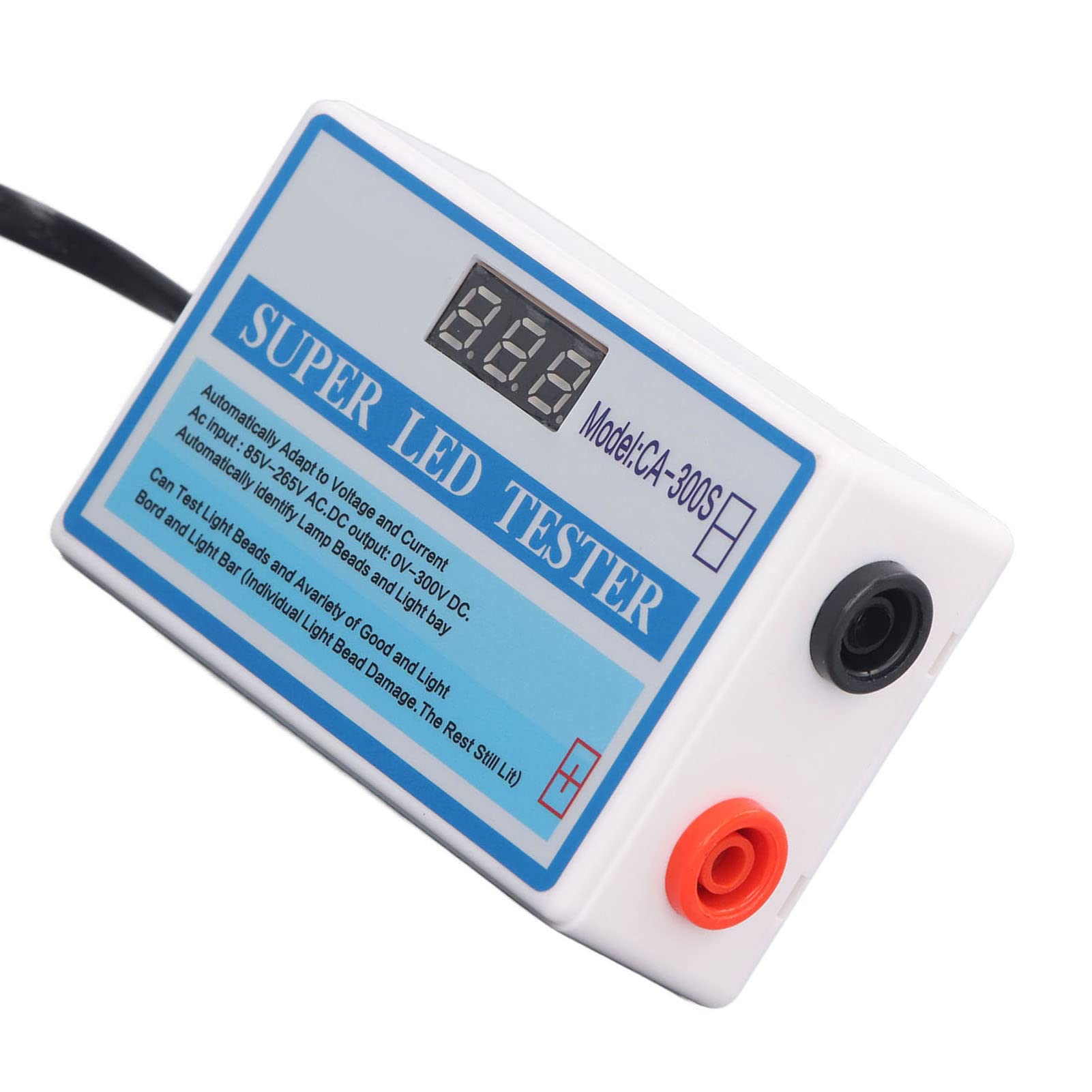

LED Tv Tester CA-300S LED Tv Monitor Laptop Backlight Lamp Tester LED Beads Detect Tool Tester Tool
Pickup available at Digilog Electronics
Usually ready in 2 hours
LED Tv Tester CA-300S LED Tv Monitor Laptop Backlight Lamp Tester LED Beads Detect Tool Tester Tool
LED TV Tester CA-300s led tv Monitor Laptop Backlight Lamp Tester LED Beads Detect Tool Tester tool:
LED Strips TV Monitor Laptop Backlight Lamp Tester LED Beads Detect Tool Tester tool USA standard PLug
LED Strips TV Monitor Laptop Backlight Lamp Tester LED Beads Detect Tool Tester tool USA standard PLug
Applicable to any size LED TV, perfect backlight inspection and maintenance tool!
Model No: CA-300S
Input Voltage: 85-265V
Output Voltage: 0-300S DC
Item Size: 92 * 58 * 32mm
Item Weight: 110g
-forSuitable
Input Voltage: 85-265V
Output Voltage: 0-300S DC
Item Size: 92 * 58 * 32mm
Item Weight: 110g
-forSuitable
single LED beads, LED strip, LED panel, and Integrated optical LED
- Support testing the capacitance-voltage and the diode voltage
- No need to disassemble panel to test the LED backlights
- Safe Protection: Double Isolated
-Brunprtection: Voltage and Current Intelligent Adjustment
-Safetydesign : Slow boost , soft start. Increase the current steadily.
1. Plug in power, it would be cost about 3 to 5 seconds to start
2. The soft start mode make the backlight getting brighter gradually
3. If you can't make sure which is“+”and “-”, then not test for a long time
4. Don’t touch the output terminal of probes for a long time
5. Retardancy materials: Double Isolate design makes tester safety with high strength and flame
- Support testing the capacitance-voltage and the diode voltage
- No need to disassemble panel to test the LED backlights
- Safe Protection: Double Isolated
-Brunprtection: Voltage and Current Intelligent Adjustment
-Safetydesign : Slow boost , soft start. Increase the current steadily.
1. Plug in power, it would be cost about 3 to 5 seconds to start
2. The soft start mode make the backlight getting brighter gradually
3. If you can't make sure which is“+”and “-”, then not test for a long time
4. Don’t touch the output terminal of probes for a long time
5. Retardancy materials: Double Isolate design makes tester safety with high strength and flame
6.If the tested LED TV's backlight voltage is 000,that means short circuit,if the voltage is 300,that means open circuit.Every light's voltage of the TV should be same,if it is not,then the LED light bar is mutilated
Package List:
1 * Tester
1 * Pair of Test Probe
1 * Tester
1 * Pair of Test Probe
