KYOSHO KTH-60100A-D Brushed Motor Bidirectional ESC for 1:10 Scale RC Cars

Experience precision control with the KYOSHO KTH-60100A-D Electronic Speed Controller (ESC), a high-quality Japanese-engineered component designed for 1:10 scale RC model cars. This bidirectional ESC supports both 2S and 3S LiPo batteries, making it versatile for various power configurations and driving styles.

Key Features:

• Japanese KYOSHO quality and engineering
• Bidirectional control for forward and reverse operation
• Compatible with 2S-3S LiPo batteries (7.4V - 11.1V)
• Designed for brushed motors
• Aluminum alloy heat sink for efficient cooling
• Compact and lightweight design
• Perfect for 1:10 scale RC model cars
• PWM control signal support
• Built-in protection circuits

Technical Specifications:

• Model: KYOSHO KTH-60100A-D
• Type: Brushed Motor ESC
• Battery Support: 2S-3S LiPo (7.4V - 11.1V)
• Motor Type: Brushed DC motors
• Control Mode: Bidirectional (Forward/Reverse)
• Scale: 1:10 RC model cars
• Heat Sink: Aluminum alloy with cooling fins
• Control Signal: PWM (White wire)
• Power Input: Red (+5V), Black (GND)
• Compact design with integrated capacitor

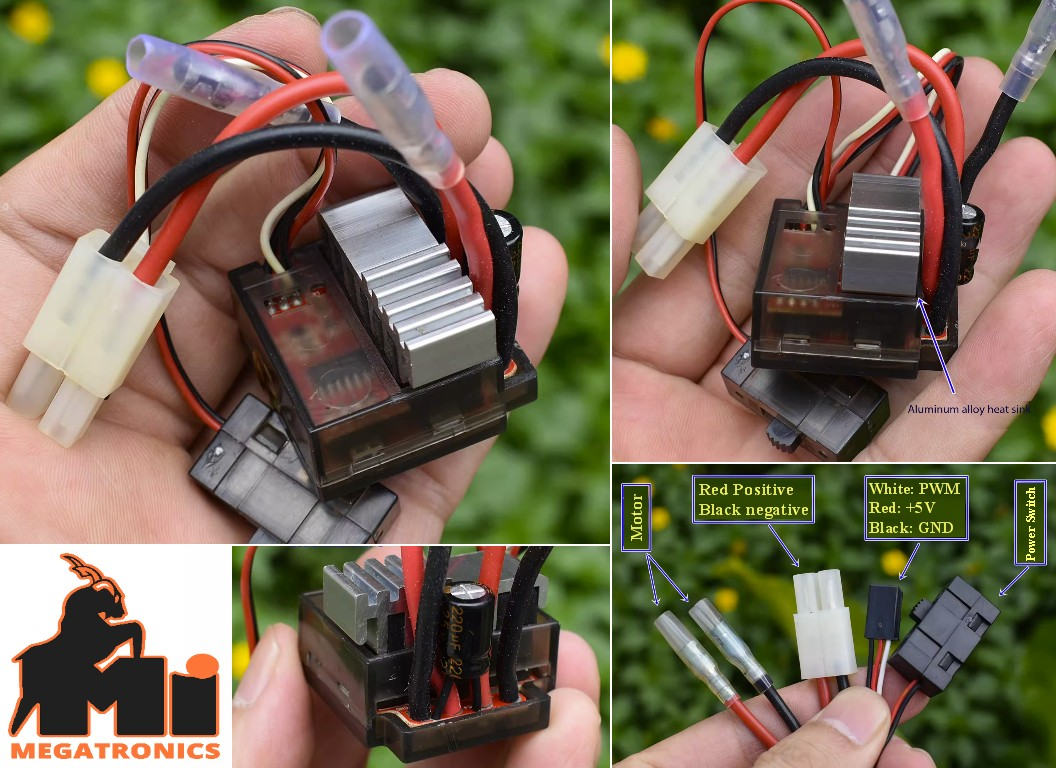

Wiring Configuration:

• Motor Connection: Red (Positive), Black (Negative)
• Power Supply: Red (+5V), Black (GND)
• Control Signal: White (PWM)
• Power Switch: Integrated connector

Cooling System:

• Aluminum alloy heat sink with ribbed design
• Efficient heat dissipation for extended runtime
• Prevents overheating during high-performance driving

Applications:

• 1:10 scale RC cars and trucks
• RC drift cars
• On-road and off-road RC vehicles
• Hobby-grade RC model cars
• RC racing applications
• DIY RC car builds and upgrades

Package Includes:

• 1 x KYOSHO KTH-60100A-D ESC
• Pre-wired motor and power connectors
• Aluminum heat sink (pre-installed)

Compatibility:

• Works with standard RC receivers
• Compatible with 2S (7.4V) and 3S (11.1V) LiPo batteries
• Suitable for brushed DC motors in 1:10 scale vehicles
• Standard PWM servo signal input
