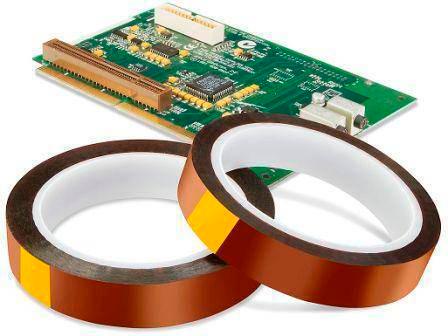

10mm Kapton Polyimide Heat Resistant Tape
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
10mm Kapton Resistant Tape is commonly used as a wire and cable wrap as well as to protect electrical components during soldering. It is effective for both hand-soldering and mass soldering applications, such as wave soldering. In the electronics industry, Kapton tape is apply to circuit boards before wave soldering to shield gold fingers from the solder material and prevent unwanted electrical connections.
The tape is also easy to trim with a razor blade and can be used as a temporary dust cover for ports in devices. Polyimide tape, also known as KAPTON tape, commonly known as high-temperature tape, finger tape, is a polyimide film as a base material, the use of imported silicone pressure-sensitive adhesive.
Specifications of 10mm Kapton Resistant Tape :
- Substrate (Backing): 0.025MM polyimide film
- Adhesive ( Coefficient of the Tape ): Silicone
- Tensile strength ( tensile strength ): ≥ 140 N / 25mm
- Elongation at break ( Elongation ): ≥ 40 %
- Breakdown strength ( Breakdown strength ) : ≥ 150 N / 25mm
- Withstand voltage ( Withstand Voltage ): 5 KV
- 180 0 peel force ( Adhesion ) : 5-6 N / 25mm
Applications:

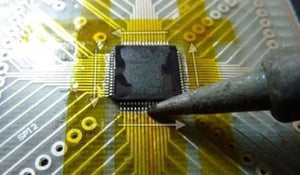

- PCB board finger temperature spray masking
- Circuit board solder masking
- High-temperature insulation transformer coil banding
- Phone lithium battery manufacturing strapping
- Heater fixing
- Motor insulation
Buy Kapton Polyimide Tape High-Temperature Heat Resistant 10mm at Pakistan's Best Online Shopping Store at cheap price. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.
Package Includes:
1x Kapton Polyimide Heat Resistant Tape 10mm
