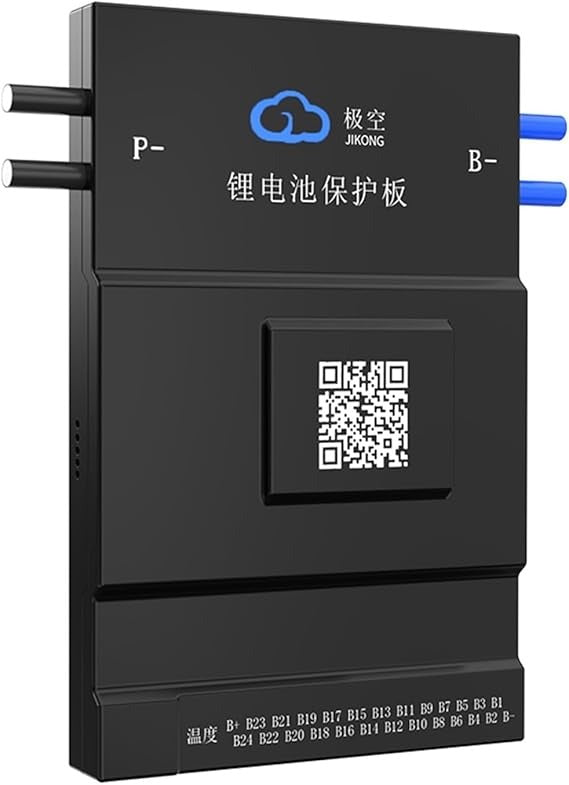

JK Smart BMS JK BMS 100A Active Balance JK-BD6A20S10P/12P, 8s 24V 20s Smart BMS 100AMP 100AH for Lithium Battery Protection Module

Specification:
Size: 133*81*18mm
Li-ion Strings: 7s~20s
Lifepo4 Strings: 8s~20s
LTO Strings: 12s~20s
Balanced way: Active equalization
Active equalization current: 0.6A
Internal resistance:1m
Rated discharge current:100A
Maximum discharge current:200A
Overcurrent protection(Adjustable):10-100A
Wiring method: Common port
Monomer voltage range: 1V-5V
Voltage acquisition accuracy: ±5mV
Battery cell Over-charge protection voltage :1.2V-4.35V(Adjustable)
Over Current Detect Delay: 2-120S(Adjustable)
Battery cell Over-discharge protection voltage: 1.2V-4.35V(Adjustable)
Battery cell Over-discharge protection recovery voltage : 1.2V-4.35V(Adjustable)

Charging Current : 100A
Usage Scenario : Power BMS,Energy Storage BMS
Balance Function : Active Balanced BMS
Handware or Smart : SMART BMS
Charge and Discharge Port : Common Port BMS

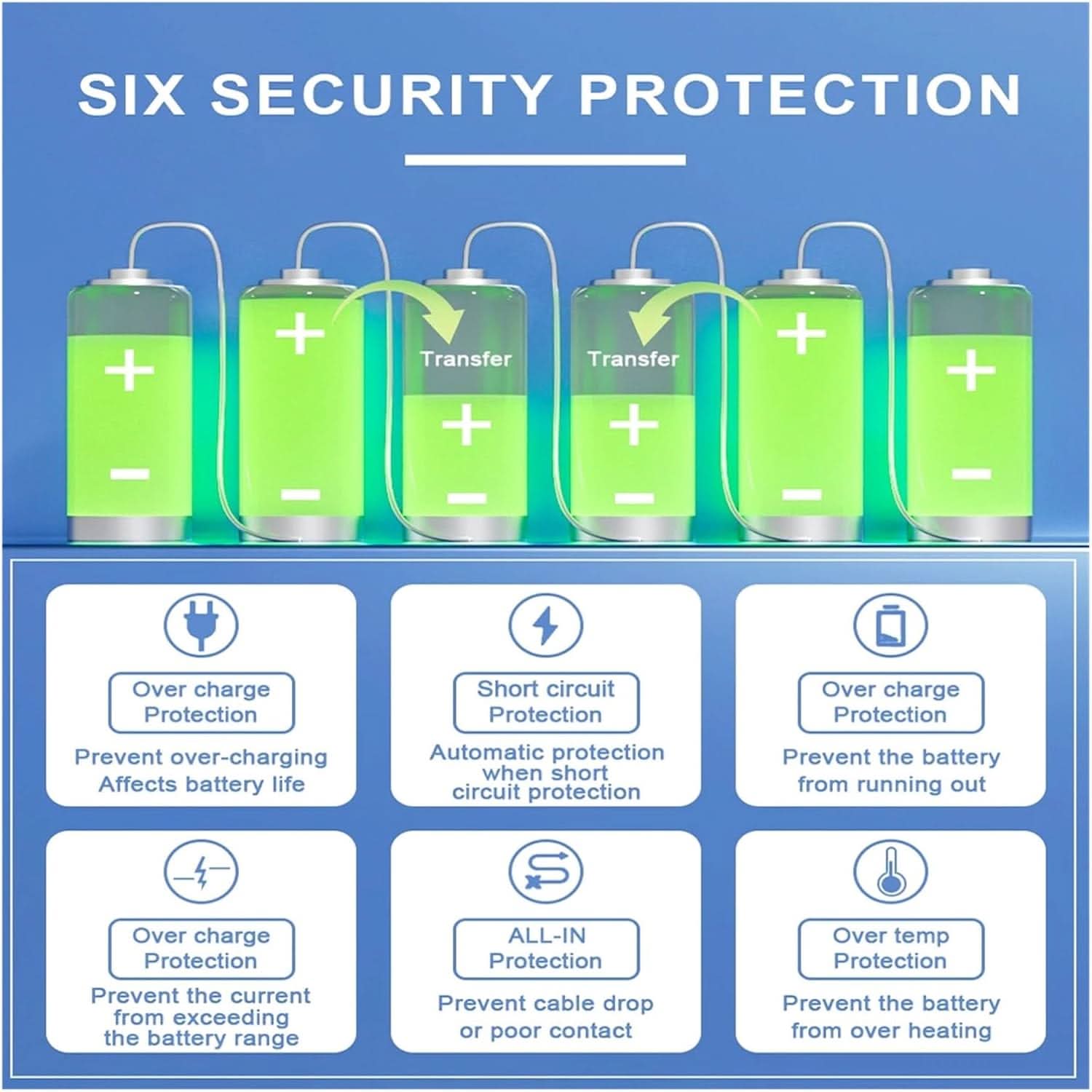

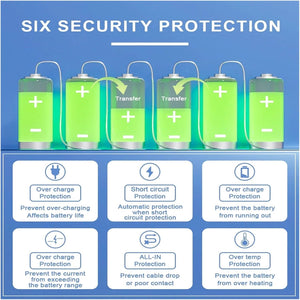

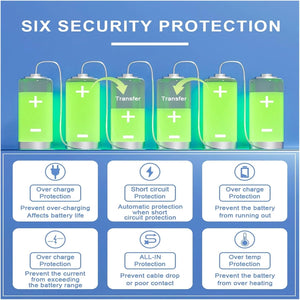

Function : Overcharge Protection,Over Discharge Protection,Short Circuit Protection
Type : LIFEPO4 Battery BMS
Battery Type : Li-ion/LiFePo4/LTO
Battery Strings : 7S-20S
Charge/Discharge current : 100A
Balance Current : 0.6A

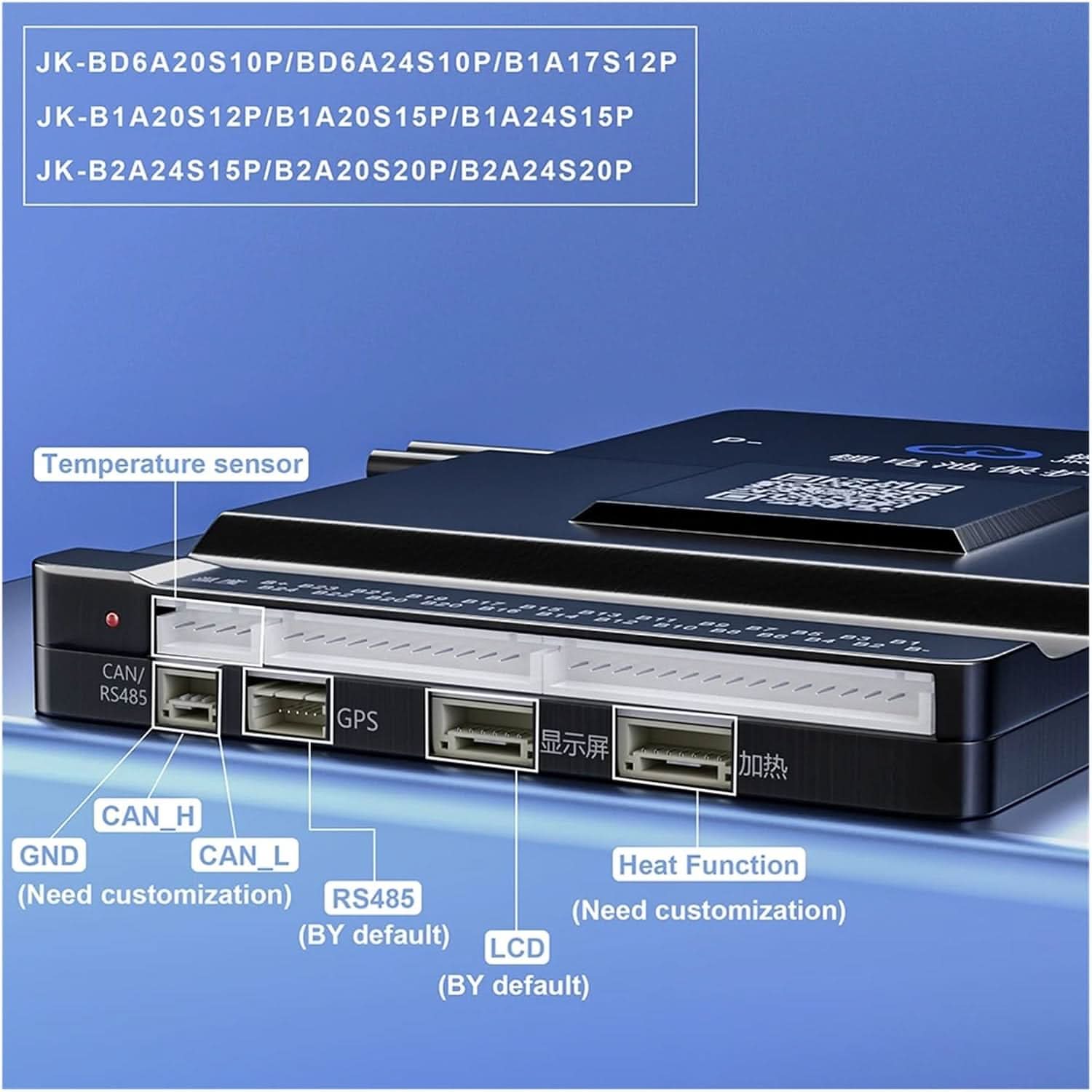

Function : BT/RS485
Temperature sensor : Yes
Active Balance : Yes
Size : 133*81*18mm
