Description

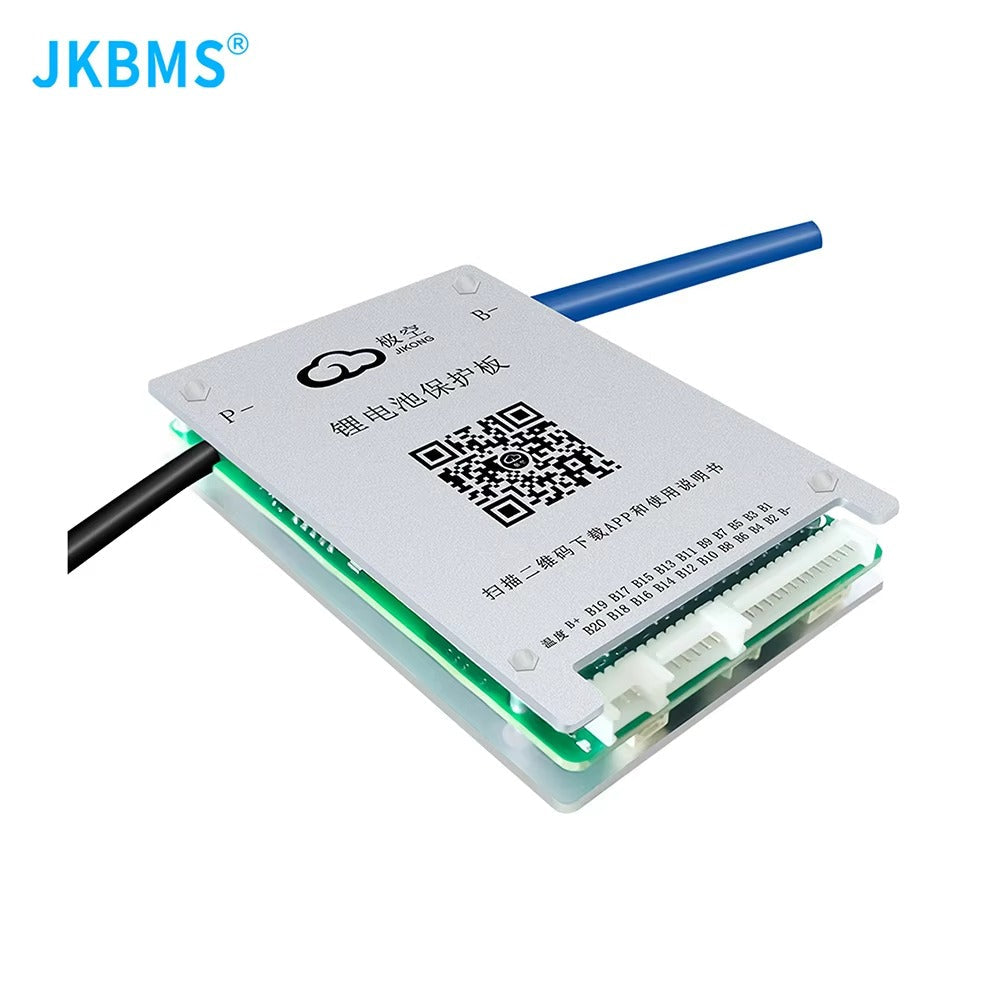

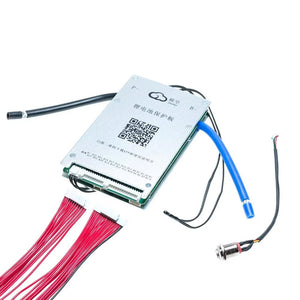

JK BMS JIKONG Active Balance Smart BMS
● Number of Battery Strings:7S to 17S.
● Continuous Current:40A.
● Power supply mode:The battery pack is self-powered.
●Single cell voltage detection range:0-5V,error<10mV over full operating range,Typical error value<5mV.
● Support single cell voltage dropout detection.
● Balance current:400mA,Active Balance(Full State On).
● Wiring method:same port.
● Short Circuit Protection:Support.
● Bluetooth Function:Bluetooth Built-in,Support for Android /IOS Phone.
● Temperature detection:-40～125℃.
● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
●Current Sense Shunt:-150A~300A,Error<0.5%FSR.
●SoC estimation accuracy:Error<8%(operating conditions).
● Battery remaining capacity:error range is less than 8%
● Total Cycle AH Cumulative value is half of the charge/discharge value.
●Operating power consumption:<5mA(without communication)/15mA(485/CAN).
● Standby power consumption:<2mA.
●Operating Temperature:-40~85°C.
● Storing Temperature:-40～95℃.
