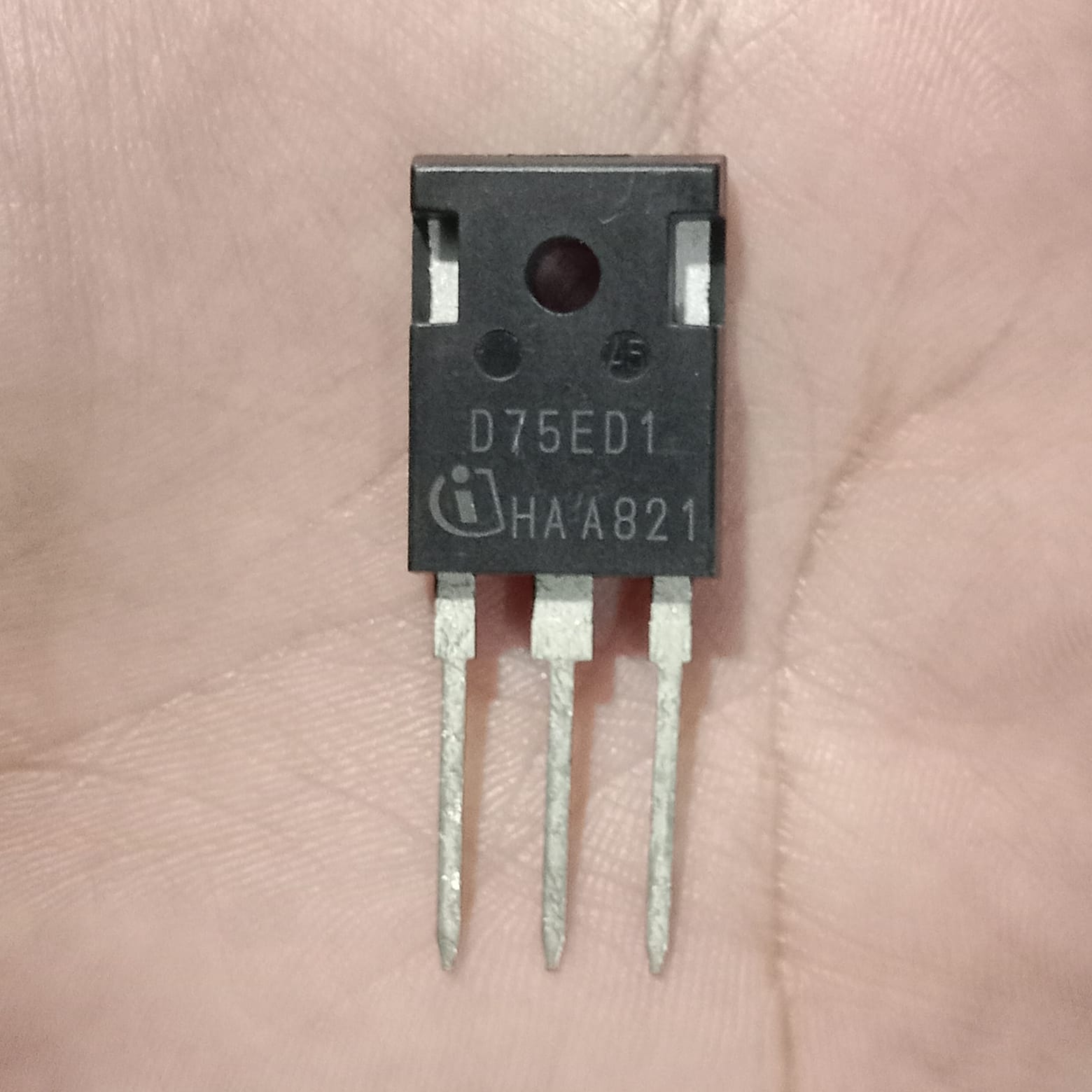

A 650V Silicon Junction Rectifier Diode (EmCon HE series) in a TO-247 (3-pin) package.

Key Specs

• Manufacturer: Infineon Technologies
• Marking Code: D75ED1
• Type: Silicon Junction diode, single configuration
• Max Forward Current (I_F): 75A
• Max Reverse Voltage (V_RRM): 650V
• Peak Surge Current (I_FSM): 580A
• Max Forward Voltage (V_F): 1.35V
• Reverse Recovery Time (t_rr): 108ns
• Max Power Dissipation: 326W
• Operating Temp: -40°C to 175°C
• Package: Through-hole, 3-pin TO-247

Note: it's a single diode in a 3-pin package — one pin is typically unused/tied internally (common for this footprint family).

Typical Applications

• Fast rectification in switch-mode power supplies
• Solar/PV inverters
• Motor drives, industrial power converters
• Freewheeling/snubber diodes in high-power circuits

Package Includes:

• 1 x Infineon (D75ED1) TO-247 Power Diode
