Infineon 60C7017 600V 109A 17mΩ N-Channel Power MOSFET, TO-247

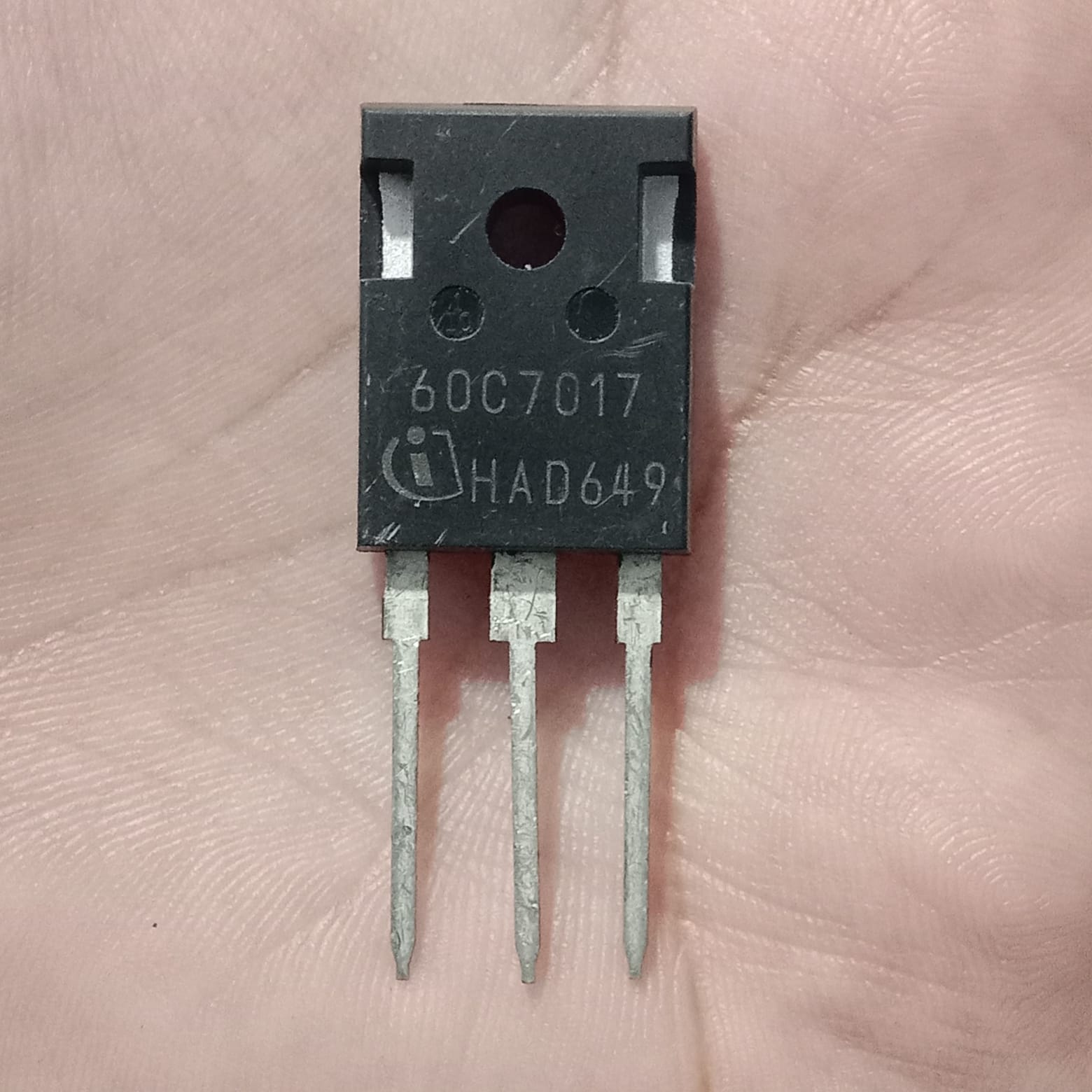

This is a 600V CoolMOS™ C7 N-Channel Power MOSFET in a TO-247 (3-pin) package, made by Infineon Technologies.
Key Specs
- Manufacturer: Infineon Technologies
- Part Number: IPW60R017C7
- Marking Code: 60C7017
- Type: N-Channel Power MOSFET (CoolMOS™ C7 superjunction technology)
- Drain-Source Voltage (V_DS): 600V Infineon Technologies
- R_DS(on): 17 mΩ (milliohms) Infineon Technologies
- Continuous Drain Current (I_D): 109 A Infineon Technologies
- Package: 3-Pin TO-247, through-hole rs-online
- Pinout: Gate, Drain (also tab), Source (standard TO-247 MOSFET pinout)
Typical Applications
High-efficiency power MOSFETs like this are used in:
- Switch-mode power supplies (SMPS)
- Solar inverters / PV systems
- Server and telecom power supplies
- Industrial motor drives
- High-power PFC (power factor correction) stages
- EV chargers
Package Include:
- 1x Infineon 60C7017 600V 109A 17mΩ N-Channel Power MOSFET, TO-247
