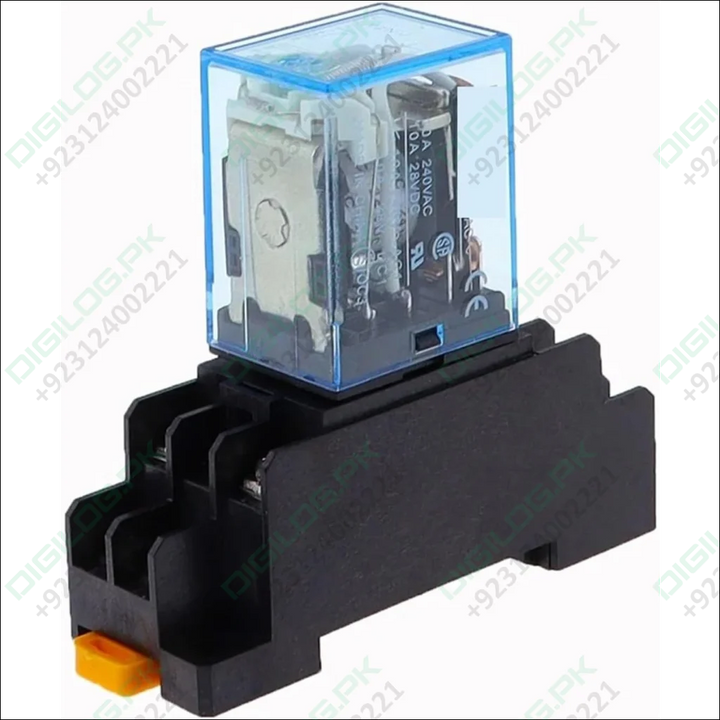

Ime JZX-13F-2 8 Pin AC 220V 12 Amp Electromagnetic Power Coil Relay 12A AC - shown with its black plastic base socket and the blue-cased relay unit with metal pins.

Ime JZX-13F-2 8 Pin AC 220V 12 Amp Electromagnetic Power Coil Relay 12A AC

Sale price Rs 560
SKU: b13
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

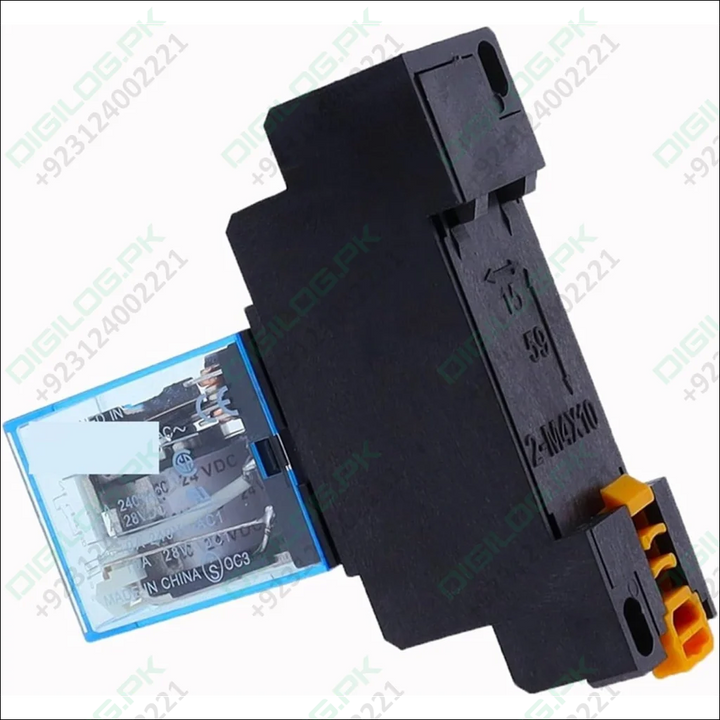

Ime JZX-13F-2 8 Pin AC 220V 12 Amp Electromagnetic Power Coil Relay 12A AC - shown with its black plastic base socket and the blue-cased relay unit with metal pins.

Ime JZX-13F-2 8 Pin AC 220V 12 Amp Electromagnetic Power Coil Relay 12A AC

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

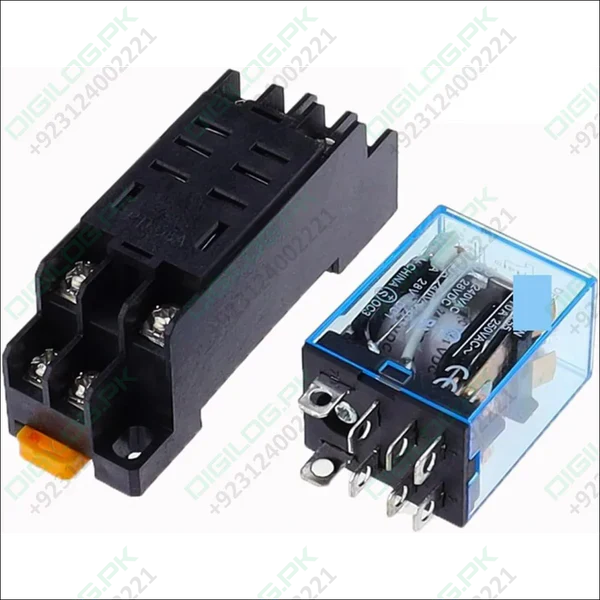

Ime JZX-13F-2 8 Pin AC 220V 12 Amp Electromagnetic Power Coil Relay 12A AC - shown with its black plastic base socket and the blue-cased relay unit with metal pins.
Ime JZX-13F-2 8 Pin AC 220V 12 Amp Electromagnetic Power Coil Relay 12A AC
Sale priceRs 560

The Ime JZX-13F-2 is an 8-pin electromagnetic power relay designed for reliable switching in electrical control circuits. This relay operates with an AC 220V coil and is rated for a maximum current capacity of 12 Amps.

Electromagnetic relays function as electrically operated switches, allowing a low-power signal to control a higher-power circuit through the use of an internal electromagnet to move the contact armature.

  • Model: JZX-13F-2
  • Configuration: 8 Pin
  • Coil Voltage: AC 220V
  • Current Rating: 12 Amp
