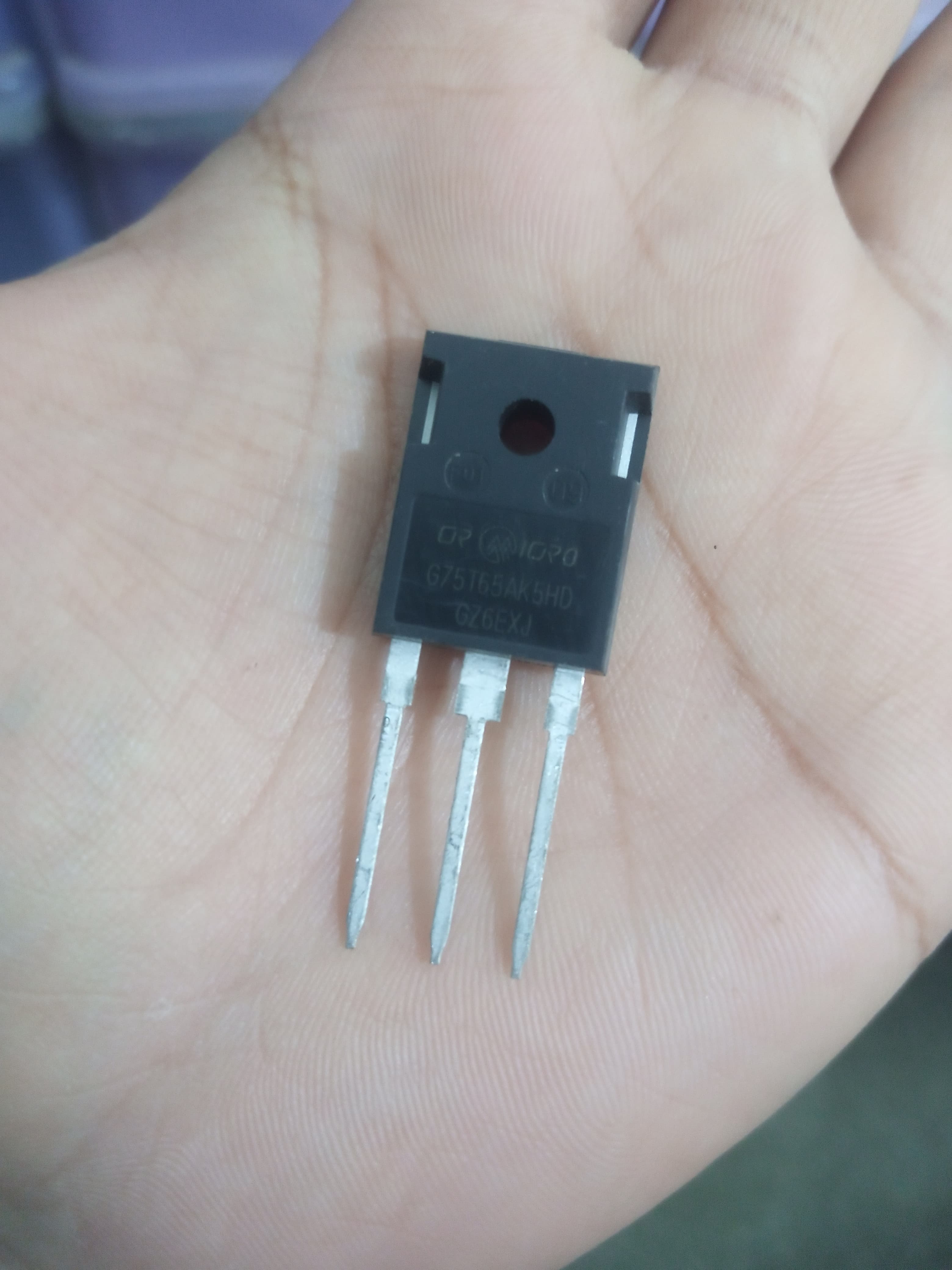

IGBT G75T65AK5HD - High-Power Insulated Gate Transistor

IGBT G75T65AK5HD – High-Efficiency Power Transistor

The IGBT G75T65AK5HD is a high performance Insulated Gate Transistor designed for fast switching and high efficiency. It is widely used in industrial applications such as inverters, motor drives, and power control systems. With its high voltage and current capabilities, this IGBT ensures optimal performance and reliability.

Key Features

• IGBT G75T65AK5HD high performance high voltage capability of 650V
• Current rating of 75A for high-power applications
• Low switching losses for efficient operation
• Optimized for high-speed switching
• Ideal for industrial power control and motor driver systems
• Reliable thermal performance for heat dissipation

Applications

• First, industrial motor drives use this for efficient and reliable performance.
• Next, power inverters and converters benefit from its high efficiency.
• Then, Uninterruptible Power Supplies (UPS) rely on it for stable power delivery.
• After that, renewable energy systems improve their efficiency with its help.
• Moreover, IGBT G75T65AK5HD welding equipment and power control systems depend on it for precise operation.
• Additionally, electric vehicle (EV) motor controllers enhance performance using this technology.
• Finally, high-frequency switching power supplies achieve better efficiency with its fast switching speed

Compatible Components & Accessories

• L298N Motor Driver Module
• Arduino Mega 2560
• IGBT Heat Sink
• PWM Signal Generator

How to Use IGBT G75T65AK5HD

• First, always ensure proper heat dissipation by using a heat sink or cooling fan.
• Next, control the IGBT’s switching by using a PWM driver circuit.
• Then, connect it safely to a motor driver system, inverter, or power supply module.
• After that, test the circuit with a multimeter to check voltage and current flow.
• Finally, monitor the temperature carefully and prevent overheating to maintain long-term efficiency

Read More

• G75T65AK5HD Datasheet

FAQs

What is the voltage rating of the IGBT G75T65AK5HD high performance?

First, this IGBT comes with a voltage rating of 650V. Next, it works well in high-power applications, ensuring reliable performance.

Can this IGBT be used for motor control?

Yes, it handles motor driver applications easily. Moreover, it provides high current and fast switching, making it a great choice.

Is it suitable for use in inverters?

Yes, it works perfectly in power inverters. Additionally, it improves efficiency while reducing switching losses.

What precautions should be taken while using this IGBT?

First, always ensure proper heat dissipation with a heat sink or cooling fan. Next, use a suitable driver circuit for safe operation. Finally, never exceed the rated voltage and current limits to prevent damage.

Can I use this IGBT for a high-frequency switching circuit?

Yes, it performs well in high-speed switching. Furthermore, it supports high-frequency applications with great efficiency.

What is the difference between an IGBT and a MOSFET?

First, IGBTs work better in high-voltage applications by lowering conduction losses. On the other hand, MOSFETs perform best in high-frequency, low-voltage circuits.

Package Includes

• 1 x IGBT G75T65AK5HD
