Product Description
The ICE3BR4765J is an off-line SMPS current mode controller from Infineon's CoolSET®-F3R jitter series, integrating a 650V CoolMOS® power switch and Startup cell into a compact PG-DIP-8 package. It's designed for off-line battery adapters and low-cost, lower-power SMPS applications such as DVD/Blu-ray players and set-top boxes.
Building on the earlier CoolSET®-F3 series, it adds built-in soft start time, a built-in blanking window, built-in frequency jitter, and soft gate driving, while retaining active burst mode and auto-restart protection for improved efficiency and reduced standby power.
Key Specifications
| Parameter | Value |
|---|---|
| Package | PG-DIP-8 |
| Integrated MOSFET Voltage (VDS) | 650V |
| Switching Frequency (FOSC) | 65kHz (internally fixed, with frequency jitter) |
| RDS(on) | 4.70Ω (typ. @ Tj=25°C) |
| Input Voltage Range | 85–265 VAC |
| Output Power (max, with heatsink) | 27W |
| Output Power (max, without heatsink) | 18W |
| Manufacturer | Infineon Technologies AG |
Key Features
- 650V avalanche-rugged CoolMOS® with built-in Startup Cell
- Active Burst Mode for lowest standby power
- Fast load jump response in Active Burst Mode
- Built-in frequency jitter mode to reduce EMI
- Built-in soft start and soft gate driving for smoother startup behavior
Typical Applications
- Off-line battery chargers / adapters
- Low-power SMPS designs (DVD/Blu-ray players, set-top boxes)
- Auxiliary/standby power supplies
Package Includes

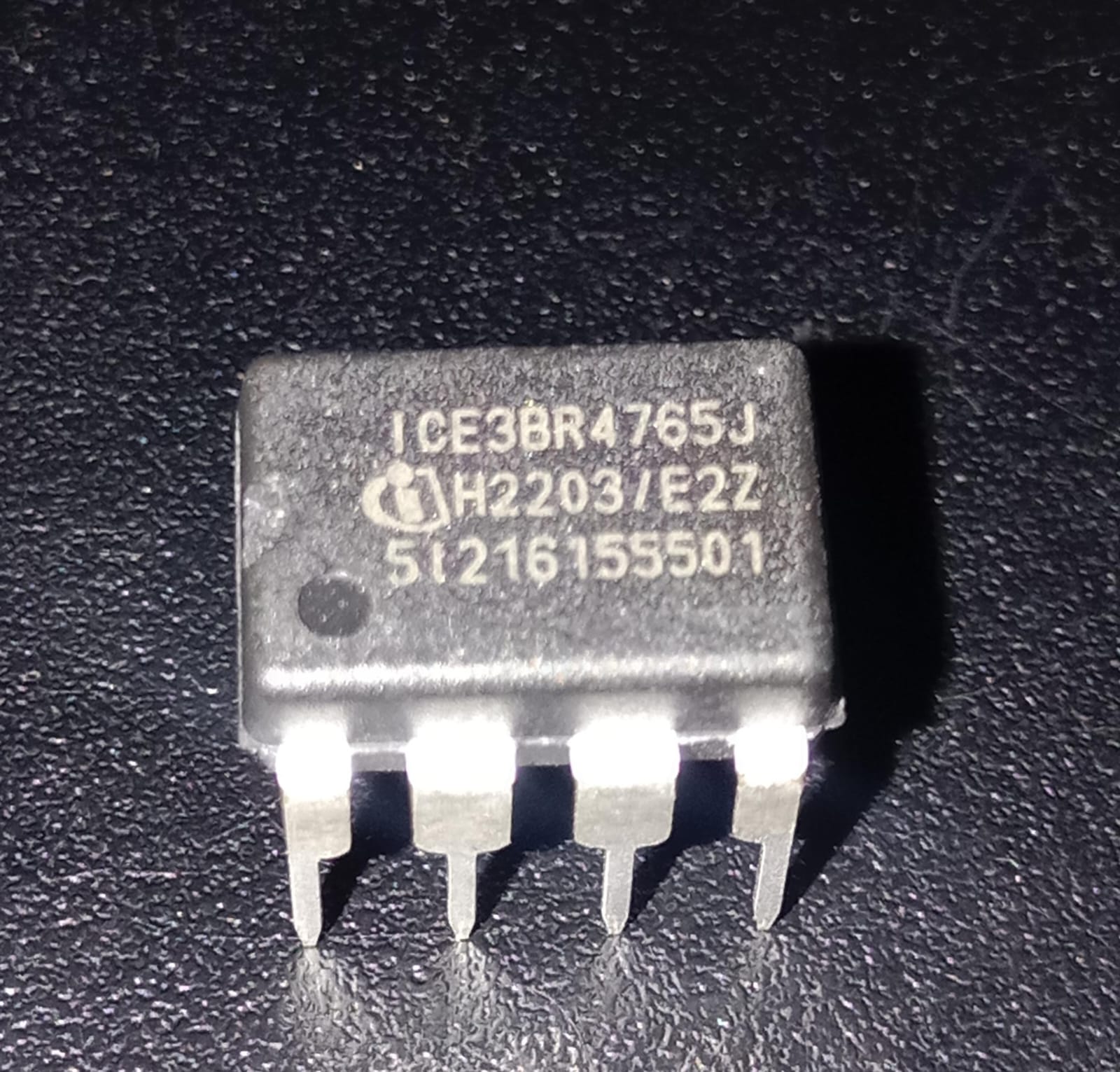

- 1x ICE3BR4765J IC (PG-DIP-8 package)
