Powerful and compact driver board to revive your LCD panel.

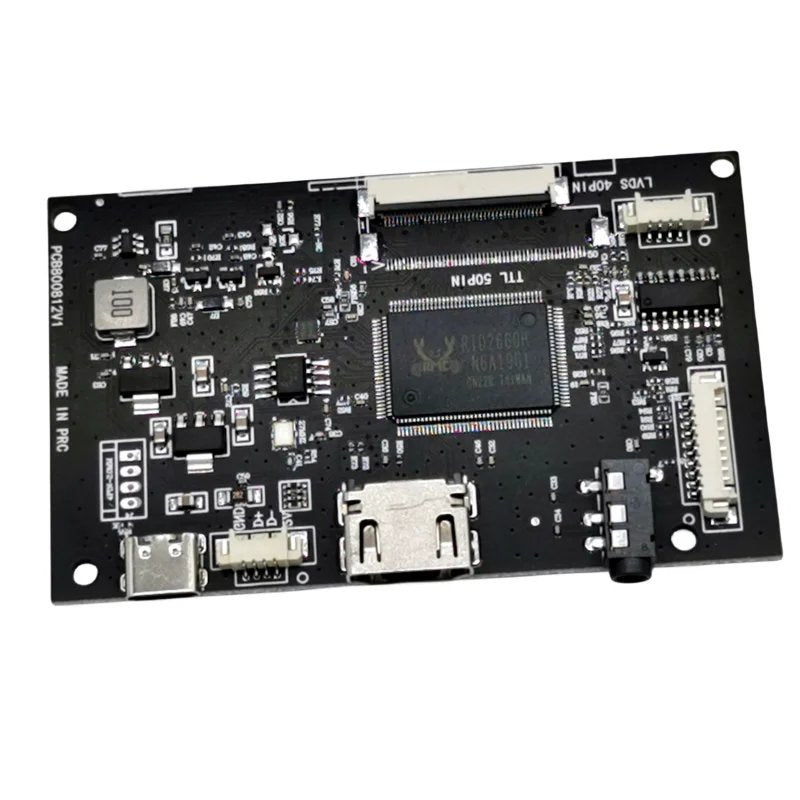

This listing is for the LCD Controller Board (PCB) only. It is designed to drive the HJ101NA-02C 10.1-inch IPS LCD panel (and compatible 1280x800 screens). Powered by the versatile Realtek RTD2660H chipset, this board is the core component needed to turn a raw LCD panel into a functional HDMI monitor.

Note: This is a replacement or DIY component. Ribbon cables, keypad boards, and power adapters are sold separately.

Key Features:

• Replacement Part: Ideal for replacing a damaged driver board in an existing setup.

• Broad Compatibility: Specifically programmed for 40-pin LVDS panels like the HJ101NA-02C.

• HDMI Input: Standard HDMI port for easy connection to PCs, Raspberry Pi, and media players.

• Integrated Audio: Features a 3.5mm audio jack and a 4-pin speaker header on-board.

• USB-C Power: Modern 5V DC input via USB Type-C, allowing power from standard phone chargers or power banks.

Technical Specifications:

Interface Layout:

• HDMI: Video Signal Input

• USB Type-C: 5V Power Input

• 3.5mm Jack: Audio Output

• White 4-Pin Socket: Speaker Output (Left/Right)

• White 40-Pin Socket: LVDS Panel Connection

• White Keypad Socket: For OSD Control Board

Package Includes:

• 1x HDMI LCD Controller Board (PCB Only)

Important Note:

• Accessories Not Included: This listing does not include the LVDS ribbon cable, OSD keypad board, or LCD panel. You will need to provide these separately to complete the assembly.

• Compatibility Check: Please ensure your LCD panel model is HJ101NA-02C or electrically equivalent before use to avoid damage.
