HUIDU HD-W63 Specification
Here is the HUIDU HD-W63 Specification to help you know more about HD-W63 Single & dual color Wi-Fi control card overview, tech parameters, features list, Port Definition, Setup Diagram, Dimension chart, Appearance description, etc.
- V1.0 20201210
System Overview

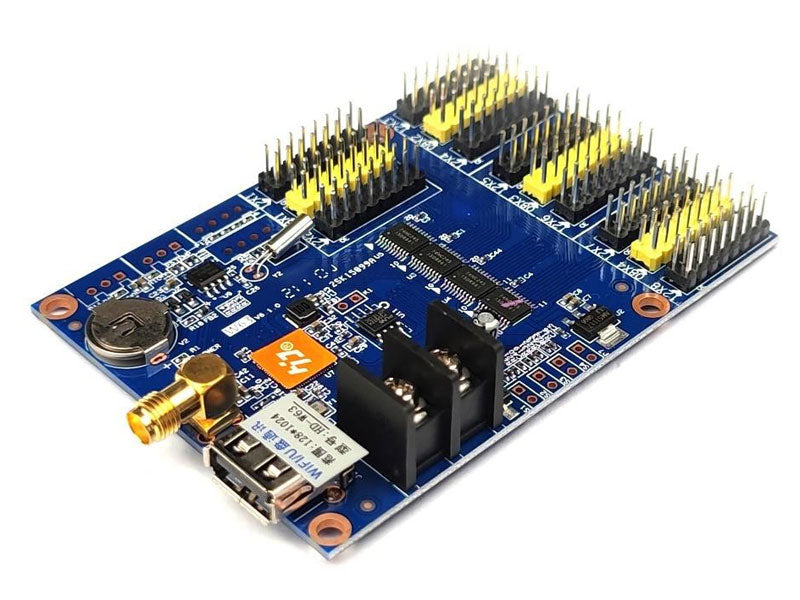

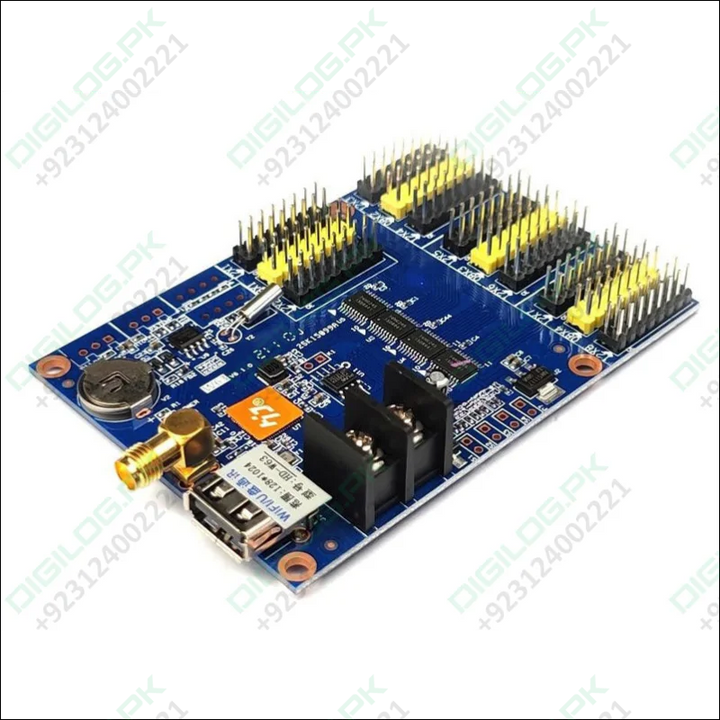

HUIDU HD-W63 is a Wi-Fi control card, updates programs by Wi-Fi connection, it has a USB port，
can also use the U disk to update the program. Low cost, Cost-effective， simple software interface, easy to operate， better display information、good effect， supports various kinds of single-color display.
Working Diagram of Wi-Fi Communication
Features
- 8 groups of HUB12 ports and 4 groups of HUB08 ports
- Supports border function of program and area, also special borders.
- Supports various text effects for meet most application scenarios
- Supports font hollow, stroke and other designs.
- Supports up to 20 areas of program content, free layout.
- Supports external sensors such as temperature, humidity, brightness, IR remote, PM2.5/PM10, etc.
- Support multiple displays such as animated characters, colorful characters, animated backgrounds, etc.
Feature Sheet
| Function | Parameters |
| Loading capacity | Single color:1024W*128H, (widest 2048，highest 128 pixels) |
| FLASH capacity | 4MByte |
| Communication method |
Wi-Fi, U-disk |
| Programs quantity |
1000 |
| Area Quantity | Support MAX 20 areas with separate zone, and separated special effects and border. |
| Program contents |
Supportrunning text, time, count,digit, animation, temperature and humidity,excel, traditional Chinese calendar, offline weather. |
| Playmode | Playin order, switch by button, switch by IR remote. |
| Clockfunction | 1.Support perpetual calendar, analog clock, lunar calendar 2.Counting up and down display 3.The font, font size, color, position, etc. can be set arbitrarily 4.Support multi-time zone display |
| Extended Equipment |
Temperature, humidity, IR remote, brightness, PM2.5/PM10 etc. sensors |
| Screen on/off | Supportscreen on/off bytime automatically |
| Brightness adjustment |
Support 3 modes: adjust by hand, adjust by sensor automatically, adjustbytime automatically. |
| Productpower | 3W |
Dimension parameter for installation
Interface Description
- USB port, to update program content and settings by U-disk.
- Power supply connector, to connect 5V power supply.
- Test button, to test LED module.
- S2/S3/S4 switch ports：S2 can be set as a button for next program,timer starts or count plus; S3 can be set as a button for previous program, timer reset or count down; S4 can be set as a button for program control, time pause, count reset.
- P7, to connect brightness sensor, adjust brightness automatically.
- HUB12/HUB08 port, connect to LED modules by flat cable.
- P5, to connect temperature / humidity sensor.
- P11, IR remote connector, to connect IR remote sensor.
- Wi-Fi antenna port: used to connect with Wi-Fi external antenna.
HUB12/HUB08 Interface Definition
Technical Parameters
| Minimum | Typical | Maximum | |
| Rated voltage(V) | 4.2 | 5.0 | 5.5 |
| Storage temperature(℃) |
-40 | 25 | 105 |
| Work environment temperature(℃) |
-40 | 25 | 80 |
| Work environment humidity (%) |
0.0 | 30 | 95 |
| Net weight（kg） | |||
| Certificate | CE, FCC, RoHS | ||
Precautions
- 1）ensure the system long-term stable running, please keep to use the standard 5V power supply voltage
- 2）Different production batches, color appearance and labels may be different
Statement
This HUIDU HD-W63 Specification is just for reference only, if you have any problems during using this Single & dual color Wi-Fi control card or have any questions about this datasheet, please contact the HUIDU tech department.
