Home ALL Products HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card
2ft Braid Solder Remover Wick 0.75M 2.0 mm Desoldering Copper Spool Wire Back to ALL Products MB102 Breadboard 830 Points Solderless Prototyping Breadboard High Quality

Sidebar

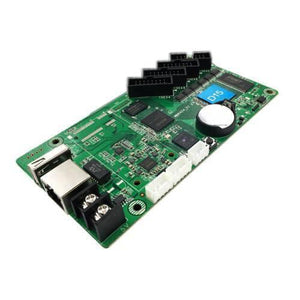

HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - a green rectangular circuit board featuring four black HUB75 ports, an Ethernet port, and a battery.

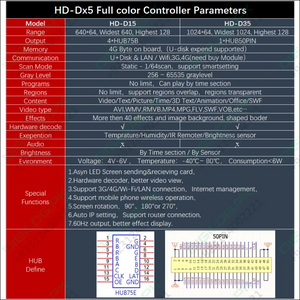

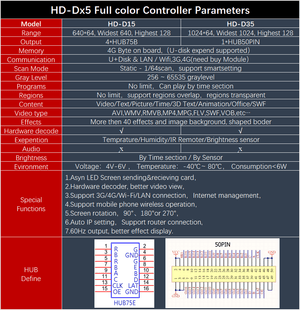

HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - technical specification chart comparing HD-D15 and HD-D35 models with HUB75E and 50PIN interface pinout diagrams.
HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - a green rectangular circuit board featuring four black HUB75 data ports, a silver USB port, and a round coin battery.
HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - a green rectangular circuit board featuring four black HUB75 ports, an Ethernet port, and a battery.
HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - technical specification chart comparing HD-D15 and HD-D35 models with HUB75E and 50PIN interface pinout diagrams.
HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - a green rectangular circuit board featuring four black HUB75 data ports, a silver USB port, and a round coin battery.

HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card

Sale price Rs 9,580
SKU: B642
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - a green rectangular circuit board featuring four black HUB75 ports, an Ethernet port, and a battery.

HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card - a green rectangular circuit board featuring four black HUB75 ports, an Ethernet port, and a battery.
HD-D15 Asynchronous Full Color LED Display Control Card 4*HUB75 Data Interface RGB ,384x64 Pixels,small Size Screen Control Card
Sale priceRs 9,580

Small LED screen control card

HD-Dx5 is a high-performance small-screen dedicated control card such as door screen, car screen, signboard screen, etc. It has 4 GB storage space onboard, supports 1080P HD video hard decoding, 60 Hz frame rate output, and supports 4 000 Internet remote cluster control.

Model： HD-D15/D35

Control range：640*64/1024*64

Memory：4GB

Audio output： no

High-performance strip video screen controller

D15（640*64, 4 lines HUB75E）

 D35（1024*64）

Door lintel full color, taxi roof, bus AD screen controller. ARM A9 CPU, hardware video decoding.

4GB Memory, more than 4 hours.

Do the best effect of strip full-color display controller

Focus on video, animation, the effect is more dazzling. Support hardware video decoding. Support Wi-Fi, 4G module. Operate by PC/APP/cloud platform. Anytime and anywhere multiple displays management

Hd-d15 Asynchronous Full Color Led Display Control Card



Hd-d15 Asynchronous Full Color Led Display Control Card
