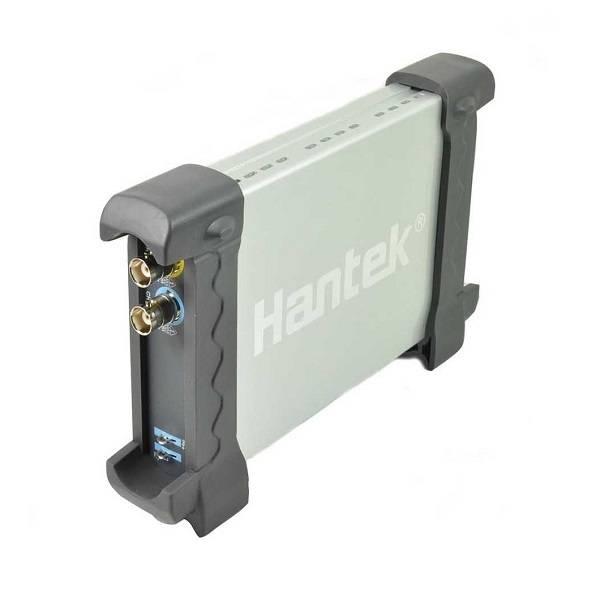

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel Ht6022be

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel Ht6022be

Regular price Rs 10,000
Regular price Sale price Rs 10,000
Sale Sold out
Shipping calculated at checkout.

SKU:Krt73

NOTIFY ME WHEN IN STOCK

Features:

  • An excellent industrial design-the same anodized aluminum casing as iPod, Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
  • USB2.0 interface, no external power source required, easy to use.
  • Be suitable for notebook computer, product line maintenance, be used easily on business.
  • Operating System: Windows 8, Windows NT, Windows 2000, Windows XP, VISTA.
  • 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
  • Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
  • Save waveform in the following: text file, jpg/BMP graphic file, MS excel/word file.
  • One computer can connect many DSO, and extend channels easily.
  • Labview\VB\VC Second Design instance.

Specifiactions:

  1. Channel: 2 Channels
  2. Bandwidth: 20MHz
  3. Input Impedance: 1MΩ 25pF
  4. Coupling: DC
  5. Max. Sample rate: 48MSa/s
  6. Vertical resolution: 8Bit
  7. DC accuracy: ±3%
  8. Vertical adjustable: Yes
  9. Input protection: Diode clamping
  10. X-Y: Yes
  11. Trigger Mode: Auto, Normal and Single
  12. Trigger Slope: +/-
  13. Trigger level adjustable: Yes
  14. Trigger Type: Yes
  15. Trigger Source: CH1, CH2
  16. Pre/Post trigger: 0-100%
  17. Sampling selection: Yes
  18. Waveform Display: port/line, waveform average, persistence, intensity
  19. Network: Open/Close
  20. Vertical mode: CH1, CH2, Dual,
  21. Cursor measurement:  Yes
  22. Math: FFT, addition, subtraction, multiplication, division.
  23. Cursor: Frequency, Voltage
  24. Accessories: S/W CD, probes, manual, USB cord

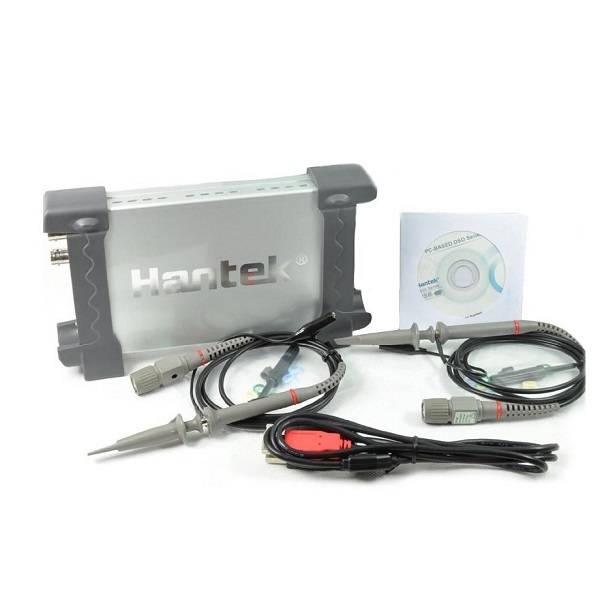

Package Includes:

  • 1 x Hantek PC Based USB Digital Storage Oscilloscope HT6022BE (20MHz)

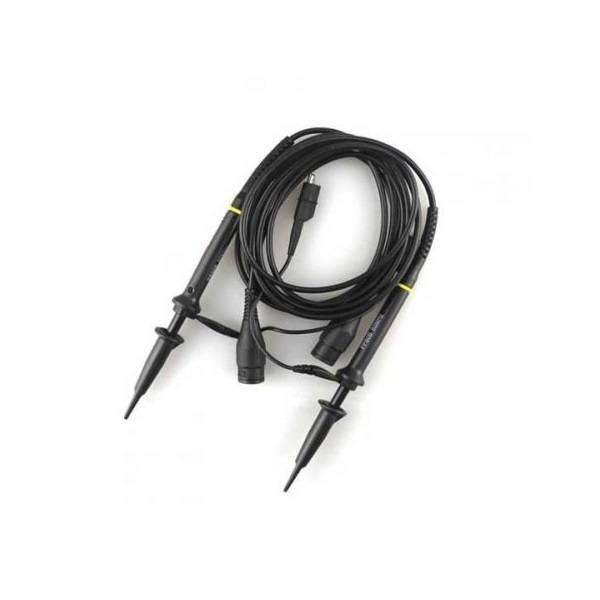

  • 2 x Oscilloscope Probe

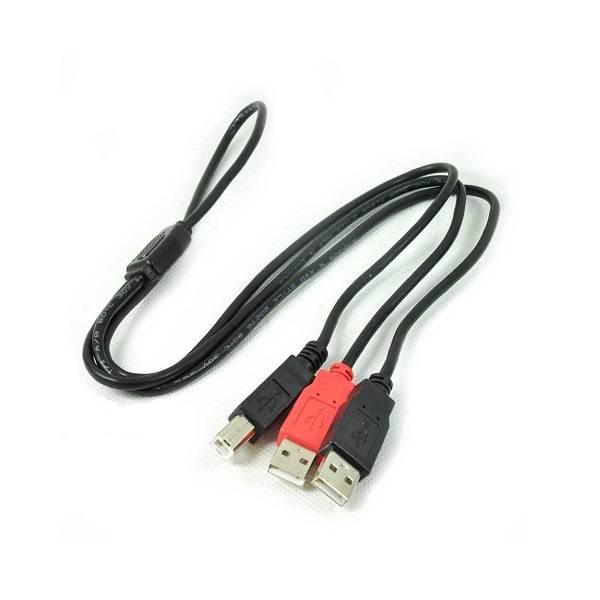

  • 1 x USB Cable
  • 1 x CD (Manual etc.)

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel

Hantek 20mhz Pc Based Digital Oscilloscope Dual 2 Channel

View full details
