Gy-87 Gy87 Gy-87 Imu Mpu6050 Hmc5883l Bmp085 Module With Arduino 10dof

Gy-87 Gy87 Gy-87 Imu Mpu6050 Hmc5883l Bmp085 Module With Arduino 10dof

Regular price Rs 1,800
Regular price Sale price Rs 1,800
Sale Sold out
Shipping calculated at checkout.

SKU:B816,DELL

NOTIFY ME WHEN IN STOCK

GY-87 IMU module is a very high accuracy module compared to similar models such as MPU9250 and can provide acceleration, change of angle and strength of the magnetic field in three axes x, y and z. This module is actually a combination of 3 sensors. MPU6050, HMC5883L and a barometric temperature and pressure sensor. The barometric temperature and pressure sensor can be either BMP180 or BMP085. The communication protocol is I2C.

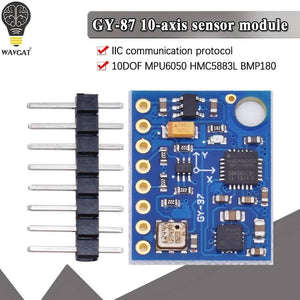

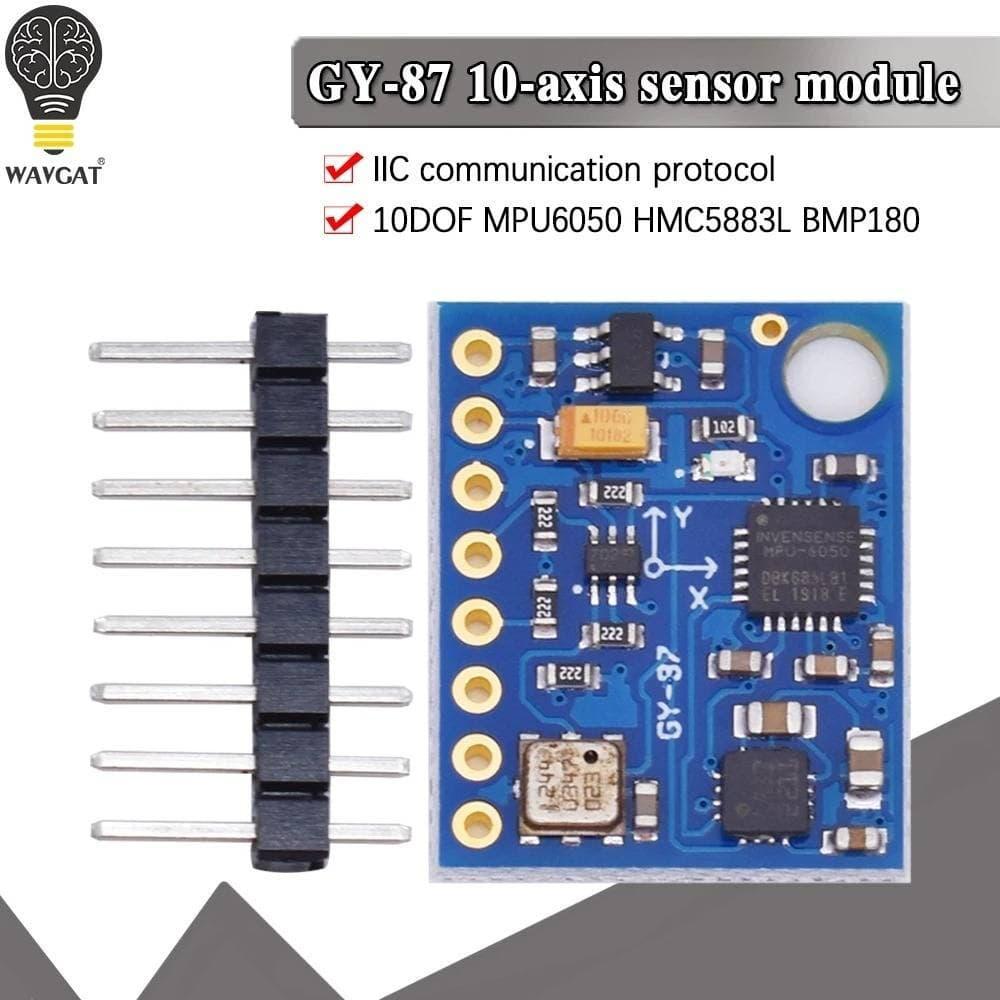

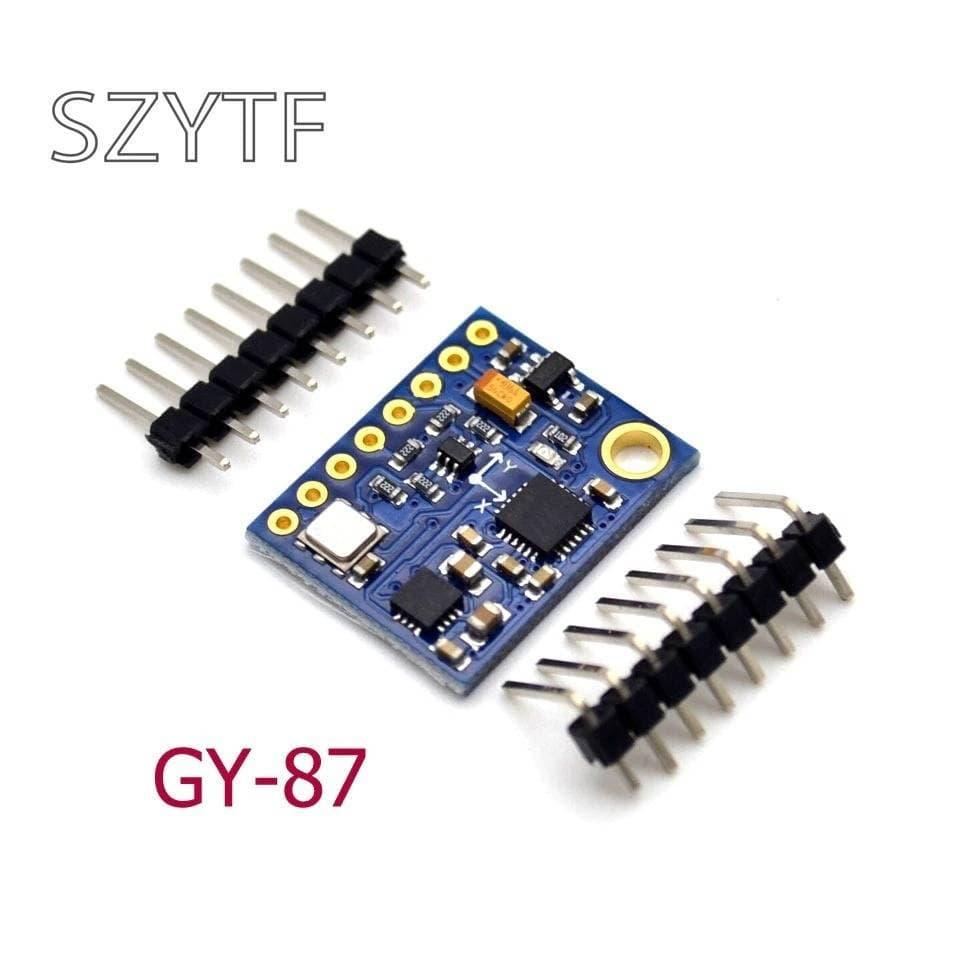

GY-87 Sensor

GY-87 Module Pinout

This module has 8 pins:

  • VCC_IN: Module power supply – 5V
  • 3V: Module power supply – 3.3V
  • GND: Ground
  • SCL: Serial Clock for I2C protocol
  • SDA: Serial Data for I2C protocol
  • FSYNC: Synchronous digital input (I2C speed setting)
  • INTA: MPU6050 IC interrupt pin
  • DRDY: Data ready pin for HMC5883L IC

GY-87-Pin

GY-87 Module Arduino circuit
