Description

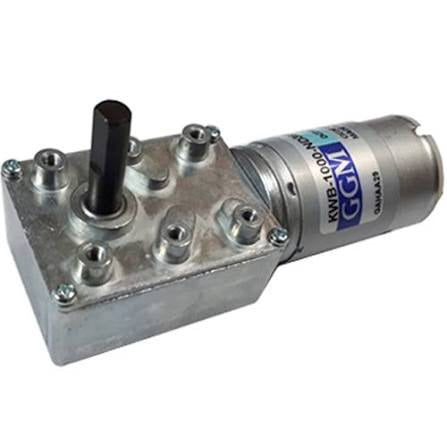

The GGM KWB-1000 is a DC worm gear (right-angle) geared motor, combining a 24V DC brushed motor with a compact worm-drive gearbox to deliver high torque output through a space-saving right-angle shaft configuration. It's built for applications that need reliable, low-speed, high-torque motion in a compact footprint.

Running on a 24V DC supply with a base motor speed of 5000 RPM, the worm gear reduction inside the KWB-1000 steps this down to a much lower, more usable output speed while multiplying torque — a typical trait of worm gear drives, which also offer natural self-locking characteristics that resist back-driving from the output side. This makes the motor well suited for positioning, holding, and load-bearing applications where the mechanism needs to stay put without power applied.

Housed in a robust metal gearbox casing with multiple mounting holes, the KWB-1000 is easy to integrate into machinery, automation equipment, and other mechanical assemblies requiring a compact, geared DC drive solution.

Key Specifications

• Series: GGM KWB-1000
• Voltage: DC 24V
• Motor Speed (pre-reduction): 5000 RPM
• Gear Type: Worm gear, right-angle output
• Housing: Metal gearbox with mounting holes
• Output Shaft: Perpendicular (right-angle) to motor axis

Common Applications

• Automated machinery and conveyor systems
• Valve actuators and positioning mechanisms
• Robotics and low-speed, high-torque motion control
• Vending machines, packaging equipment, and industrial automation
• Applications requiring self-locking gear output (no back-drive under load)

Package Includes

• 1 x GGM KWB-1000 DC24V Worm Gear Motor
