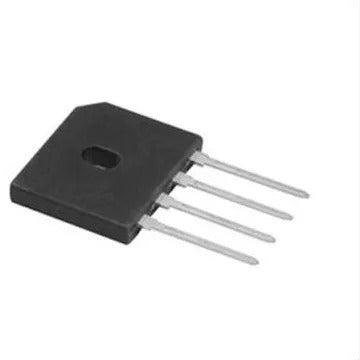

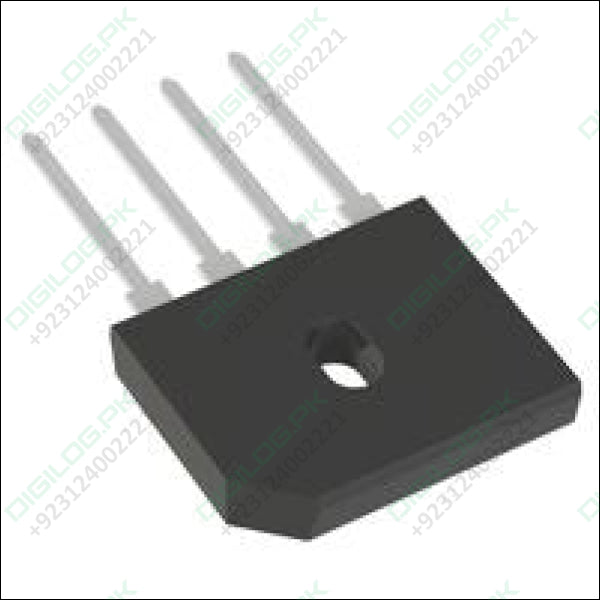

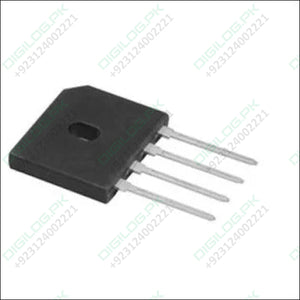

The GBU10 Bridge Rectifier is a high-performance single-phase rectifier designed to convert AC input to DC output efficiently. With a reverse voltage rating of 800V and a forward current capacity of 10A, this rectifier is ideal for inverters, power supplies, UPS systems, and battery chargers.
Built in a durable GBU package, the GBU810 offers excellent heat dissipation and stable operation under high load, making it a trusted choice for technicians, engineers, and DIY electronics enthusiasts across Pakistan.
✅ Key Features:
-
Single-phase full bridge rectifier
-
800 V reverse voltage, 10A forward current
-
GBU package for efficient thermal performance
-
Low forward voltage drop for high efficiency
-
Ideal for power supply, inverter, and charger applications
📊 Technical Specifications:
| Specification | Value |
|---|---|
| Product Model | GBU810 |
| Type | Single-Phase Bridge Rectifier |
| Reverse Voltage (VRRM) | 800 V |
| Forward Current (IF) | 10 A |
| Peak Surge Current (IFSM) | 200 A |
| Package Type | GBU |
| Mounting | Through-Hole |
| Polarity | Standard single-phase |
| Applications | Rectification, power conversion, SMPS, chargers |
🧪 Applications:
-
UPS and inverter systems
-
SMPS and power supply units
-
Battery charging circuits
-
Rectification and AC to DC conversion
-
Industrial and DIY electronic projects
📦 Package Includes:
-
1 x GBU810 Single Phase Bridge Rectifier 800v 10a
