Description

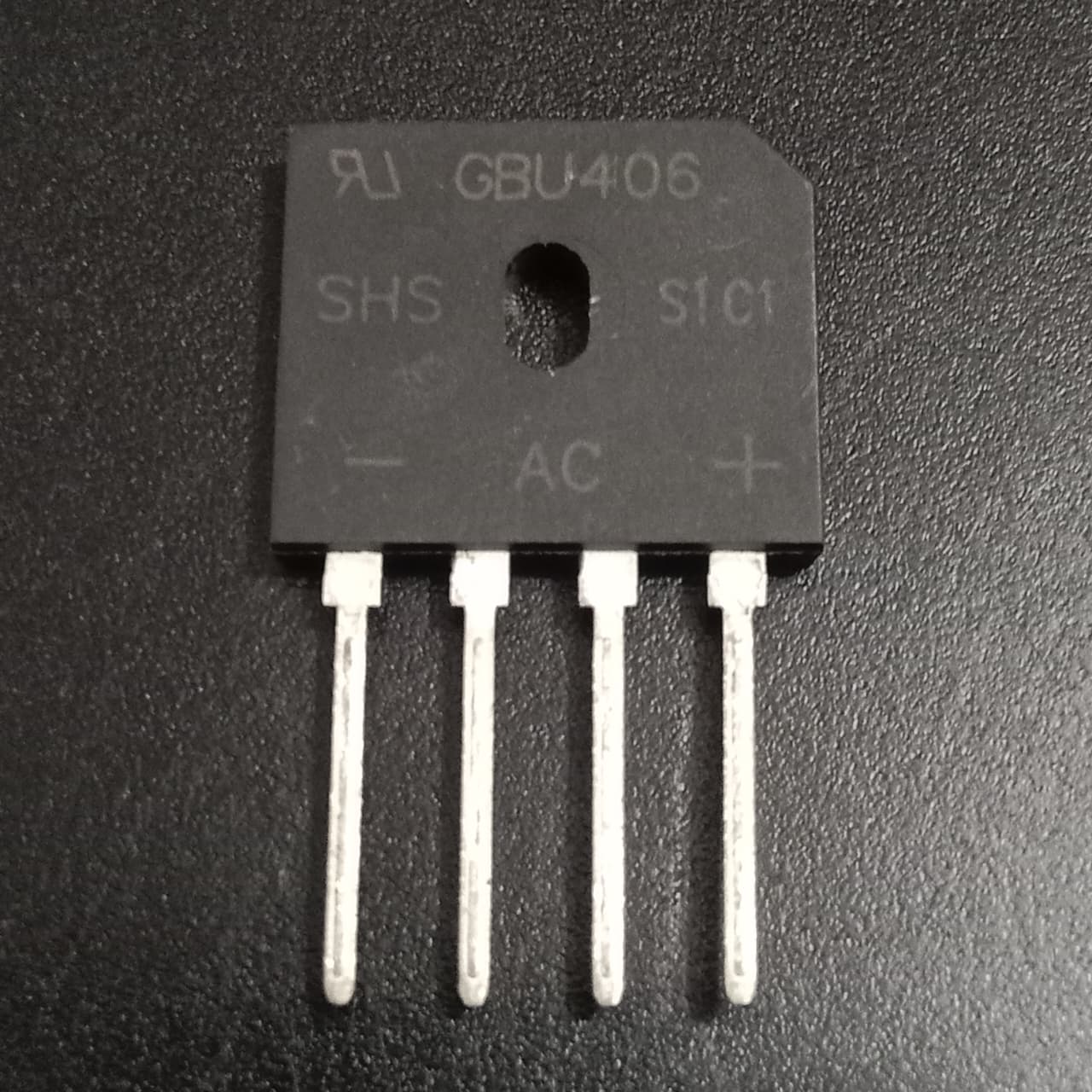

The GBU406 is a single-phase glass passivated bridge rectifier, rated for 4A average output current and 600V peak repetitive reverse voltage (VRRM), housed in the compact 4-pin GBU through-hole package. It integrates four rectifier diodes in a bridge configuration on a single glass-passivated die, converting AC input into full-wave rectified DC output.

Clearly marked terminals (AC, AC, +, −) make wiring straightforward: the two "AC" pins accept the AC input, while the "+" and "−" pins provide the rectified DC output. With a forward voltage drop of around 1.0–1.1V at rated current and a high surge current capability of up to 150A (IFSM), this rectifier reliably handles inrush current spikes. It's built with a lead-free finish and is RoHS compliant, and carries UL recognition (File No. E94661) for added confidence in safety and build quality.

Its compact, PCB-friendly package and robust construction make the GBU406 a popular choice for power supplies, battery chargers, motor control circuits, and general industrial and consumer electronics requiring reliable full-wave AC-DC rectification.

Key Specifications

• Type: Single-phase bridge rectifier
• Package: GBU-4 (4-pin, through-hole)
• Peak Repetitive Reverse Voltage (VRRM): 600V
• RMS Reverse Voltage: 420V
• Average Forward Rectified Current (IF(AV)): 4.0A
• Forward Voltage (VF): ~1.0–1.1V @ 2–4A
• Surge Current (IFSM): 150A
• Operating Temperature: -55°C to +150°C
• Glass passivated die construction, low reverse leakage current
• Lead-free, RoHS3 compliant; UL recognized (File No. E94661)

Common Applications

• AC-DC power supplies and converters
• Battery chargers
• Motor control circuits
• Industrial automation equipment
• General-purpose consumer electronics rectification

Package Includes

• 1 x GBU406 Bridge Rectifier
