Description

The GBP410 is a single-phase glass passivated bridge rectifier, rated for 4A output current and 1000V peak reverse voltage (VRRM), housed in the compact 4-pin GBP through-hole package. It integrates four rectifier diodes in a bridge configuration on a single glass-passivated chip, converting AC input into full-wave rectified DC output — a fundamental building block for power supply circuits.

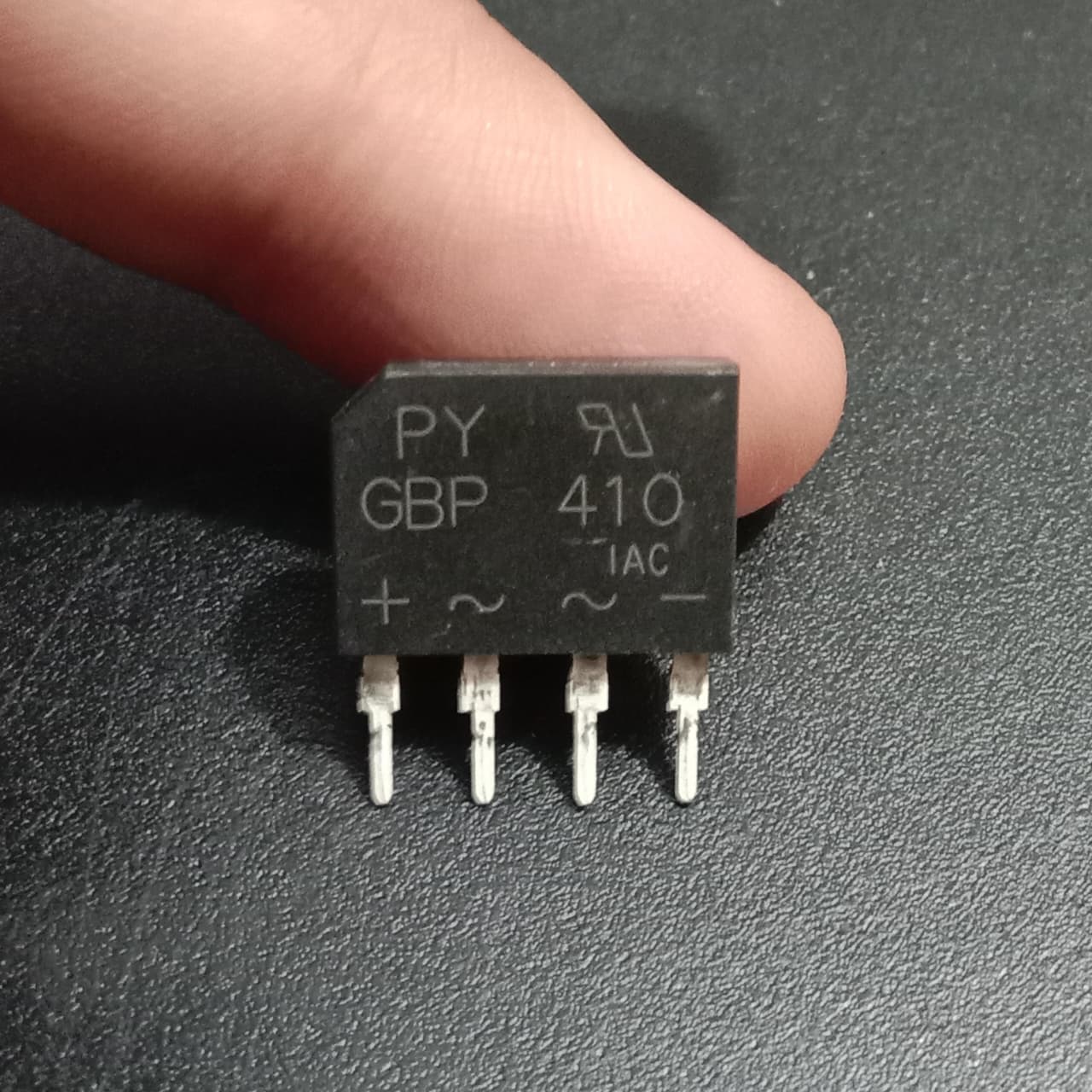

Clearly marked terminals (+, ~, ~, −) make wiring straightforward: the two "~" pins accept the AC input, while the "+" and "−" pins provide the rectified DC output. With a forward voltage drop of around 1.1V and a high surge current capability of up to 135A (IFSM), this rectifier is built to handle inrush current spikes reliably, making it a durable choice for general-purpose AC-DC conversion in a wide range of electronic devices.

Its compact, PCB-friendly package and robust glass-passivated construction make the GBP410 a popular choice for power supplies, battery chargers, motor control circuits, and LED drivers where reliable full-wave rectification is needed.

Key Specifications

• Type: Single-phase bridge rectifier
• Package: GBP (4-pin, through-hole)
• Peak Reverse Voltage (VRRM): 1000V
• Output Current (Io): 4.0A
• Forward Voltage (VF): ~1.1V @ IF = 2.0A
• Surge Current (IFSM): 135A
• Glass passivated chip construction
• High surge forward current capability

Common Applications

• AC-DC power supplies and converters
• Battery chargers (including automotive and UPS systems)
• Motor control circuits in industrial automation and appliances
• LED driver circuits
• General-purpose full-wave AC rectification

Package Includes

• 1 x GBP410 Bridge Rectifier
