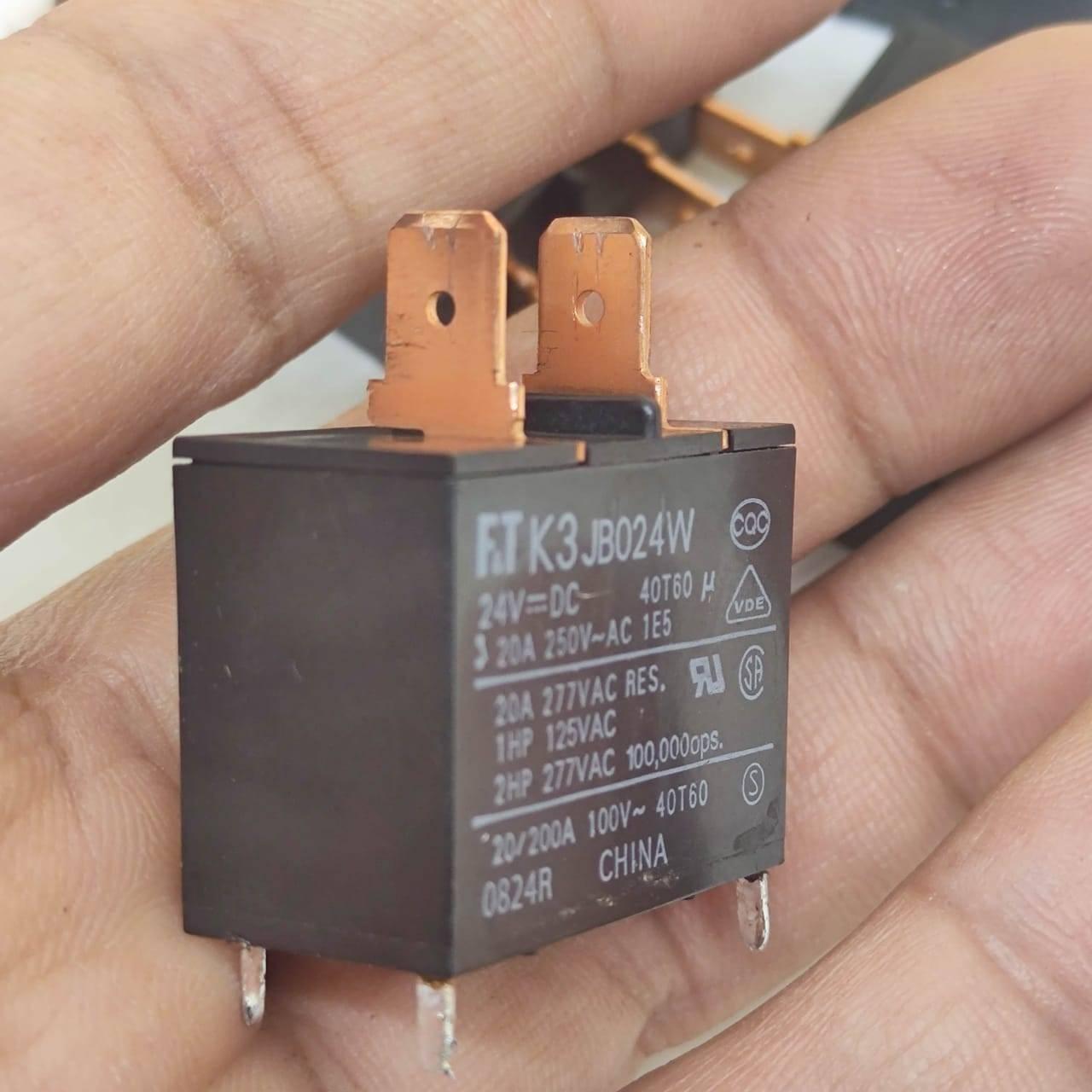

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a black rectangular electronic component with two copper spade terminals held in a hand.

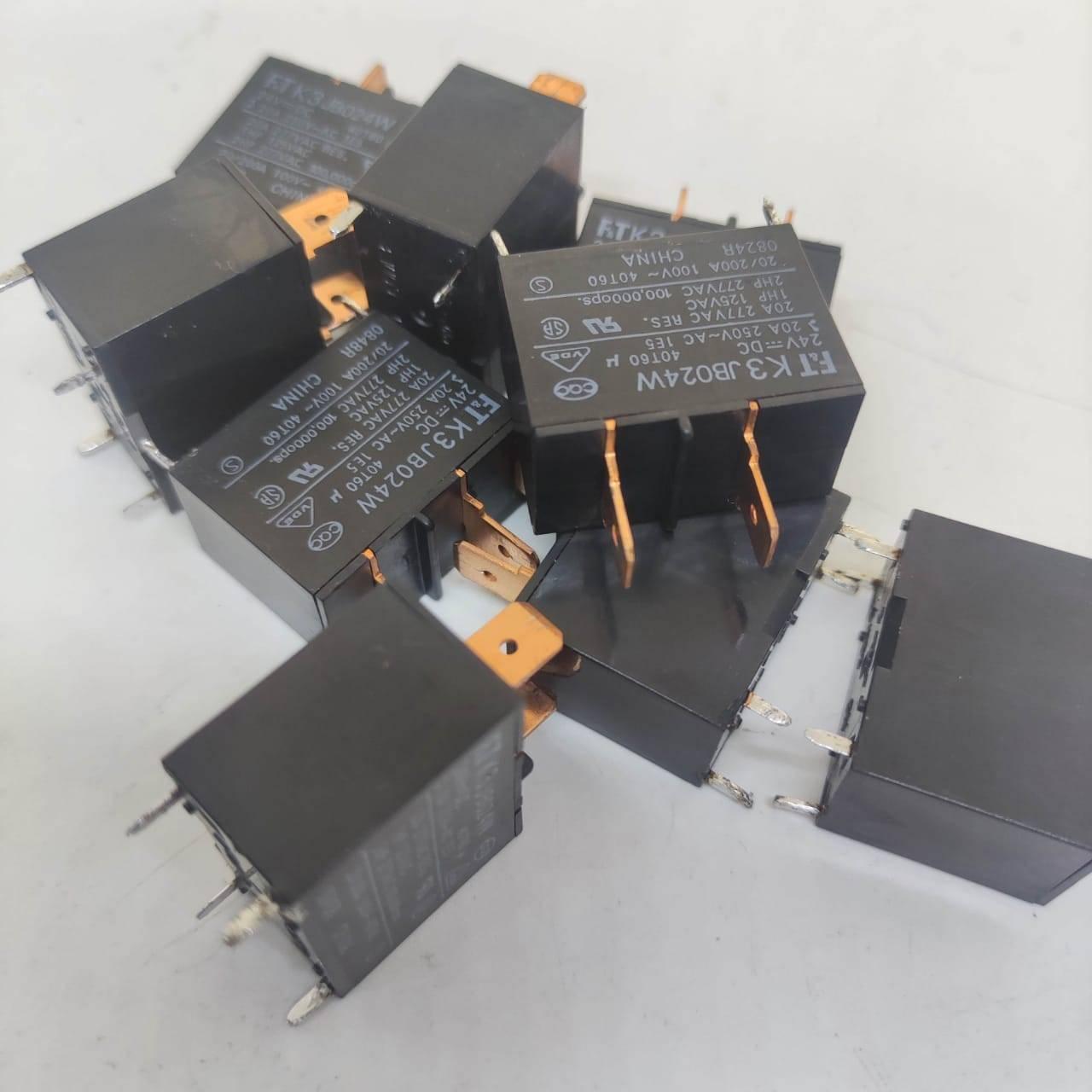

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a pile of several black rectangular power relays with metal contact pins and printed technical specifications.

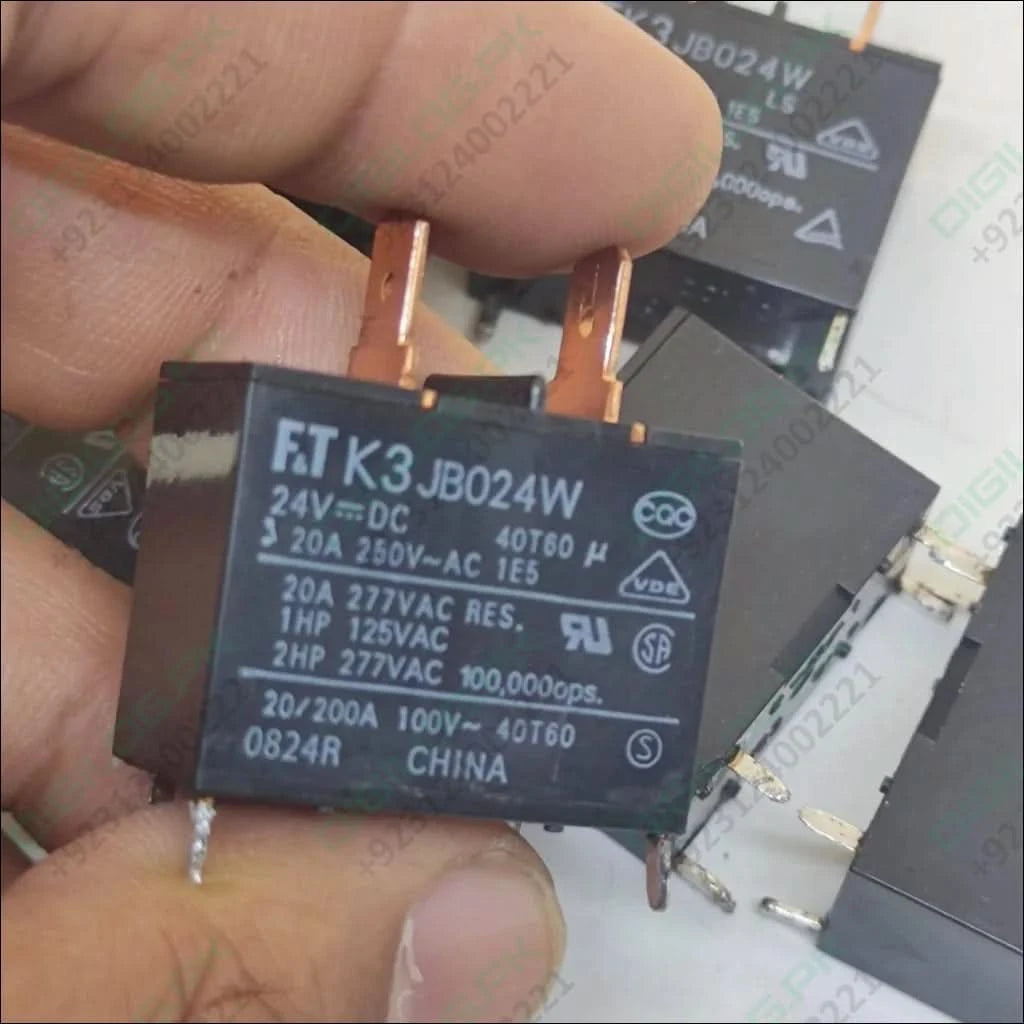

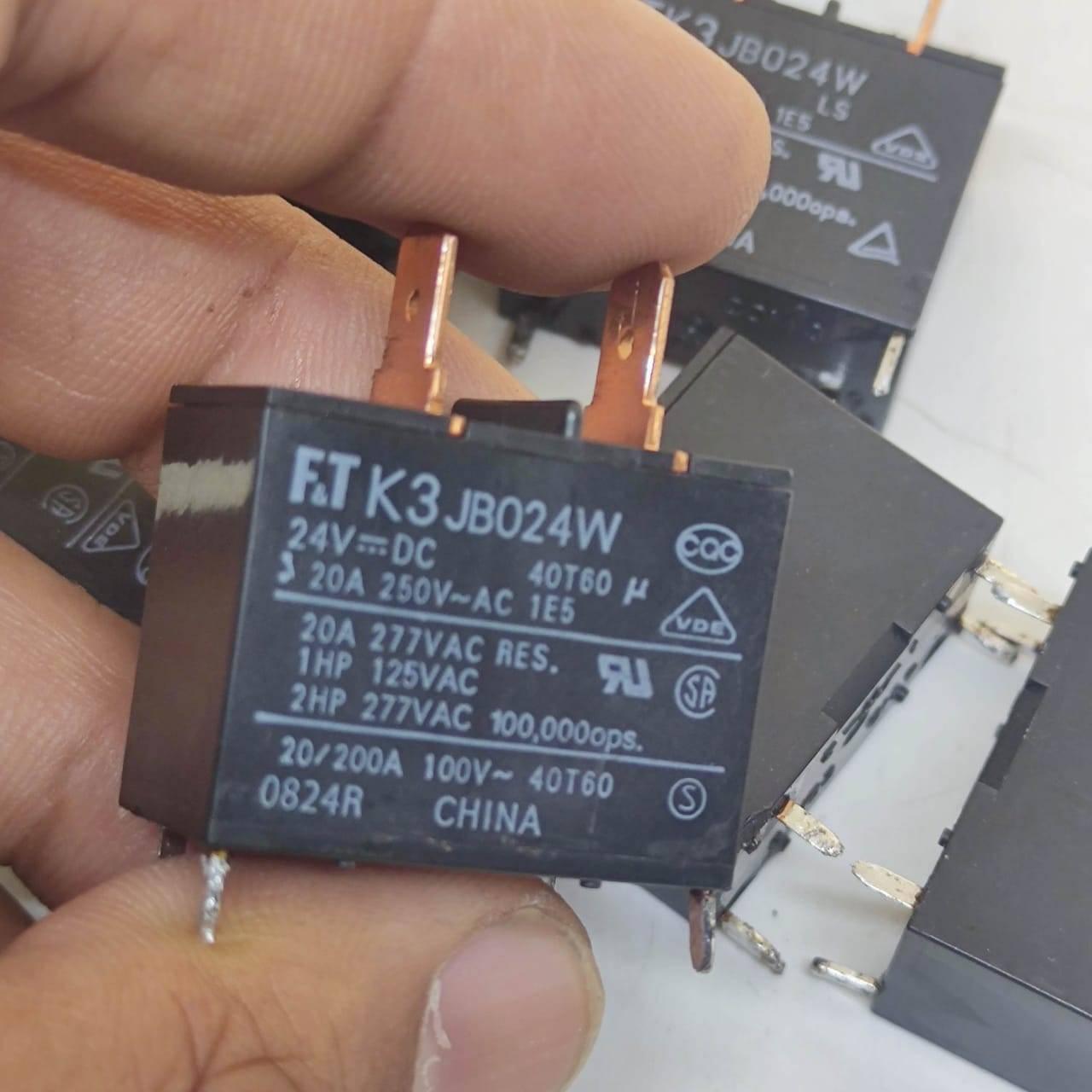

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a black rectangular power relay with metal contact pins held in a hand, showing printed technical specifications.

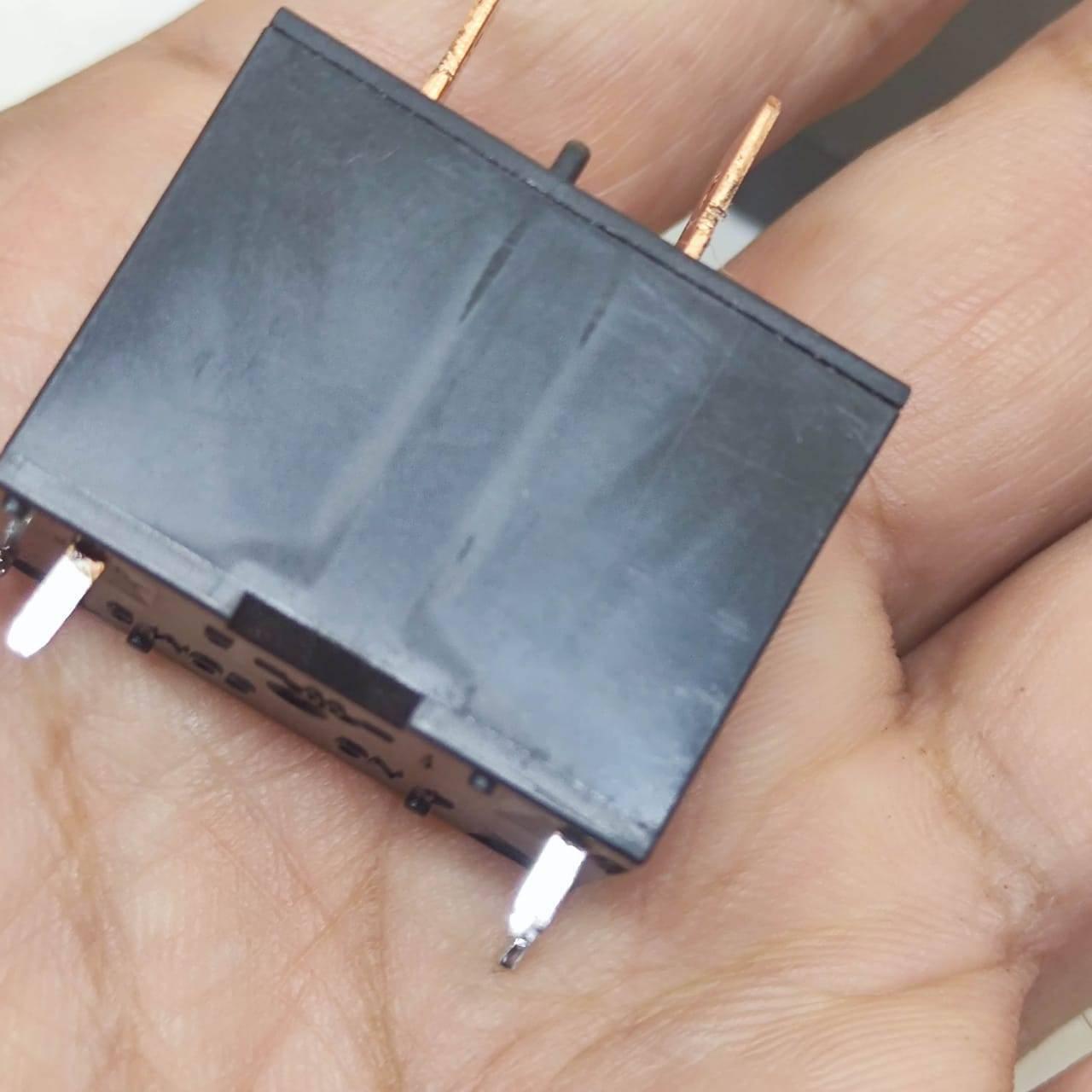

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a black rectangular electronic component with four metallic pins held in a hand.

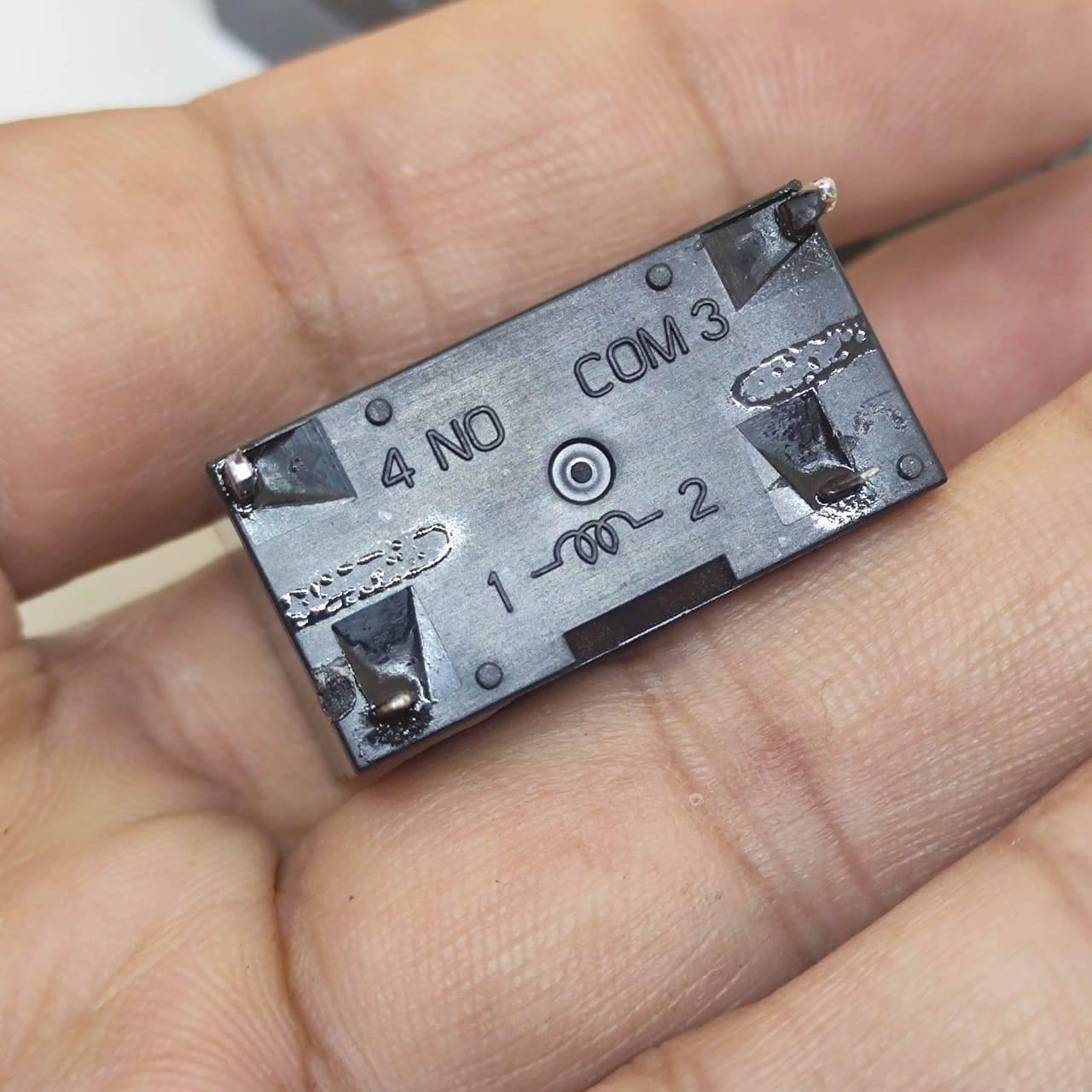

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a close-up view of the black rectangular casing showing terminal labels 4 NO, COM 3, and coil pins 1-2.

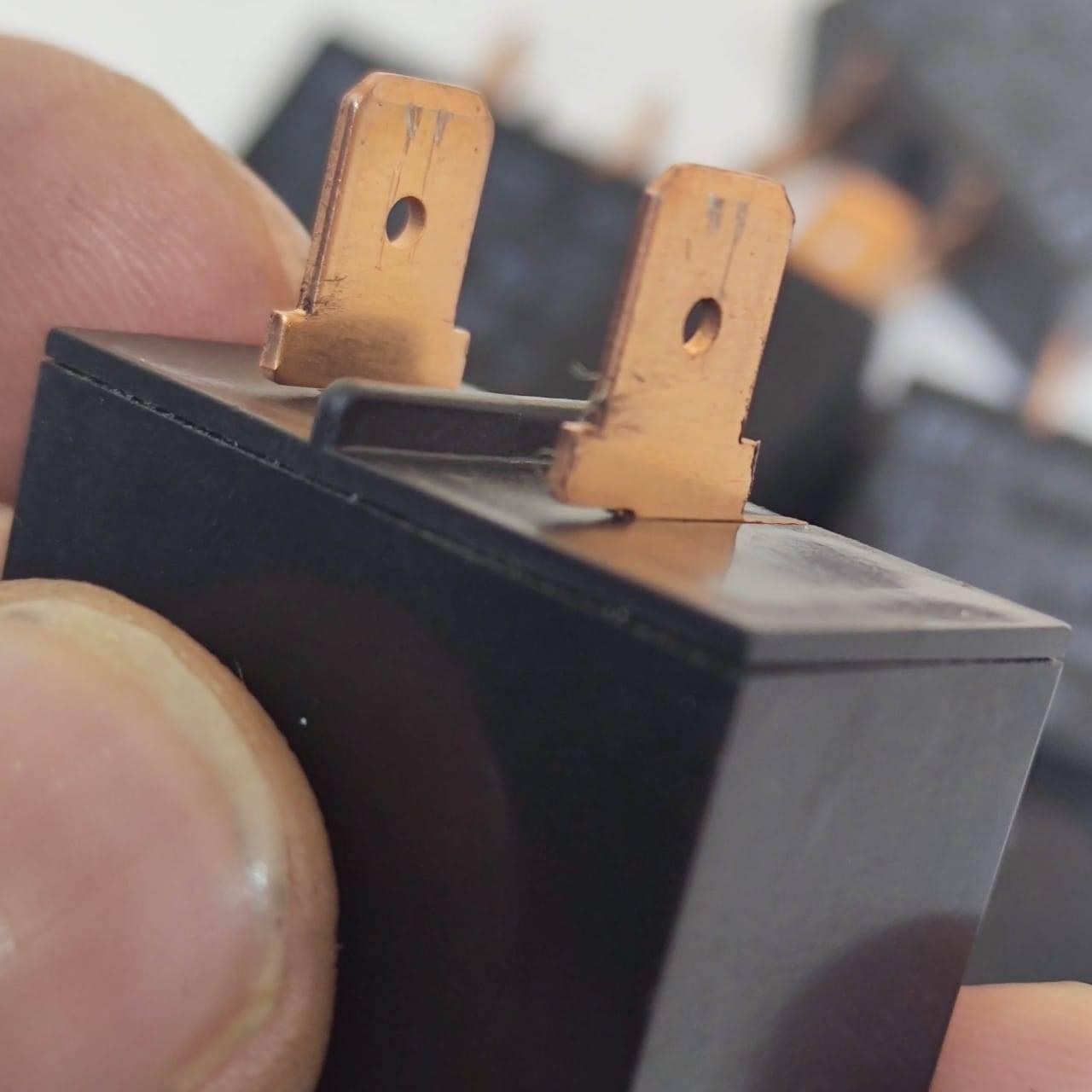

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a close-up view of the black rectangular housing with two copper-colored metal spade terminals on top.

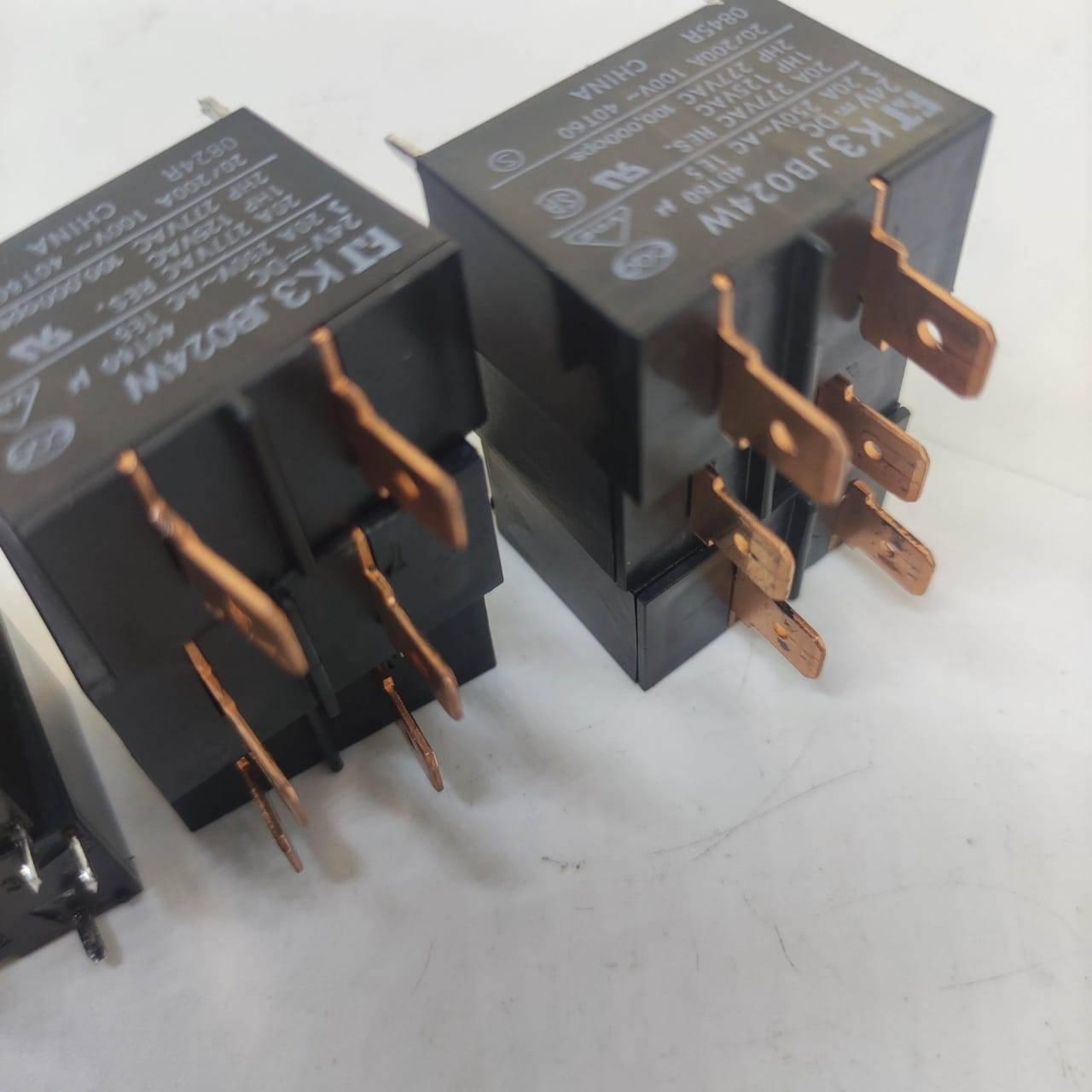

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - two black rectangular power relays with copper-coloured electrical spade terminals.

Sold out

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a black rectangular electronic component with two copper spade terminals held in a hand.

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a pile of several black rectangular power relays with metal contact pins and printed technical specifications.

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a black rectangular power relay with metal contact pins held in a hand, showing printed technical specifications.

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a black rectangular electronic component with four metallic pins held in a hand.

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a close-up view of the black rectangular casing showing terminal labels 4 NO, COM 3, and coil pins 1-2.

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - a close-up view of the black rectangular housing with two copper-colored metal spade terminals on top.

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY - two black rectangular power relays with copper-coloured electrical spade terminals.

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY

Rs 160

SKU: NST

Control your electrical circuits with reliability using this 1-pole power relay. Ideal for a wide range of applications, it offers a 20A contact rating and versatile coil voltage options.

Key Features:

1-pole design
20A contact rating
Coil voltage: 5V-24V
PCB through-hole mounting
TAB terminal type
Low coil power (780mW)
Continuous duty
Cadmium-free contacts
UL, CSA, VDE, CQC, RoHS approved

Specifications:

Contact arrangement: SPST
Input voltage: 250 AC
Contact material: Silver alloy
Current rating: 25A
Size: 15.7 x 23.3 x 23.3 mm
Latching: No
Nominal coil power: 780mW
Coil resistance: 740Ω

Applications:

Industrial control
Home automation
Automotive systems
Electronics

Datasheet: Download

Реле FTR-K3 JB024W (24VDC)

Image 1 - 1pcs new F.T relay JR JB024W
